直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ME80251VX-000U-A99FAN 12VDC 80X80X25MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA80251V4-000U-A99FAN 12VDC 80X80X25MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME92251V2-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 45.0 CFM (1.26m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 32.0dB(A) | 1.6 W | CE, CUR, TUV, UL | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
HA92251V4-000U-A99FAN 12VDC 92X92X25MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME92252VX-000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® ME | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 37.5dB(A) | 2.4 W | CUR, TUV, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109L0812H401FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 2.16 W | CSA, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L0812H402FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 32.0dB(A) | 2.16 W | CSA, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6015BF-235-278-20FAN AXIAL 60X15.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.50mm | 27.8dB(A) | 1.44 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

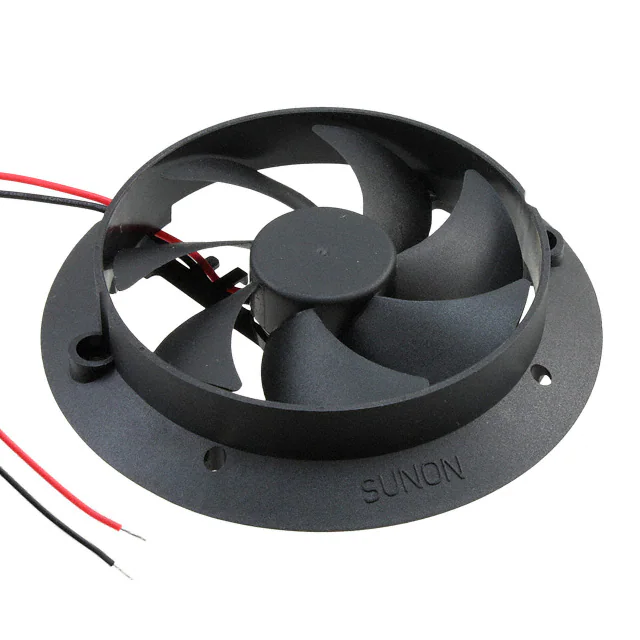

HA60150V3-E02U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 13.2 CFM (0.370m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart | 15.40mm | 16.1dB(A) | 400 mW | CE, CUR, TUV, UL | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

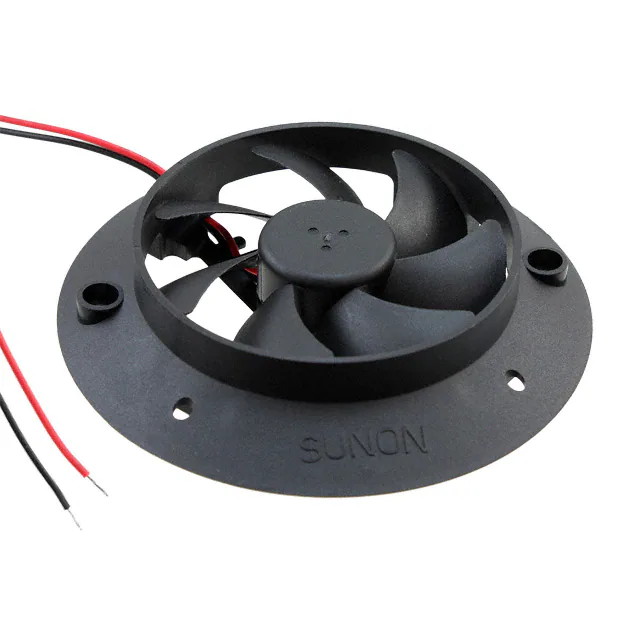

HA60150V3-E03U-A99FAN AXIAL 84.9X15.4MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® HA | Tray | Obsolete | 5VDC | Round - 84.9mm Dia | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 15.40mm | 27.8dB(A) | 260 mW | CE, CUR, TUV, UL | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

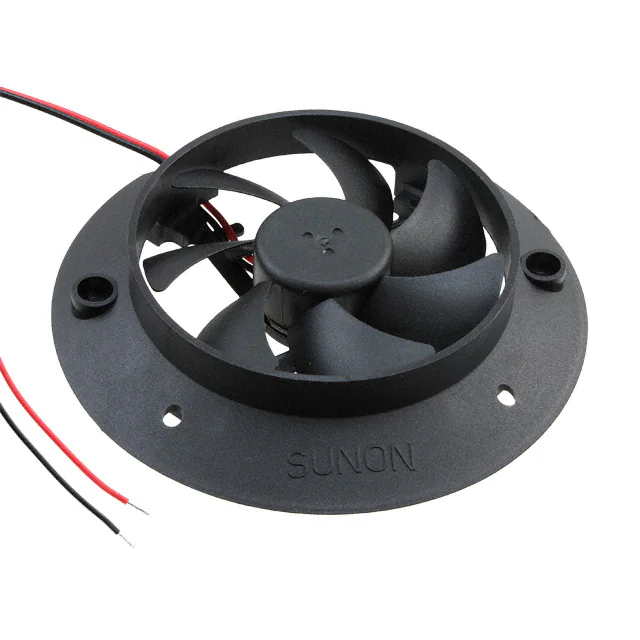

HA60151V3-E00U-A99FAN AXIAL 84.9X15.4MM 12VDC |
0 | - |
|
数据表 |
MagLev® HA | Tray | Obsolete | 12VDC | Round - 84.9mm Dia | 9.7 CFM (0.272m³/min) | 0.034 in H2O (8.5 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 15.40mm | 27.8dB(A) | 280 mW | CE, CUR, TUV, UL | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MB50152V1-000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Vapo-Bearing™ | 0.083 lb (37.65 g) | Tubeaxial | Auto Restart | 15.00mm | 33.0dB(A) | 1.32 W | CE, CUR, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|
|
MB50152V2-000U-A99FAN AXIAL 50X15MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.083 lb (37.65 g) | Tubeaxial | Auto Restart | 15.00mm | 29.0dB(A) | 840 mW | CE, CUR, TUV, UL | 4700 RPM | - | 2 Wire Leads | - |
|
CFM-3010B-180-267-20FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.50mm | 26.8dB(A) | 1.08 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0912M-PM11FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 49.5 CFM (1.39m³/min) | 0.133 in H2O (33.1 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 31.5dB(A) | 1.44 W | CE, CSA, UL, VDE | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
CBM-5015BF-045-348-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 2.9 CFM (0.081m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Blower | Speed Sensor (Tach) | 15.00mm | 34.8dB(A) | 1.05 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-2010CF-1120-217-20DC AXIAL FAN, 20 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 1.1 CFM (0.031m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.30mm | 21.7dB(A) | 960 mW | CE, cURus, TUV | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FN-PX08-16SILENT 8 BLACK |
0 | - |
|
数据表 |
FN | Active | 12VDC | Square - 80mm L x 80mm H | 21.0 CFM (0.588m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | - | Tubeaxial | - | 25.00mm | 18.9dB(A) | 960 mW | - | 1600 RPM | - | 3 Position Rectangular Connector | - | |
|
CFM-7020V-226-360-20FAN AXIAL 70X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 23.5 CFM (0.658m³/min) | 0.090 in H2O (22.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 26.0dB(A) | 1.23 W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-7020V-232-330-20FAN AXIAL 70X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 33.0dB(A) | 1.83 W | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
