直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80252V2-1000U-F9924VDC FAN 80X25MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 1.2 W | CCC, CE, cURus, TUV, UKCA | 2900 RPM | - | 3 Wire Leads | - |
|
|
MF80252V3-1000U-F9924VDC FAN 80X25MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 0.96 W | CCC, CE, cURus, TUV, UKCA | 2600 RPM | - | 3 Wire Leads | - |
|
|
MF80252V1-1000U-F9924VDC FAN 80X25MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 1.56 W | CCC, CE, cURus, TUV, UKCA | 3200 RPM | - | 3 Wire Leads | - |
|
|
HAC0251S4-1000U-C9912VDC FAN 120X25MM TACH |
0 | - |
|
数据表 |
HA | Box | Active | 12VDC | Square - 120mm L x 120mm H | 55.0 CFM (1.54m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 28.8dB(A) | 1.06 W | CCC, CE, cURus, TUV, UKCA | 1600 RPM | - | 3 Wire Leads | - |
|
|
08025SS-12N-EL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB | 1.92 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24Q-ET-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 55.3 CFM (1.55m³/min) | 0.273 in H2O (68.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 39.5dB | 5.04 W | - | 4100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24N-AT-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB | 2.16 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24M-ET-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 26.0dB | 1.68 W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SS-24M-EL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 26.0dB | 1.68 W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SS-24Q-AL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 55.3 CFM (1.55m³/min) | 0.273 in H2O (68.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 39.5dB | 5.04 W | - | 4100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-12N-AL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB | 1.92 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24N-AL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 30.0dB | 2.16 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24L-EL-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 22.0dB | 1.2 W | - | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
08025SS-12N-ET-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.7 CFM (1.17m³/min) | 0.151 in H2O (37.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 30.0dB | 1.92 W | - | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
08025SS-24L-ET-D0DC AXIAL FAN |
0 | - |
|
数据表 |
08025SS | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.7 CFM (0.860m³/min) | 0.086 in H2O (21.5 Pa) | Sleeve | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 22.0dB | 1.2 W | - | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF30060V1-1000U-H995VDC FAN 30X6MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 6.00mm | 23.6dB(A) | 0.56 W | CCC, CE, cURus, TUV, UKCA | 9100 RPM | - | 3 Wire Leads | - |
|

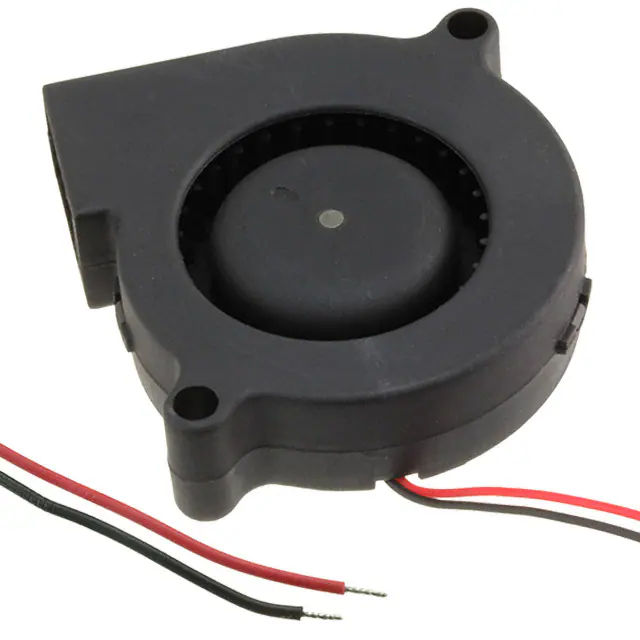

BFB0512LFAN BLOWER 51.3X15MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Obsolete | 12VDC | Square/Rounded - 51.3mm L x 51mm H | 2.5 CFM (0.070m³/min) | 0.276 in H2O (68.7 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection | 15.00mm | 26.5dB(A) | 840 mW | CE, CSA, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0405MDFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
EFB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 24.0dB(A) | 750 mW | CE, CSA, UL, VDE | 6300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
W3G300-BV24-01FAN AXIAL 330X76.5MM 26VDC RECT |
0 | - |
|
数据表 |
W3G300 | Bulk | Obsolete | 26VDC | Round - 330mm Dia | 1512.0 CFM (42.34m³/min) | - | Ball | 4.4 lbs (2 kg) | Tubeaxial | PWM Control | 76.50mm | - | 205 W | - | 3160 RPM | -40 ~ 203°F (-40 ~ 95°C) | 6 Position Rectangular Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
MF30060V2-1000U-H995VDC FAN 30X6MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 6.00mm | 15.7dB(A) | 0.36 W | CCC, CE, cURus, TUV, UKCA | 7100 RPM | - | 3 Wire Leads | - |
