直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3G300-BV25-21FAN AXIAL 330X76.5MM 26VDC RECT |
0 | - |
|
数据表 |
W3G300 | Bulk | Obsolete | 26VDC | Round - 330mm Dia | 1897.0 CFM (53.12m³/min) | - | Ball | 4.4 lbs (2 kg) | Tubeaxial | PWM Control | 76.50mm | - | 380 W | - | 3940 RPM | -40 ~ 185°F (-40 ~ 85°C) | 6 Position Rectangular Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|

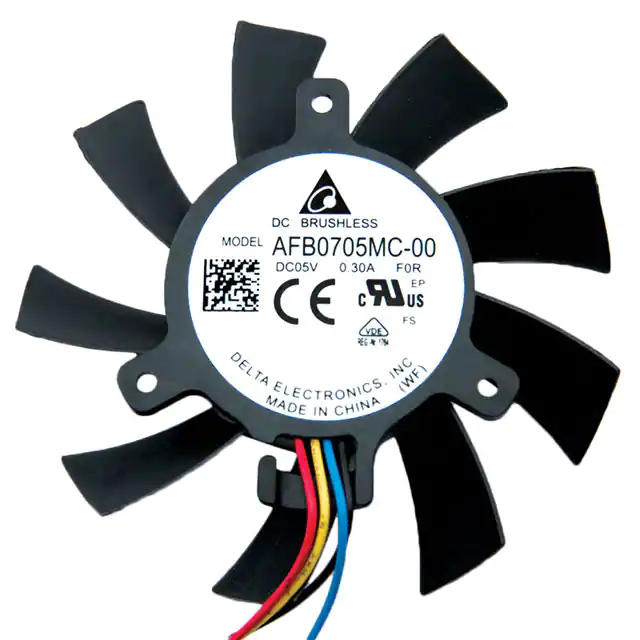

AFB0705MC-00F0RFAN AXL FRAMELSS 65.8X13MM 5VDC |
0 | - |
|
数据表 |
AFB - Frameless | Box | Active | 5VDC | Round - 65.8mm Dia | 22.1 CFM (0.619m³/min) | 0.093 in H2O (23.2 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial, Frameless | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 13.00mm | 28.1dB(A) | 1.1 W | CE, cURus, TUV | 2900 RPM | 32 ~ 158°F (0 ~ 70°C) | 4 Wire Leads | - |
|

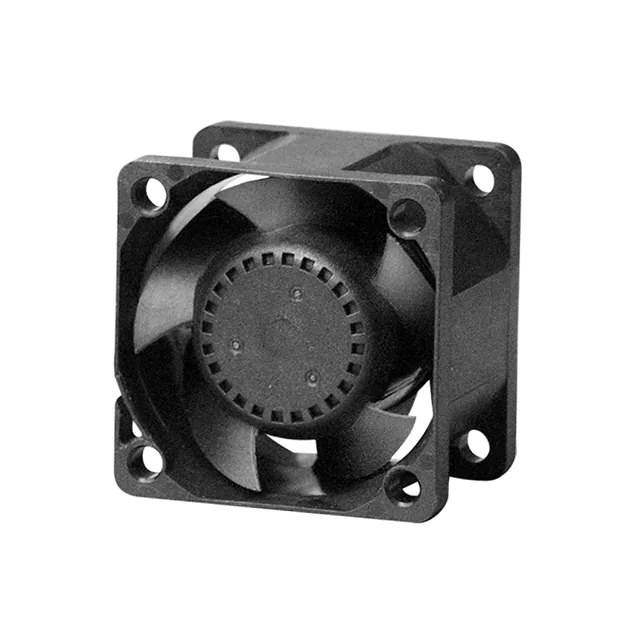

PF38281B1-000U-S99FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 28.00mm | 51.8dB(A) | 3.78 W | CE, CUR, TUV, UL | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PF38281B1-000U-Q99FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 28.00mm | 51.8dB(A) | 3.78 W | CE, CUR, TUV, UL | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PF38281B1-000U-F99FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 51.8dB(A) | 3.78 W | CE, CUR, TUV, UL | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PF38281B1-000U-H99FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | 0.091 lb (41.28 g) | Tubeaxial | Auto Restart, PWM Control | 28.00mm | 51.8dB(A) | 3.78 W | CE, CUR, TUV, UL | 16000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

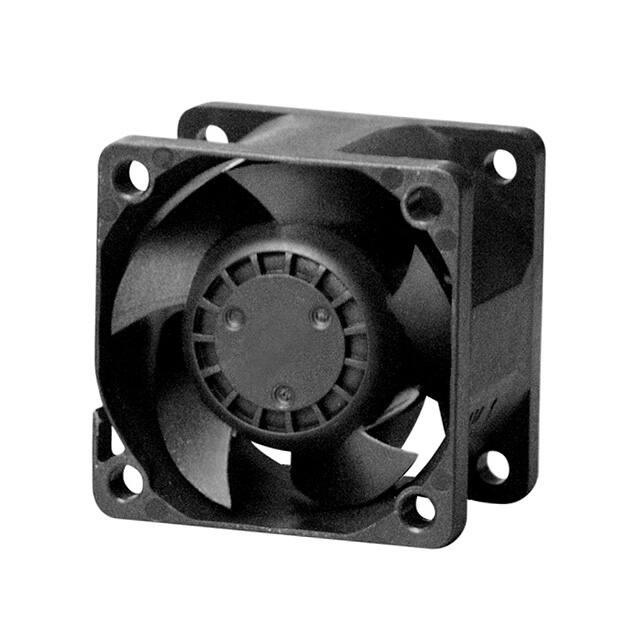

PF40281B1-000U-Q99FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | 0.093 lb (42.18 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 28.00mm | 56.0dB(A) | 6.12 W | CE, CUR, TUV, UL | 17600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PF40281B1-000U-F99FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | 0.093 lb (42.18 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.00mm | 56.0dB(A) | 6.12 W | CE, CUR, TUV, UL | 17600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PF40281B1-000U-H99FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PF | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 24.9 CFM (0.697m³/min) | 1.950 in H2O (485.7 Pa) | Ball | 0.093 lb (42.18 g) | Tubeaxial | Auto Restart, PWM Control | 28.00mm | 56.0dB(A) | 6.12 W | CE, CUR, TUV, UL | 17600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB1112HDC BLOWER CENTRIFUGAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCA1748ATXHDFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
TCA | Box | Obsolete | 48VDC | Round - 175mm Dia | 428.0 CFM (11.98m³/min) | 1.957 in H2O (487.5 Pa) | Ball | 1.5 lbs (670.0 g) | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.00mm | 70.8dB(A) | 76.8 W | CE, cURus, TUV | 4000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
MB40201V3-000U-A99FAN 12VDC 40X40X20MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MB60101V3-000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 11.7 CFM (0.328m³/min) | 0.080 in H2O (20.0 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 10.00mm | 21.5dB(A) | 650 mW | CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
ME60151V2-000U-A99FAN 12VDC 60X60X15MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ME60151V3-000U-A99FAN 12VDC 60X60X15MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MB60251VX-000U-A99FAN 12VDC 60X60X25MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MB60251V3-000U-A99FAN 12VDC 60X60X25MM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MB60252VX-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 36.5dB(A) | 2.64 W | CUR, TUV, UL | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MB60252V2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 29.0dB(A) | 1.16 W | CUR, TUV, UL | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MB60252V3-000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart | 25.00mm | 21.0dB(A) | 770 mW | CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
