直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD254AP-12LBDC FAN 12V 254X89MM |
0 | - |
|
数据表 |
OD254AP | Bulk | Active | 12VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 39.4dB(A) | 24 W | CE, cURus, TUV, UR | 1650 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
9LG1412H5001FAN AXIAL 140X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 173.0 CFM (4.84m³/min) | 1.040 in H2O (258.0 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 12 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412S5001140X51MM 12V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG1424S5D001140X51MM 24V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 51.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG1424S5001140X51MM 24V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
19039870AFAN IMP MTR 227X99MM DD893924B1T |
0 | - |
|
数据表 |
Diplomat | - | Active | 24VDC | Round - 227mm Dia | 626.0 CFM (17.53m³/min) | 1.900 in H2O (473.3 Pa) | Ball | 3.8 lbs (1.7 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 99.00mm | 73.5dB(A) | 84 W | CE, cUL, UL | 2550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9W1BM24H2D00197X33MM 24V, SPLASH PROOF BLOWER |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OD180APL-48HBFAN AXIAL 180X65MM 48VDC WIRE |
0 | - |
|
数据表 |
OD180APL | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 470.0 CFM (13.16m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.00mm | 65.0dB | 49.4 W | cURus, TUV | 3500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|

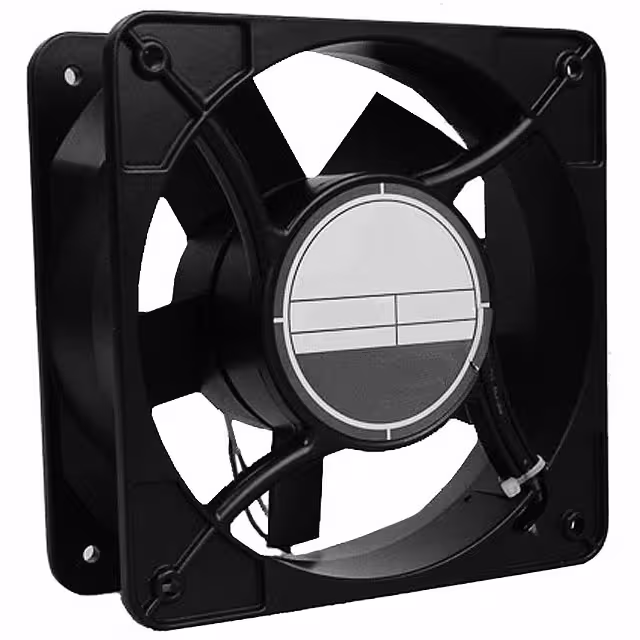

OD180APL-48MBFAN AXIAL 180X65MM 48VDC WIRE |
0 | - |
|
数据表 |
OD180APL | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 375.0 CFM (10.50m³/min) | 0.700 in H2O (174.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.00mm | 53.0dB | 23.5 W | cURus, TUV | 2800 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
OD180APL-24LBFAN AXIAL 180X65MM 24VDC WIRE |
0 | - |
|
数据表 |
OD180APL | Bag | Active | 24VDC | Square - 180mm L x 180mm H | 300.0 CFM (8.40m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.00mm | 46.0dB(A) | 13 W | cURus, TUV | 2200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
9WL1412M1002DC AXIAL FAN 140X38 12V |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | - | 7.2 W | - | - | - | 2 Wire Leads | - |
|
|
9WL1424M1002DC AXIAL FAN 140X38 24V |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | - | 7.2 W | - | - | - | 2 Wire Leads | - |
|
|
OD254AP-48LBDC FAN 48V 254X89MM |
0 | - |
|
数据表 |
OD254AP | Bulk | Active | 48VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 89.00mm | 39.4dB(A) | 24 W | CE, cURus, TUV, UR | 1650 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
6248NIFAN AXL 171.5X50.8MM 48VDC TERM |
0 | - |
|
数据表 |
6200N | Bulk | Active | 48VDC | Round - 171.5mm Dia | 167.7 CFM (4.70m³/min) | 0.233 in H2O (58.0 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | - | 50.80mm | 55.0dB(A) | 16 W | CCC, CSA, EAC, UL, VDE | 3400 RPM | 14 ~ 162°F (-10 ~ 72°C) | 2 Terminals | - |
|
|
9WL1412M1001DC AXIAL FAN 140X38 12V TACH |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | - | 7.2 W | - | - | - | 3 Wire Leads | - |
|
|
9WL1424M1001DC AXIAL FAN 140X38 24V TACH |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | - | 7.2 W | - | - | - | 3 Wire Leads | - |
|
|
9WL1412M1D001140X38MM 12V,SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL1424M1D001140X38MM 24V,SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 140W | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
109E2024H002200X70MM 24V,RBLS DC 0 |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 289.5 CFM (8.11m³/min) | 0.771 in H2O (192.0 Pa) | Ball | - | Tubeaxial | - | 70.00mm | 51.0dB(A) | - | CSA, TUV, UR | 2600 RPM | - | 2 Wire Leads | - |
|
|
109E2024S0D01200X70MM 24V,RBLS DC LCKRTRSNS |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
