直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109BG12HC1FAN BLOWER 160X40MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.00mm | 55.0dB(A) | 15.6 W | CSA, TUV, UL | 2300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BG12HD1FAN BLOWER 160X40MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Sensor | 40.00mm | 55.0dB(A) | 15.6 W | CSA, TUV, UL | 2300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BG12MD1FAN BLOWER 160X40MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Sensor | 40.00mm | 50.0dB(A) | 7.68 W | CSA, TUV, UL | 1800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BG12MC1FAN BLOWER 160X40MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 12VDC | Square/Rounded - 160mm L x 160mm H | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.00mm | 50.0dB(A) | 7.68 W | CSA, TUV, UL | 1800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
W2G110-AG43-01FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
W2G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | 15 W | - | 4200 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Wire Leads | IP22 |
|
|
7214N/12DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG1448M1D001140X38MM 48V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG1448L1D001140X38MM 48V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 48VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|

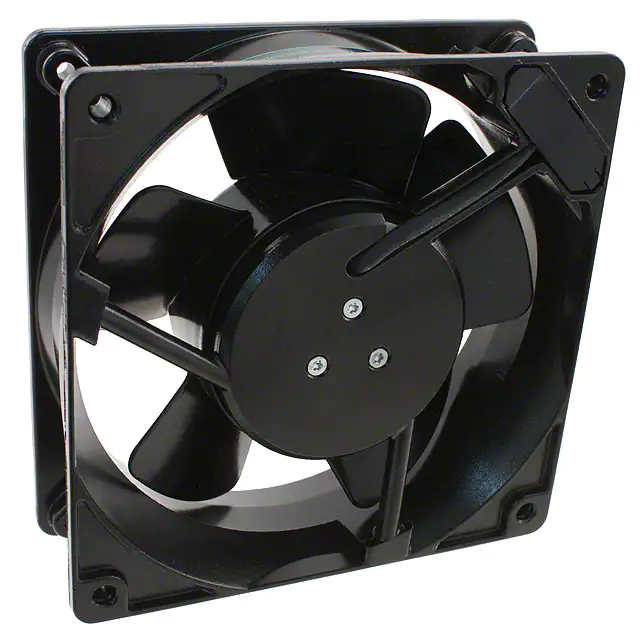

W2G110-AK43-31FAN AXIAL 119X38MM 24VDC TERM |
0 | - |
|
数据表 |
W1G110 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | - | 38.00mm | 61.0dB(A) | 15 W | CSA, UL | 4400 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Terminals | IP22 |
|
|
109BG24HA1FAN BLOWER 160X40MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection | 40.00mm | 55.0dB(A) | 15.6 W | CSA, TUV, UL | 2300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109BG24MA1FAN BLOWER 160X40MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection | 40.00mm | 50.0dB(A) | 7.44 W | CSA, TUV, UL | 1800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109BG24HD1FAN BLOWER 160X40MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 57.2 CFM (1.60m³/min) | 1.259 in H2O (313.6 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Sensor | 40.00mm | 55.0dB(A) | 15.6 W | CSA, TUV, UL | 2300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BG24MD1FAN BLOWER 160X40MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Sensor | 40.00mm | 50.0dB(A) | 7.44 W | CSA, TUV, UL | 1800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BG24MC1FAN BLOWER 160X40MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B160 | Box | Active | 24VDC | Square/Rounded - 160mm L x 160mm H | 44.5 CFM (1.25m³/min) | 0.629 in H2O (156.7 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 40.00mm | 50.0dB(A) | 7.44 W | CSA, TUV, UL | 1800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
4118NHHU-302FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 153.0 CFM (4.28m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 60.0dB(A) | 12 W | - | 5000 RPM | - | 2 Wire Leads | - |
|
|
6312/2MP-204FAN AXIAL 171.5X50.8MM 12VDC |
0 | - |
|
数据表 |
6300, S-Force | Bulk | Active | 12VDC | Round - 171.5mm Dia | 232.7 CFM (6.51m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 50.80mm | - | - | - | - | - | - | - |
|
|
6448/19H-398DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RER101-36/14NHHDC FLATPAK - RADIAL BLOWER |
0 | - |
|
数据表 |
RER101 | Bulk | Active | 24VDC | Round - 101mm Dia | 111.9 CFM (3.13m³/min) | - | Ball | - | Blower, Centrifugal | - | 51.70mm | - | 22.5 W | - | 6050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
RER101-36/18NHHDC FLATPAK - RADIAL BLOWER |
0 | - |
|
数据表 |
RER101 | Bulk | Active | 48VDC | Round - 101mm Dia | 111.9 CFM (3.13m³/min) | - | Ball | - | Tubeaxial | Alarm Sensor | 51.70mm | - | 19.4 W | - | 5850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9LG1424S5002140X51MM 24V, HIGH PERF LONG LIF |
0 | - |
|
数据表 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 51.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
