直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P1348H1011FAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.6 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1348S1011FAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 48VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 14.4 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
RG160-28/12NMFAN BLOWER CF 220X56MM 12VDC |
0 | - |
|
数据表 |
RG160N | Bulk | Obsolete | 12VDC | Square - 220mm L x 220mm H | 81.8 CFM (2.29m³/min) | - | Ball | 3.1 lbs (1.4 kg) | Blower, Centrifugal | - | 56.00mm | 56.0dB(A) | 7.5 W | - | 1900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
6224N/12MDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | - | Tubeaxial | - | 50.80mm | 55.0dB(A) | 18 W | CSA, VDE, UL | - | 162°F (72°C) | 2 Wire Leads | - |
|

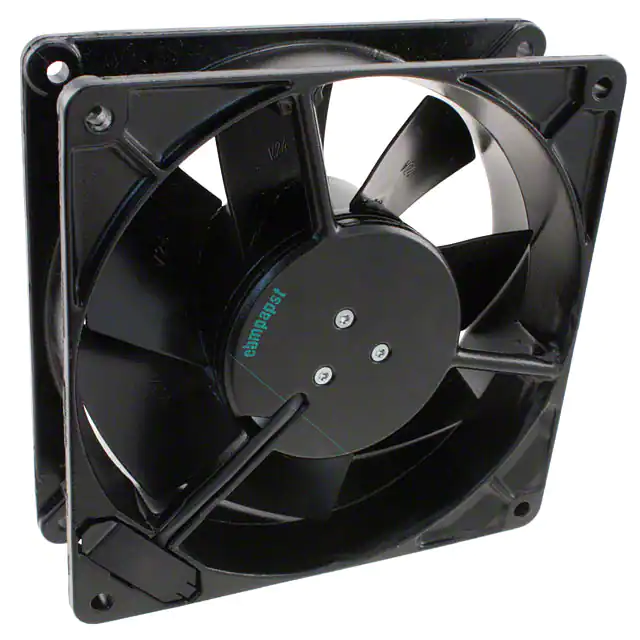

W2G115-AD17-01FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
W2G115 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 118.0 CFM (3.30m³/min) | - | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 44.0dB(A) | 4.7 W | - | - | - | 2 Wire Leads | - |
|

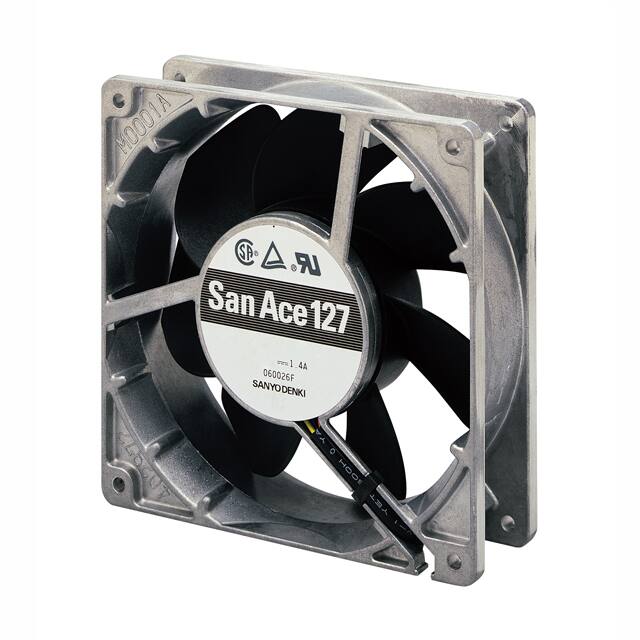

109E1312A101FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
4118N/2H5S-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 229.5 CFM (6.43m³/min) | 3.111 in H2O (775.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 70.0dB(A) | 45 W | CCC, CSA, CE, EAC, VDE, UL | 7500 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
RL90-18/14NR-422FAN BLOWER 120.6X37.3MM 24VDC |
0 | - |
|
数据表 |
RL90N | Bulk | Active | 24VDC | Square/Rounded - 120.6mm L x 120.6mm H | - | - | Ball | - | Blower, Centrifugal | - | 37.30mm | - | 5.6 W | - | 2500 RPM | - | - | - |
|
DV6248FAN AXIAL 171.5X50.8MM 48VDC |
0 | - |
|
数据表 |
DV6200 | Bulk | Obsolete | 48VDC | Round - 171.5mm Dia | 317.8 CFM (8.90m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 63.0dB(A) | 40 W | CE, CSA, UL, VDE | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

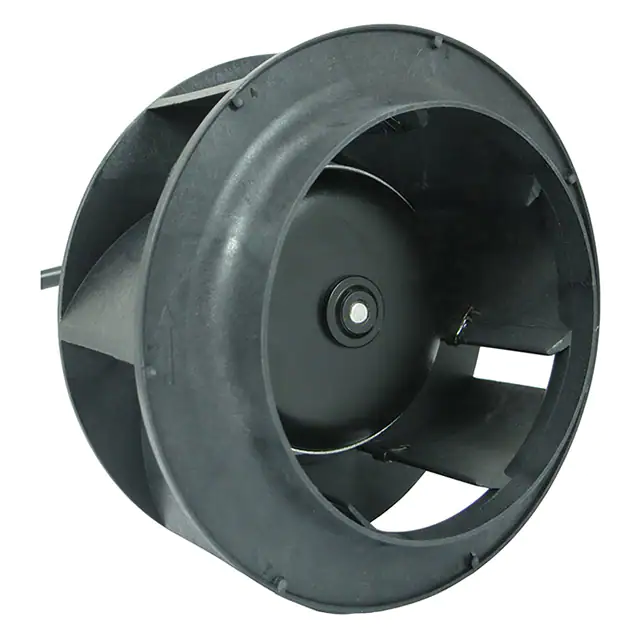

ODB13391-24HB10AFAN IMP MTRZD 133.5X91MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 133.5mm Dia | 257.0 CFM (7.20m³/min) | 1.900 in H2O (473.3 Pa) | Ball | 1.543 lb (700.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 91.00mm | 68.0dB | 63.6 W | CE, cURus, TUV, UR | 4600 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
|
ODB13391-48HB10AFAN IMP MTRZD 133.5X91MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Round - 133.5mm Dia | 257.0 CFM (7.20m³/min) | 1.900 in H2O (473.3 Pa) | Ball | 1.543 lb (700.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 91.00mm | 68.0dB | 60 W | CE, cURus, TUV, UR | 4600 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
MSI1769H24B-BBRFAN IMP MTRZD 175X69MM 24VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
MSI1769H48B-BBRFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
OD180APL-48HTBDC FAN 48V 180 X180X65MM |
0 | - |
|
数据表 |
OD180APL | Bulk | Active | 48VDC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 65.00mm | 63.2dB(A) | 50.2 W | CE, cURus, TUV, UR | 3375 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
|
MSI1769H24B1-BBRFAN IMP MTRZD 175X69MM 24VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MSI1769H24B2-BBRFAN IMP MTRZD 175X69MM 24VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 24VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MSI1769H48B1-BBRFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
MSI1769H48B2-BBRFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
MSI1769 | Box | Active | 48VDC | Round - 175mm Dia | 345.0 CFM (9.66m³/min) | 1.800 in H2O (448.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 69.00mm | 72.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
4118N/2H6S-FORCE DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 259.2 CFM (7.26m³/min) | 3.192 in H2O (795.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 73.0dB(A) | 62 W | CCC, CSA, CE, EAC, VDE, UL | 8400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
R1G133-AB41-52FAN IMP MTRZD 133X59.5MM 48VDC |
0 | - |
|
数据表 |
R1G133AB | - | Obsolete | 48VDC | Round - 133mm Dia | 202.0 CFM (5.66m³/min) | - | Ball | 1.6 lbs (725.7 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 59.50mm | 63.0dB(A) | 23 W | - | - | - | 4 Wire Leads | - |
