直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI1380H24B1+6-BBRFAN IMP MTRZD 133X80.5MM 24VDC |
0 | - |
|
数据表 |
MSI1380 | Box | Active | 24VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 80.50mm | 66.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 4 Wire Leads | - |
|
|
MSI1380H48B1+6-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
0 | - |
|
数据表 |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 80.50mm | 66.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 4 Wire Leads | - |
|
3212J/2H3FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3200J, S-Force | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 69.0dB(A) | 9 W | - | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
RER120-28/18/2TDPFAN IMP MTRZD 120X25MM 48VDC |
0 | - |
|
数据表 |
RER120DC | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
_Series.JPG)
|
6248NFAN AXL 171.5X50.8MM 48VDC TERM |
0 | - |
|
数据表 |
6200N | Box | Obsolete | 48VDC | Round - 171.5mm Dia | 241.3 CFM (6.76m³/min) | - | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 55.0dB(A) | 17 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 162°F (-10 ~ 72°C) | 2 Terminals | - |
|
|
9WE5724K502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 60.0dB(A) | 31.2 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WE1724K502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 24VDC | Round - 172mm Dia | 300.1 CFM (8.40m³/min) | 0.970 in H2O (241.6 Pa) | Ball | 1.9 lbs (860.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 55.0dB(A) | 31.2 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0824J400180X25MM 24V; SPLASH & DUST PROOF |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
5212N/12HHI-205DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7218NFAN AXIAL 150X55MM 48VDC WIRE |
0 | - |
|
数据表 |
7200N | Bulk | Active | 48VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | - | Ball | 1.6 lbs (725.7 g) | Tubeaxial | - | 55.00mm | 53.0dB(A) | 12 W | CE, CSA, UL, VDE | 3050 RPM | -13 ~ 162°F (-25 ~ 72°C) | 2 Wire Leads | - |
|

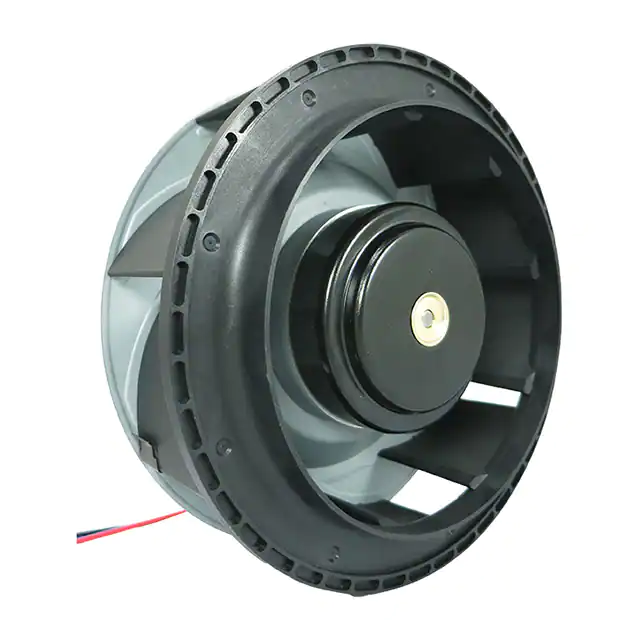

ODB17567-24HB10AFAN IMP MTRZD 175X67MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 175mm Dia | 298.0 CFM (8.34m³/min) | 1.380 in H2O (343.7 Pa) | Ball | 1.9 lbs (900.0 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 67.00mm | 64.0dB | 50.4 W | CE, cURus, TUV, UR | 3000 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|

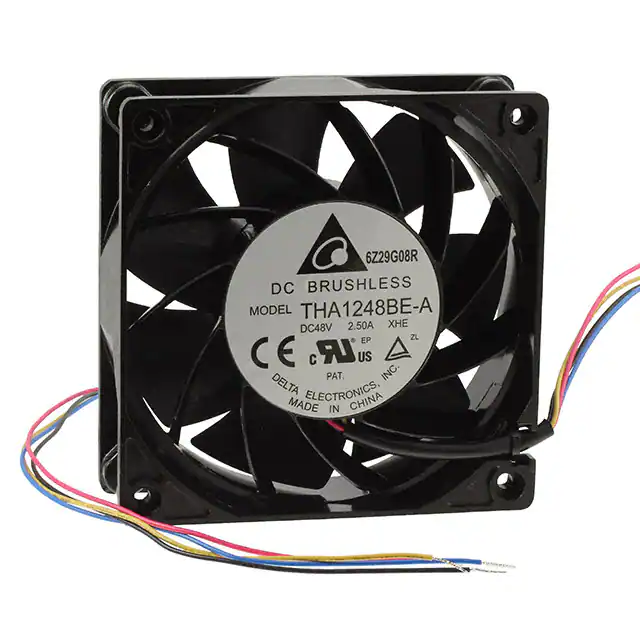

THA1248BE-AXHEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THA | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 302.8 CFM (8.48m³/min) | 3.394 in H2O (845.4 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 73.5dB(A) | 80.64 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9CR1212G001FAN AXIAL DUAL 120X76MM 12VDC |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 300.0 CFM (8.40m³/min) | 1.930 in H2O (480.8 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, Speed Sensor (Tach) | 76.00mm | 70.0dB(A) | 86.4 W | cURus, TUV | 6200 Front, 3800 Rear | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads per Fan | - |
|
|
109E1312S102FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 14.4 W | CSA, TUV, UL | 3450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1324S102FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 12.7 W | CSA, TUV, UL | 3450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1312A1D01FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1312S1D01FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 14.4 W | CSA, TUV, UL | 3450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1324A1D01FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1324S1D01FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 154.0 CFM (4.31m³/min) | 0.502 in H2O (125.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 12.7 W | CSA, TUV, UL | 3450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1324A101FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 52.0dB(A) | 16.8 W | CSA, TUV, UL | 3850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
