直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI1380H48B1-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
0 | - |
|
数据表 |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 80.50mm | 66.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|
|
MSI1380H48B2-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
0 | - |
|
数据表 |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 80.50mm | 66.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|
109P1312H101FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312H1011FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312S101FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 15.6 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312S1011FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 15.6 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324H101FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324H1011FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324S101FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 13.2 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324S1011FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 47.0dB(A) | 13.2 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312H1D01FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312H1D011FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312S1D01FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 47.0dB(A) | 15.6 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1312S1D011FAN AXIAL 127X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 47.0dB(A) | 15.6 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324H1D01FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324H1D011FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 134.0 CFM (3.75m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 45.0dB(A) | 9.84 W | CSA, TUV, UL | 2950 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324S1D01FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 47.0dB(A) | 13.2 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P1324S1D011FAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 148.0 CFM (4.14m³/min) | 0.472 in H2O (117.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 47.0dB(A) | 13.2 W | CSA, TUV, UL | 3300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

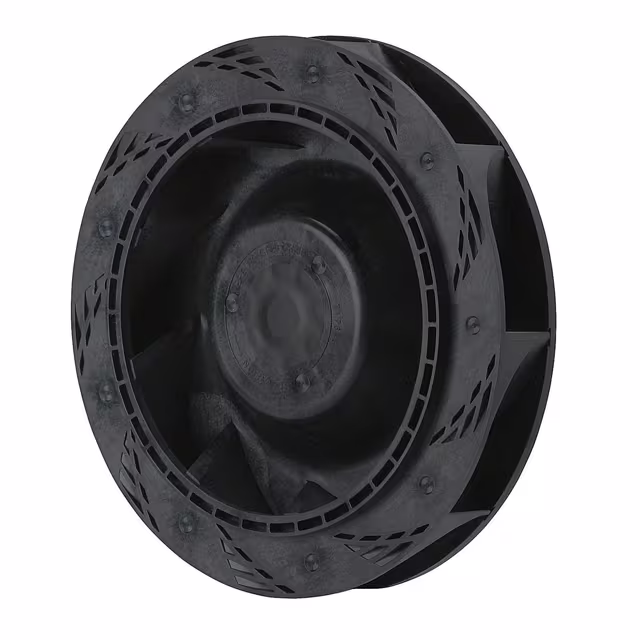

9W1TN48P1H01FAN IMP MTRZD 150X35MM 48VDC |
0 | - |
|
数据表 |
San Ace 150W | Box | Active | 48VDC | Round - 150mm Dia | 135.0 CFM (3.78m³/min) | 1.578 in H2O (393.1 Pa) | Ball | 0.728 lb (330.22 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 35.00mm | 59.0dB(A) | 15.4 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WL0812H4001DC AXIAL FAN 80X25 12V TACH |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | - | 1.44 W | - | - | - | 3 Wire Leads | - |
