直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0912H4D00192X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0924M400192X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.097 in H2O (24.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 960 mW | cURus, TUV | 2400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0924H400192X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
AFB1248SHEB8TFAN AXIAL 120X38MM 48VDC |
0 | - |
|
数据表 |
AFB | Bag | Not For New Designs | 48VDC | Square - 120mm L x 120mm H | - | - | - | - | Tubeaxial | - | 38.00mm | - | - | CE, CSA, UL, VDE | - | - | - | - |
|
|
PF60761B1-000U-Q9912VDC FAN 60X76MM ALARM/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.540 in H2O (632.7 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Locked Rotor Sensor, PWM Control | 76.00mm | 62.8dB(A) | 19.2 W | CCC, CE, cURus, TUV, UKCA | 14600 RPM Front, 11700 RPM Rear | - | 4 Wire Leads per Fan | - |
|
|
PF60761BX-000U-Q9912VDC FAN 60X76MM ALARM/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 73.1 CFM (2.05m³/min) | 3.960 in H2O (986.4 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Locked Rotor Sensor, PWM Control | 76.00mm | 68.6dB(A) | 33.6 W | CCC, CE, cURus, TUV, UKCA | 18200 RPM Front, 14700 RPM Rear | - | 4 Wire Leads per Fan | - |
|
|
9GT0412P3K00340X28MM 12V, WIDE TEMPERATURE RA |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.3 CFM (0.652m³/min) | 1.350 in H2O (336.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 55.0dB(A) | 7.68 W | cURus, TUV | 15000 RPM | -40 ~ 176°F (-40 ~ 80°C) | 4 Wire Leads | - |
|

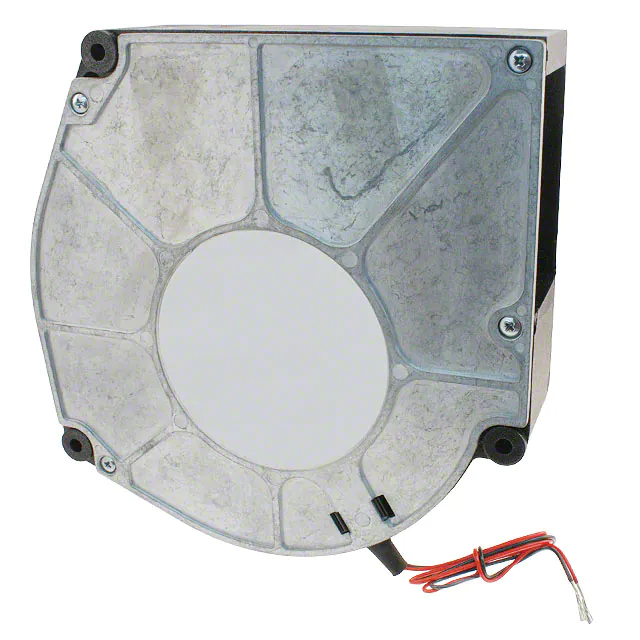

19032196AFAN BLOWER 160.7X50.2MM SPD48B1 |
0 | - |
|
数据表 |
Spinnaker | Box | Active | 48VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 2.1 lbs (952.5 g) | Blower | Auto Restart, Locked Rotor Protection | 50.20mm | 57.0dB(A) | 24 W | UL | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

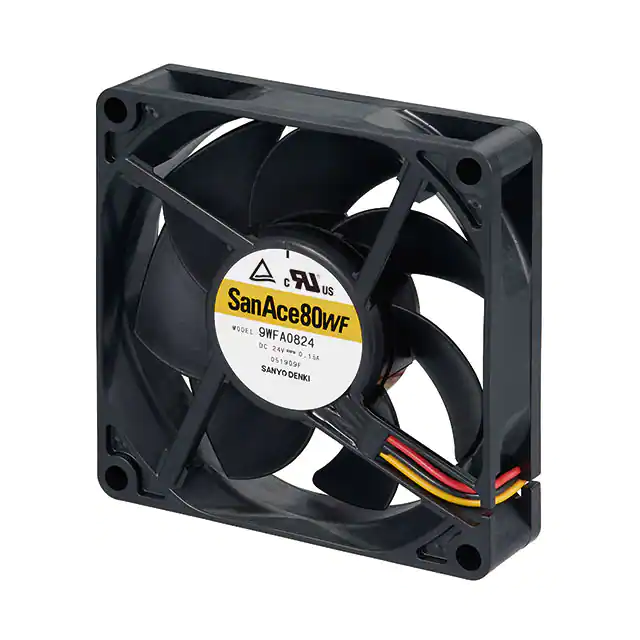

9WFA0824G6002FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 48.0dB(A) | 3.6 W | cURus, TUV | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
|
9LG0824L400180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 720 mW | cURus, TUV | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0824F400180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.08 W | cURus, TUV | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0812M400180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 28.3 CFM (0.792m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 25.0dB(A) | 960 mW | cURus, TUV | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0824F4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812F4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812L400180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 22.6 CFM (0.633m³/min) | 0.068 in H2O (17.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 720 mW | cURus, TUV | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0812L4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0824M4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812H4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812M4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0824H4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
