直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0824L4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0824G4002FAN AXIAL 80X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 25.20mm | 43.0dB(A) | 3.36 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9WV0924H100292X38MM 24V,SPLASH PROOF DC 0 |
0 | - |
|
数据表 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9LG0912P4H001FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.8 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9LG0924P4H001FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.68 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

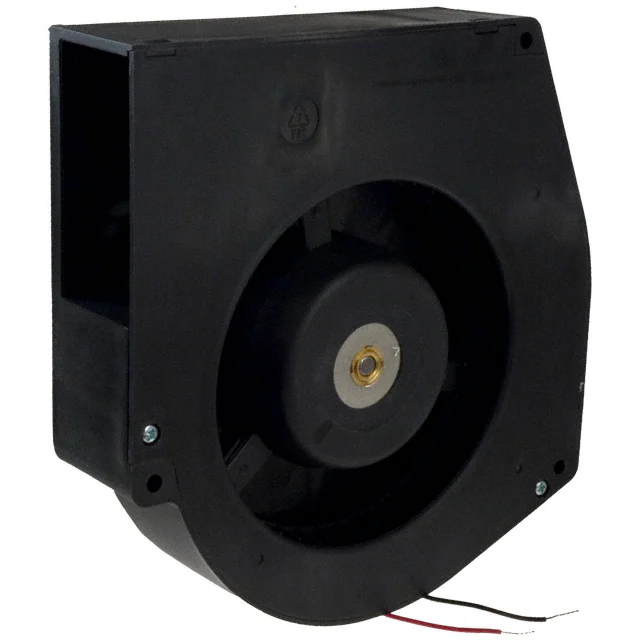

BFB1624MFAN BLOWER 159X40MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Tray | Obsolete | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 55.1 CFM (1.54m³/min) | 1.102 in H2O (274.5 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection | 40.00mm | 54.5dB(A) | 13.44 W | CE, CSA, UL, VDE | 2000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9LG0824G4D001FAN AXIAL 80X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 54.3 CFM (1.52m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 43.0dB(A) | 3.36 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0824G400180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812G400180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0824S4D00180X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812S4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0812G4D00180X25MM 12V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
9WFA0824G6D001FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80WF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 50.6 CFM (1.42m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 48.0dB(A) | 3.6 W | cURus, TUV | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
4182NGDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9LG0824P4H001FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 31.0dB(A) | 1.2 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9WV0924C1D00192X38MM 24V,SPLASH PROOF DC LCKR |
0 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | 58.0dB(A) | - | - | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17001170AFAN AXIAL 12VDC GLD12B3E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15.6 W | CE, cUL, UL | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WS0812F402FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | - | 25.00mm | 28.0dB(A) | 1.56 W | CSA, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0812F4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.138 in H2O (34.3 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | - | 25.00mm | 28.0dB(A) | 1.56 W | CSA, TUV, UL | 2700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0812H4021FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80WS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 33.2 CFM (0.930m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.265 lb (120.2 g) | Tubeaxial | - | 25.00mm | 32.0dB(A) | 1.92 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
