直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19031397AFAN AXIAL 172.7X50.8MM PQ24S4H |
0 | - |
|
数据表 |
Patriot | Box | Active | 24VDC | Round - 171.4mm Dia | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PTC Thermistor | 50.80mm | 51.2dB(A) | 24 W | CE, UL | 3425 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
PFE0381BX-000U-A99FAN AXIAL 140X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Auto Restart | 38.00mm | 68.3dB(A) | 39.6 W | CE, CUR, TUV, UL | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PFE0381B1-000U-A99FAN AXIAL 140X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Auto Restart | 38.00mm | 62.0dB(A) | 20.64 W | CE, CUR, TUV, UL | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
19040959AFAN 48VDC 171.5X150.4X50.8MM |
0 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 330.0 CFM (9.24m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 41 W | - | 4830 RPM | - | 3 Wire Leads | - |
|
17001201AFAN AXIAL 12VDC JQD12B3-E3 |
0 | - |
|
数据表 |
Major | Box | Active | 12VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 54.3dB(A) | 27.1 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
109E4712M402FAN AXIAL 172X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 51.0dB(A) | 15.6 W | CSA, TUV, UL | 2800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
|
109E4724M402FAN AXIAL 172X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 51.0dB(A) | 13.9 W | CSA, TUV, UL | 2800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|

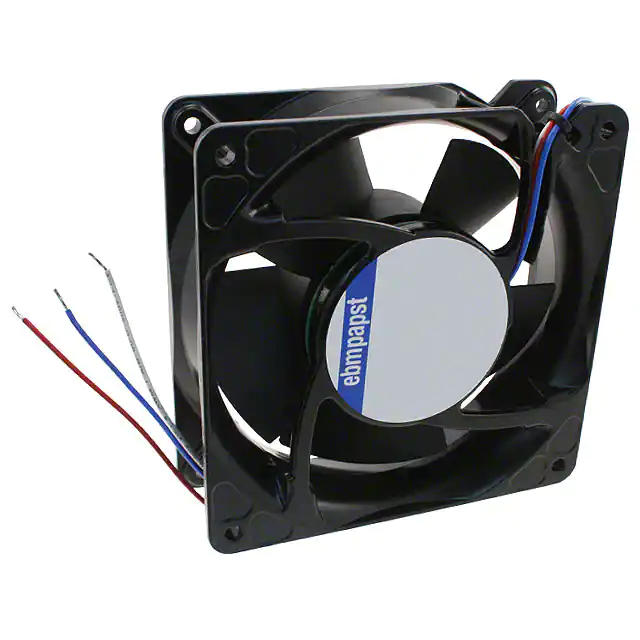

4118N/2HH-00187FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 160.0 CFM (4.48m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 14.7 W | - | - | -4 ~ 122°F (-20 ~ 50°C) | 3 Wire Leads | - |
|
CFM-A751BF-253-623-20FAN AXIAL 172X51.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 382.7 CFM (10.72m³/min) | 1.480 in H2O (368.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.50mm | 62.3dB(A) | 83.5 W | CE, cURus, TUV | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109E4712L4D01FAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 48.0dB(A) | 12 W | CSA, TUV, UL | 2500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4712M4D01FAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 147mm H | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 51.0dB(A) | 15.6 W | CSA, TUV, UL | 2800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724F4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 54.0dB(A) | 19 W | CSA, TUV, UL | 3100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724L4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 48.0dB(A) | 10.6 W | CSA, TUV, UL | 2500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724M4D01FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 51.0dB(A) | 13.9 W | CSA, TUV, UL | 2800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724F401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 204.0 CFM (5.71m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 54.0dB(A) | 19 W | CSA, TUV, UL | 3100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724L401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 162.0 CFM (4.54m³/min) | 0.293 in H2O (73.0 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 48.0dB(A) | 10.6 W | CSA, TUV, UL | 2500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109E4724M401FAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 183.0 CFM (5.12m³/min) | 0.369 in H2O (91.9 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 51.0dB(A) | 13.9 W | CSA, TUV, UL | 2800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
17000042AFAN AXL BALL 48VDC PQ48ROX-E2 |
0 | - |
|
数据表 |
Patriot | Box | Active | 48VDC | Round - 171.4mm Dia | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 51.2dB(A) | 22 W | CE, cUL, UL | 3475 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
GFB1224SHG-F00FAN AXIAL DUAL 120X50.8MM 24VDC |
0 | - |
|
数据表 |
GFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 67.6dB(A) | 35.04 W | CE, CSA, UL, VDE | 3700 Front, 3400 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|

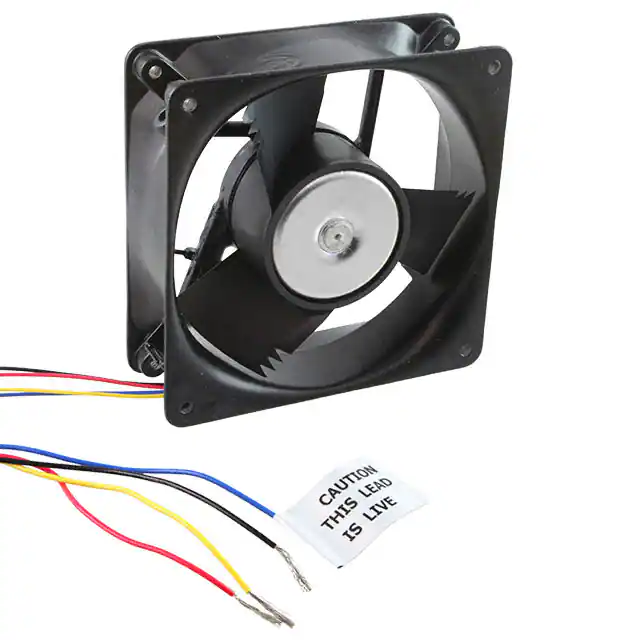

17001162AFAN AXIAL 12VDC MDD12B1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 106.0 CFM (2.97m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.12mm | 50.0dB(A) | 6 W | CE, cUL, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
