直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG0624M4001FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 960 mW | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0624H400160X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0624H4D00160X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9LG0624M4D00160X25MM 24V, HIGH PERF LONG LIFE |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P1232X12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE |
5 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 37.9 CFM (1.07m³/min) | 1.590 in H2O (396.0 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 58.5dB(A) | 16.2 W | CE, cUL, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFB1212GHE-T50FFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 32.4 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

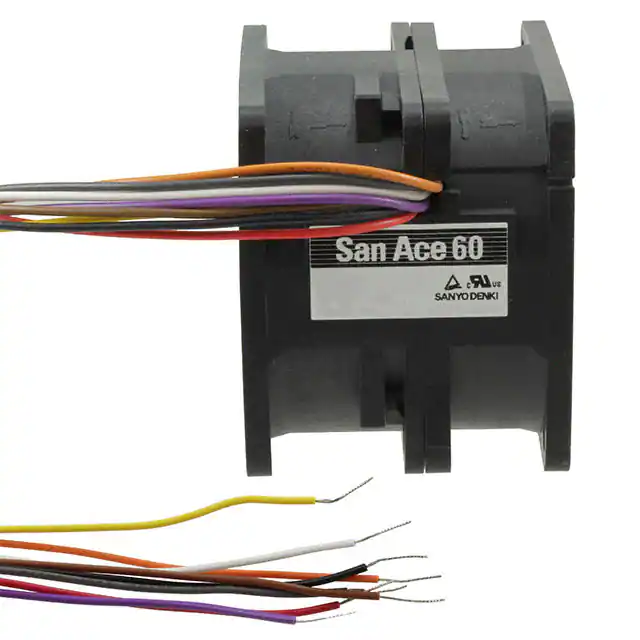

9CRA0612P0S001FAN AXIAL DUAL 60X76MM 12VDC |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 60.0 CFM (1.68m³/min) | 2.890 in H2O (719.9 Pa) | Ball | 0.604 lb (273.97 g) | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 76.00mm | 63.0dB(A) | 18 W | cURus, TUV | 14000 Front, 11000 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
9GA1248S4001FAN AXIAL 120X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 113.1 CFM (3.17m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 54.0dB(A) | 7.68 W | cURus, TUV | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
BFB1624HFAN BLOWER 159X40MM 24VDC WIRE |
0 | - |
|
数据表 |
BFB | Tray | Active | 24VDC | Rectangular/Rounded - 159mm L x 165mm H | 61.8 CFM (1.73m³/min) | 1.387 in H2O (345.5 Pa) | Ball | 1.3 lbs (589.7 g) | Blower | Locked Rotor Protection | 40.00mm | 56.5dB(A) | 17.16 W | CE, CSA, UL, VDE | 2200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
VG40561BX-000U-S9H12VDC FAN 40X56MM TACH/PWM |
0 | - |
|
数据表 |
VG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 25.0 CFM (0.700m³/min) | 6.190 in H2O (1541.9 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 65.0dB(A) | 16.8 W | CCC, CE, cURus, TUV, UKCA | 25500 RPM Front, 22300 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
VG40561B1-000U-S9H12VDC FAN 40X56MM TACH/PWM |
0 | - |
|
数据表 |
VG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 19.7 CFM (0.552m³/min) | 4.160 in H2O (1036.2 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 62.5dB(A) | 9 W | CCC, CE, cURus, TUV, UKCA | 20400 RPM Front, 17800 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
19031088AFAN AXIAL 172X50.8MM 48V PQ48C4 |
0 | - |
|
数据表 |
Patriot | - | Active | 48VDC | Round - 172mm Dia | 205.0 CFM (5.74m³/min) | 0.615 in H2O (153.2 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 50.80mm | 49.8dB(A) | 19 W | - | 3125 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

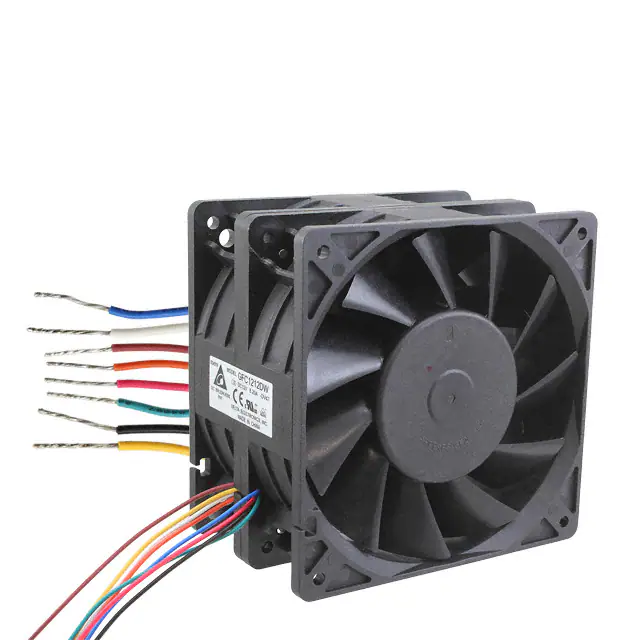

GFC1212DW-DV47FAN AXIAL DUAL 120X76MM 12VDC |
0 | - |
|
数据表 |
GFC | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 293.6 CFM (8.22m³/min) | 1.441 in H2O (358.9 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.00mm | 73.0dB(A) | 72 W | CE, cURus, VDE | 5300 Front, 3950 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|

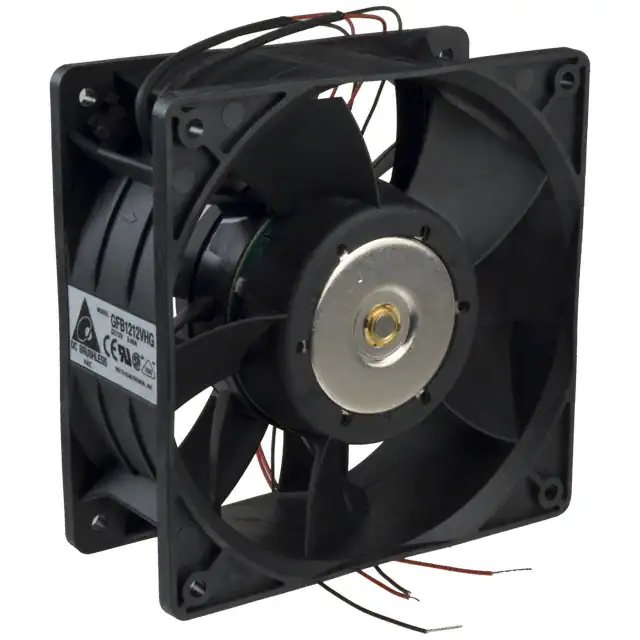

GFB1212VHGFAN AXIAL DUAL 120X50.8MM 12VDC |
0 | - |
|
数据表 |
GFB | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 184.4 CFM (5.16m³/min) | 0.687 in H2O (171.1 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial (Dual) | Locked Rotor Protection | 50.80mm | 65.0dB(A) | 33.84 W | CE, CSA, UL, VDE | 3400 Front, 3100 Rear | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads per Fan | - |
|

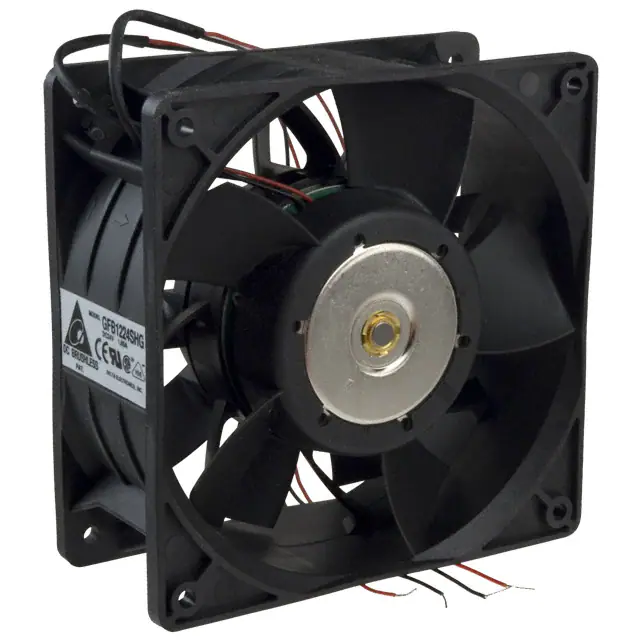

GFB1224SHGFAN AXIAL DUAL 120X50.8MM 24VDC |
0 | - |
|
数据表 |
GFB | Tray | Obsolete | 24VDC | Square - 120mm L x 120mm H | 203.9 CFM (5.71m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial (Dual) | Locked Rotor Protection | 50.80mm | 67.6dB(A) | 35.04 W | CE, CSA, UL, VDE | 3700 Front, 3400 Rear | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads per Fan | - |
|
|
9WV0812M1D001FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.9 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 51.0dB(A) | 9 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV0812M1001FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.9 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.518 lb (234.96 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 9 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WV0824A100180X38MM 24V,SPLASH PROOF DC TACH |
0 | - |
|
数据表 |
San Ace 80W | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9LG0624P4M001FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 960 mW | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
GFB1212VHW-SP02FAN AXIAL DUAL 120X76.2MM 12VDC |
0 | - |
|
数据表 |
GFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 76.20mm | 59.0dB(A) | 20.4 W | CE, CSA, UL, VDE | 3550 Front, 3200 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
