直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A751BF-245-588FAN AXIAL 172X51.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-A7BF | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 151.5mm H | 324.9 CFM (9.10m³/min) | 1.070 in H2O (266.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 51.50mm | 58.8dB(A) | 51.84 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

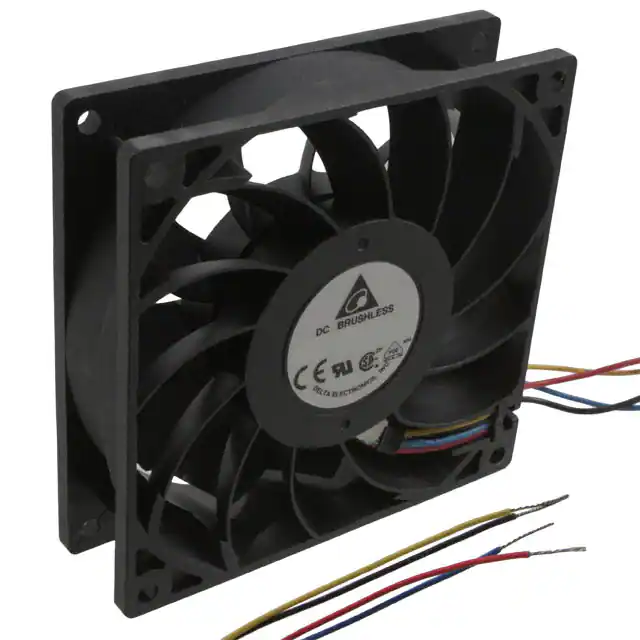

PFM1412DEB7VFAN AXIAL 139.7X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFM - Three-Phase | Box | Active | 12VDC | Square - 139.7mm L x 139.7mm H | 282.3 CFM (7.90m³/min) | 2.033 in H2O (506.4 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 70.0dB(A) | 46.8 W | CE, cURus, TUV | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
17001165AFAN AXIAL 12VDC MDD12K1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 125.0 CFM (3.50m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.12mm | 53.5dB(A) | 8.6 W | CE, cUL, UL | 3650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

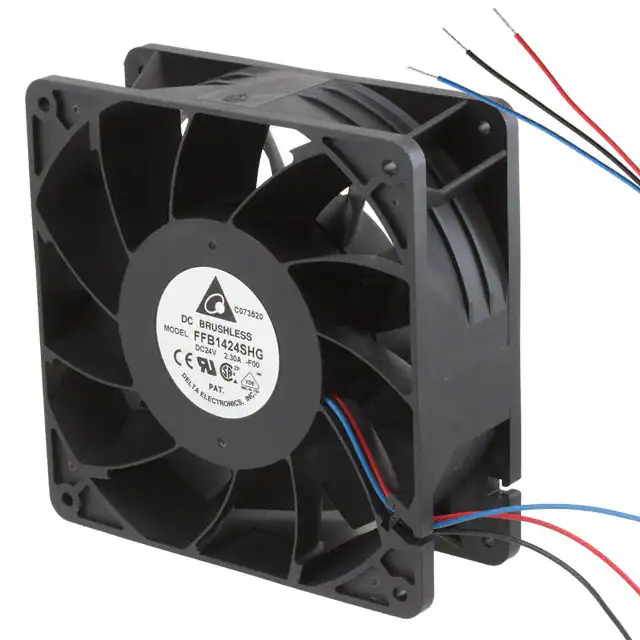

FFB1424SHG-F00FAN AXIAL 139.7X50.8MM 24VDC |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 24VDC | Square - 139.7mm L x 139.7mm H | 273.1 CFM (7.65m³/min) | 0.781 in H2O (194.5 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 61.7dB(A) | 36.72 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 122°F (-10 ~ 50°C) | 3 Wire Leads | - |
|
3318NHHDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
3300N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 63.0 CFM (1.76m³/min) | - | Ball | - | Tubeaxial | - | 32.00mm | 42.0dB(A) | 3.4 W | - | 3450 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
9BMC24G200297X33MM 24V,HIGH PERFORMANCE BLO |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9BMC12G200297X33MM 12V,HIGH PERFORMANCE BLO |
0 | - |
|
数据表 |
San Ace B97 | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | - | - | Ball | - | Blower | Locked Rotor Protection | 33.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
19040427AFAN PATRIOT 24VDC 45.6W 4830RPM |
0 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 330.0 CFM (9.24m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 50.80mm | 64.0dB(A) | 41 W | - | 4830 RPM | - | 4 Wire Leads | - |
|
|
19040425AFAN PATRIOT DC 24VDC 41W 4830RPM |
0 | - |
|
数据表 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 332.0 CFM (9.30m³/min) | 1.700 in H2O (423.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 64.0dB(A) | 40.8 W | CE, cUL, UL | 4830 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17001168AFAN AXIAL 48VDC MDD48Z1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 150.0 CFM (4.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.12mm | 58.5dB(A) | 16.8 W | CE, cUL, UL | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
19040404AFAN MUFFIN XL 48VDC 40W 4846RPM |
0 | - |
|
数据表 |
Muffin XL | Bulk | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 210.0 CFM (5.88m³/min) | - | Ball | - | Tubeaxial | - | 39.10mm | - | 40 W | - | - | - | 2 Wire Leads | - |
|
|
19039661AFAN BLWR 80X32.4MM 24V WT24B3-E2 |
0 | - |
|
数据表 |
Whiffet | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 15.0 CFM (0.420m³/min) | - | Ball | - | Blower | Auto Restart, Locked Rotor Protection | 32.00mm | 51.4dB(A) | 4.8 W | cUL, UL | 4050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
8214JN/2NP-001DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8214J/2NP-001DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17001166AFAN AXIAL 24VDC MDD24K1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 125.0 CFM (3.50m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.12mm | 53.5dB(A) | 8.2 W | CE, cUL, UL | 3650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PFE0381B1-000U-H9912VDC FAN 140X38MM PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 38.00mm | 62.0dB(A) | 20.64 W | CCC, CE, cURus, TUV, UKCA | 5500 RPM | - | 3 Wire Leads | - |
|
|
PFE0381BX-000U-H9912VDC FAN 140X38MM PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 38.00mm | 68.3dB(A) | 39.6 W | CCC, CE, cURus, TUV, UKCA | 6800 RPM | - | 3 Wire Leads | - |
|
|
PFE0381B1-000U-G9912VDC FAN 140X38MM ALARM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 238.5 CFM (6.68m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 20.64 W | CCC, CE, cURus, TUV, UKCA | 5500 RPM | - | 3 Wire Leads | - |
|
|
PFE0381BX-000U-G9912VDC FAN 140X38MM ALARM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 140mm L x 140mm H | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 68.3dB(A) | 39.6 W | CCC, CE, cURus, TUV, UKCA | 6800 RPM | - | 3 Wire Leads | - |
|
|
16002542AFAN 172X50.8MM 48V PQD48B6D3-E2 |
0 | - |
|
数据表 |
Patriot | Box | Active | 48VDC | Round - 171.4mm Dia | 240.0 CFM (6.72m³/min) | - | Ball | - | Tubeaxial | Fan Performance Sensor (FPS), Locked Rotor Protection, Thermistor Speed Control | 50.80mm | 52.0dB(A) | 22 W | CE, cUL, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 6 Position Rectangular Connector | - |
