直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109BD12MA2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection | 30.00mm | 32.5dB(A) | 1.68 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109BD24FA2FAN BLOWER 76X30MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection | 30.00mm | 37.0dB(A) | 3.36 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109BD24MA2FAN BLOWER 76X30MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection | 30.00mm | 32.5dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
THB1248B-AFAN AXIAL 120X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 186.6 CFM (5.22m³/min) | 0.962 in H2O (239.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 19.2 W | CE, cURus, TUV | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9WPA0612P4H00160X25MM 12VDC TACH/PWM |
0 | - |
|
数据表 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.8 CFM (0.722m³/min) | 0.333 in H2O (83.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 36.0dB(A) | 2.04 W | cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9CR0812P8S03FAN AXIAL DUAL 80X80MM 12VDC |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 160.0 CFM (4.48m³/min) | 2.090 in H2O (520.0 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 80.00mm | 71.0dB(A) | 66 W | CSA, TUV, UL | 8000 Front, 5300 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|
|
9WPA0412G6001FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424G6001FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
THD0948HE-AXHHFAN AXIAL 92X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THD - Bionic Blade | Box | Active | 48VDC | Square - 92mm L x 92mm H | 182.4 CFM (5.11m³/min) | 3.435 in H2O (855.6 Pa) | Ball | 0.477 lb (216.36 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 71.0dB(A) | 52.8 W | CE, cURus, TUV | 13500 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | - |
|
|
3314NMDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 40.1 CFM (1.12m³/min) | - | Ball | - | Tubeaxial | - | 32.00mm | 29.0dB(A) | 1.2 W | UL | 2250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
3314NLDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
3300N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 33.0 CFM (0.924m³/min) | - | Ball | - | Tubeaxial | - | 32.00mm | 24.0dB(A) | 800 mW | CSA, VDE, UL | 1850 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
109BD12HD2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Sensor | 30.00mm | 41.5dB(A) | 4.44 W | CSA, TUV, UL | 3000 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109BD24MC2FAN BLOWER 76X30MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.00mm | 32.5dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD12FD2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Sensor | 30.00mm | 37.0dB(A) | 3.24 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD12MD2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Sensor | 30.00mm | 32.5dB(A) | 1.68 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD24FD2FAN BLOWER 76X30MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Sensor | 30.00mm | 37.0dB(A) | 3.36 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD24MD2FAN BLOWER 76X30MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 8.8 CFM (0.246m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Sensor | 30.00mm | 32.5dB(A) | 2.4 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD12FC2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.00mm | 37.0dB(A) | 3.24 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

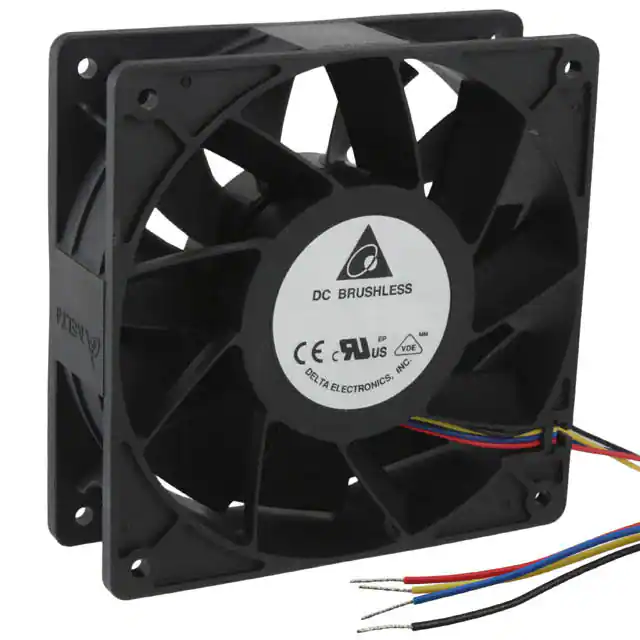

PFB1248UHE-TP38FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 268.3 CFM (7.51m³/min) | 1.262 in H2O (314.4 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.0dB(A) | 48 W | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
4412/2NDC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
