直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GFB0812DHU-F00FAN AXIAL DUAL 80X89MM 12VDC |
0 | - |
|
数据表 |
GFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 144.6 CFM (4.05m³/min) | 3.800 in H2O (946.5 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial (Dual) | Locked Rotor Protection, Speed Sensor (Tach) | 89.00mm | 73.5dB(A) | 58.8 W | CE, CSA, UL, VDE | 9200 Front, 9480 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|
17001140AFAN AXIAL 48VDC SDD48B1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.78mm | 47.6dB(A) | 3 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001143AFAN AXIAL 48VDC SDD48K1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 43.0 CFM (1.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.78mm | 52.1dB(A) | 5.2 W | CE, cUL, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001146AFAN AXIAL 48VDC SDD48Z1E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 50.0 CFM (1.40m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 41.78mm | 55.4dB(A) | 7.5 W | CE, cUL, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

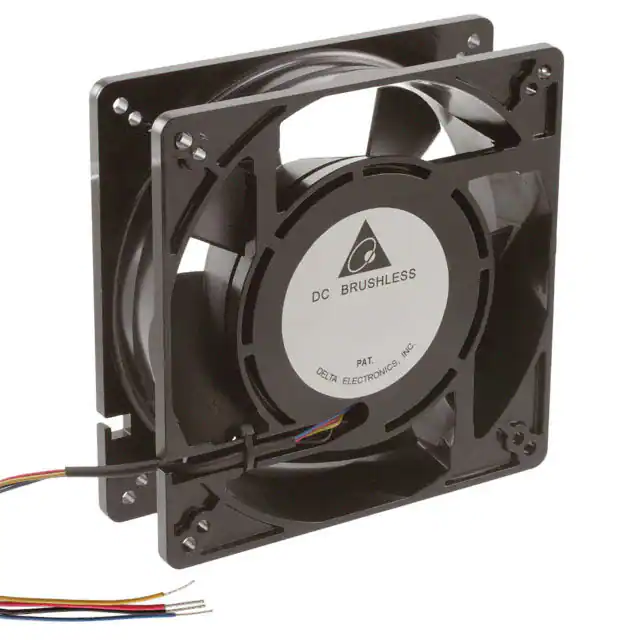

TDA1348AEFAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 160.0 CFM (4.48m³/min) | 1.311 in H2O (326.6 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.5dB(A) | 19.2 W | CE, CSA, UL, VDE | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9GV1224H1D01FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1224H1D011FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1224J1D01FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1224J1D011FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1224H101FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 0.794 lb (360.15 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | - | 19.2 W | CSA, TUV, UL | - | - | 3 Wire Leads | - |
|
|
9GV1224J101FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | - | - | Ball | 0.794 lb (360.15 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | - | 36 W | CSA, TUV, UL | - | - | 3 Wire Leads | - |
|
|
9GV1224J1011FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9WPA0412H6002FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0412G6002FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424H6002FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424G6002FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
AFB1512HFAN AXIAL 172X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | - | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 202.5 CFM (5.67m³/min) | 0.467 in H2O (116.3 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | - | 25.40mm | 52.0dB(A) | 11.76 W | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB1524LFAN AXIAL 172X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | - | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | - | 25.40mm | 46.0dB(A) | 7.44 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
6820PL-05W-B79-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
0 | - |
|
数据表 |
6820PL | - | Obsolete | 24VDC | Round - 172mm Dia | 300.0 CFM (8.40m³/min) | 0.909 in H2O (226.5 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Locked Rotor Sensor | 50.80mm | 63.2dB | 25.9 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109BD12FA2FAN BLOWER 76X30MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace B76 | Box | Active | 12VDC | Square/Rounded - 76mm L x 75.5mm H | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 0.222 lb (100.7 g) | Blower | Locked Rotor Protection | 30.00mm | 37.0dB(A) | 3.24 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
