交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2S130-AA19-38FAN AXIAL 150X55MM 400VAC WIRE |
13 | - |
|
数据表 |
W2S130 | Box | Active | 400VAC | Round - 150mm Dia | - | 0.482 in H2O (120.0 Pa) | Ball | 2.5 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | - | 38.00W | CE | 3200 RPM | 70°C | 2 Wire Leads | IP20 |
|
W2S130-AA25-64FAN AXIAL |
12 | - |
|
数据表 |
W2S130 | Bulk | Active | 115VAC | Round - 172mm Dia | - | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | - | 40.00W | CE, CSA, UL, VDE | 3250 RPM | -13 ~ 158°F (-25 ~ 70°C) | 3 Wire Leads with Splice Terminals | IP20 |
|
OA225AP-11-1TB1869KAC FAN, IP69K, 225X225X80MM, 115 |
20 | - |
|
数据表 |
OA225AP-IP69K | Box | Active | 115VAC | Square - 225mm L x 225mm H | 620.0 CFM (17.36m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 4.8 lbs (2.2 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 80.00mm | 66.0dB | 80.0W | CE, cURus, TUV, UR | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
OA205AP-22-1TB1868FAN 230AC 205X205X72MM IP68 TERM |
5 | - |
|
数据表 |
OA205AP | Box | Active | 230VAC | Square - 205mm L x 205mm H | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 5.2 lbs (2.4 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 72.00mm | 67.0dB | 80.0W | CE, cURus, TUV, UR | 3000 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
A2S130-AA03-22AC AXIAL FAN |
6 | - |
|
数据表 |
A2S130 | Bulk | Active | 230VAC | Round - 138.3mm Dia | - | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 56.90mm | - | 39.00W | CE | 3250 RPM | -13 ~ 158°F (-25 ~ 70°C) | 2 Wire Leads | IP20 |
|

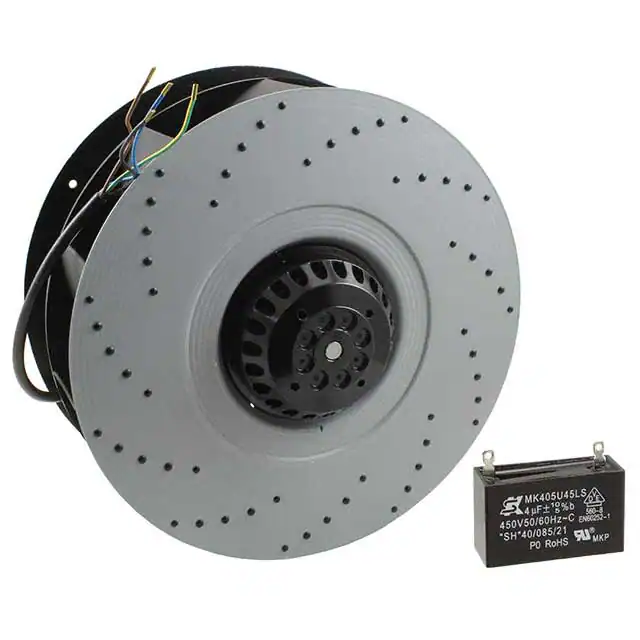

UF250APA12-H1C2FIMPELLER 251X98MM 115VAC RING |
12 | - |
|
数据表 |
UF250APA-F | Bulk | Active | 115VAC | Round - 259mm Dia | 681.0 CFM (19.07m³/min) | 3.100 in H2O (772.2 Pa) | Ball | 7.2 lbs (3.3 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 131.0mm | 72.0dB(A) | 240W | CE, cUL, TUV, UL | 2700 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|
A2E170-AF23-01AC AXIAL FAN |
6 | - |
|
数据表 |
A2E170 | Bulk | Active | 230VAC | Round - 170mm Dia | - | - | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | - | 53.0W | CCC, CE, EAC | 3150 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
R2E180-CB28-01MOTORIZED IMPELLER |
13 | - |
|
数据表 |
R2E180 | Bulk | Active | 230VAC | Round - 180mm Dia | - | - | Ball | - | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | - | 75.0W | CCC, CE, EAC | 2800 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
UF200BMB12-H2C2A-B1FAN AXIAL 200X71MM 115VAC TACH |
12 | - |
|
数据表 |
UF200BMB-H2 | Bulk | Active | 115VAC | Square - 225mm L x 225mm H | 625.0 CFM (17.50m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 3 lbs (1.4 kg) | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 80.00mm | 61.0dB(A) | 100W | CE, cUL, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Terminals | - |
|
OA2547AP-11-1TB1868FAN 115AC 254X254X89MM IP68 TERM |
20 | - |
|
数据表 |
OA2547AP | Box | Active | 115VAC | Round - 254mm Dia | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 5.6 lbs (2.5 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 70.0dB | 105W | CE, cURus, TUV, UR | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
OAB250-11-1FAN IMP MTRZD 251X98 115V W/CAP |
4 | - |
|
数据表 |
OAB250 | Box | Active | 115VAC | Round - 251.5mm Dia | 850.0 CFM (23.80m³/min) | 2.900 in H2O (722.4 Pa) | Ball | - | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 98.10mm | 76.0dB | 240W | cURus, TUV | 2700 RPM | -40 ~ 140°F (-40 ~ 60°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
R2E140-AL40-05MOTORIZED IMPELLER |
8 | - |
|
数据表 |
R2E140 | Bulk | Active | 230VAC | Round - 140mm Dia | - | 0.401 in H2O (100.0 Pa) | Ball | 2.4 lbs (1.1 kg) | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | 72.00mm | - | 145W | CCC, CE, EAC | 1700 RPM | -13 ~ 104°F (-25 ~ 40°C) | 4 Wire Leads with Splice Terminals | IP44 |
|
R2E175-AC79-22IMPELLER MTRZD 175X47MM 115VAC |
10 | - |
|
数据表 |
R2E175 | Bulk | Active | 115VAC | Round - 175mm Dia | 320.0 CFM (8.96m³/min) | - | Ball | 2 lbs (907.2 g) | Motorized Impellers | - | 47.00mm | 70.0dB(A) | 80.0W | - | - | - | 2 Wire Leads | - |
|
W2S130-AB03-10FAN AXIAL 150X55MM 230VAC WIRE |
8 | - |
|
数据表 |
W2S130 | Bulk | Active | 230VAC | Round - 150mm Dia | 229.5 CFM (6.43m³/min) | - | Ball | - | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | - | 45.00W | CE | 3250 RPM | 60°C | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
OA254EC-UR-1WBEC FAN 254X89MM 95-264VAC WIRE |
9 | - |
|
数据表 |
OA254EC | Box | Active | 95 ~ 264VAC | Round - 254mm Dia | 500.0 CFM (14.00m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 4.6 lbs (2.1 kg) | Tubeaxial | Electronic Commutation (EC) | 89.00mm | 56.0dB | 22.00W | CE, cURus, TUV, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
R2S175-AA07-39MOTORIZED IMPELLER |
12 | - |
|
数据表 |
R2S175 | Bulk | Active | 230VAC | Round - 175mm Dia | - | - | Ball | - | Motorized Impellers | Thermal Overload Protector (TOP) | 69.00mm | - | 57.0W | CE, EAC | 2440 RPM | -13 ~ 104°F (-25 ~ 40°C) | 3 Wire Leads with QC Receptacles | IP20 |
|
3237110SK FAN AND FILTER UNITS TOPTHERM |
10 | - |
|
数据表 |
3237 | Box | Active | 115VAC | Square - 116.5mm L x 116.5mm H | 14.7 CFM (0.412m³/min) | - | Ball | - | Tubeaxial | - | 59.00mm | 43.0dB(A) | 9.00W | CCC, CSA, cUL, cUR, EAC, UL, UR | - | 5 ~ 131°F (-15 ~ 55°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9AD1601H5002100V TO 240V, HIGH AIRFLOW, HIGH |
7 | - |
|
数据表 |
San Ace 160AD | Box | Active | 100 ~ 240VAC | Square - 160mm L x 160mm H | 290.0 CFM (8.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 51.00mm | 58.0dB(A) | 22.00W | - | 4150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
AC6200NMUFAN AXL 171.5X50.8MM 115/230VAC |
23 | - |
|
数据表 |
6200NU | Bulk | Active | 115/230VAC | Round - 171.5mm Dia | 206.0 CFM (5.77m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 50.80mm | 50.0dB(A) | 14.00W | CCC, CE, CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
55416.29089AC FAN BLOWER CROSSFLOW |
19 | - |
|
数据表 |
QLN65AC | Bulk | Active | 115VAC | - | 174.0 CFM (4.87m³/min) | 0.453 in H2O (112.8 Pa) | Sleeve | - | Blower, Cross Flow | - | 71.00mm | - | 54.0W | - | 1250 RPM | 32 ~ 140°F (0 ~ 60°C) | - | - |
