交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF18JC12/23-BWHRFAN AXIAL 180X90MM 115/230VAC |
8 | - |
|
数据表 |
UF18JC-4 | Bulk | Active | 115/230VAC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 4.8 lbs (2.2 kg) | Tubeaxial | Dual Voltage, Permanent Split Capacitor Motor | 90.00mm | 59.0dB(A) | 72.0W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
|
LPT200BPB12-H1D4AEC FAN AXIAL 250X76MM 120VAC 2 S |
3 | - |
|
数据表 |
LPT200BMB | Bulk | Active | 115VAC | Round - 250mm Dia | 304.0 ~ 484.0 CFM (8.51 ~ 13.56m³/min) | 0.270/0.510 in H2O (67.3/127.0 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 76.10mm | 44/55dB | 7.00W, 26.00W | - | 2200 RPM | - | 3 Wire Leads | - |
|
UF20TC12-BWHRAC FAN AXIAL 205X205X72MM 120VAC |
12 | - |
|
数据表 |
UF20TC | Bulk | Active | 115VAC | Square - 205.5mm L x 205.5mm H | 710.0 CFM (19.88m³/min) | 1.450 in H2O (361.2 Pa) | Ball | - | Tubeaxial | Permanent Split Capacitor Motor | 72.00mm | 72.0dB(A) | 126W | - | 3350 RPM | - | 2 Wire Leads | - |
|
UF225(99)APA23-H1C2AIMPELLER 225X99MM 230VAC |
17 | - |
|
数据表 |
UF225(99)APA | Bulk | Active | 230VAC | Round - 225mm Dia | 770.0 CFM (21.56m³/min) | 2.600 in H2O (647.7 Pa) | Ball | 5 lbs (2.3 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 99.00mm | 71.0dB(A) | 157W | CE, cUL, TUV, UL | 2950 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|
W2S130-AA25-65FAN AXIAL 150X55MM 115VAC WIRE |
5 | - |
|
数据表 |
W2S130 | Box | Active | 115VAC | Round - 150mm Dia | 223.6 CFM (6.26m³/min) | - | Ball | 2.4 lbs (1.1 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 53.0dB(A) | 40.00W | CE, CSA, UL, VDE | 3250 RPM | -13 ~ 194°F (-25 ~ 90°C) | 2 Terminals | IP20 |
|
UF25GC12-BWHNSRFAN 254X89MM 115V IP55 SALT FOG |
24 | - |
|
数据表 |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 33.00W | CE, cUL, TUV, UL | 1650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OA205AN-22-1WB1856FAN AXIAL 205X72MM 230VAC WIRE |
6 | - |
|
数据表 |
OA205AN | Box | Active | 230VAC | Square - 205mm L x 205mm H | 590.0 CFM (16.52m³/min) | 0.860 in H2O (214.2 Pa) | Ball | 5.1 lbs (2.3 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 72.00mm | 67.0dB | 80.0W | CE, cURus, TUV, UR | 3000 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
AC3200JHUFAN AXIAL115/230VAC 92X72MM IP65 |
15 | - |
|
数据表 |
AC3200J | Bulk | Active | 115/230VAC | Square - 92mm L x 92mm H | 84.8 CFM (2.37m³/min) | 1.044 in H2O (260.0 Pa) | Ball | 0.717 lb (325.22 g) | Tubeaxial | Auto Restart, Dual Voltage | 72.00mm | 55.0dB(A) | 12.00W | CCC, CE, CSA, UL, VDE | - | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP65 - Dust Tight, Water Resistant |
|
R2S150-AA08-29MOTORIZED IMPELLER |
6 | - |
|
数据表 |
R2S150 | Bulk | Active | 230VAC | Round - 150mm Dia | - | - | Ball | - | Tubeaxial | - | 106.7mm | - | 43.00W | CE | 2200 RPM | 167°F (75°C) | 2 Wire Leads with Splice Terminals | IP22 |
|
R2E220-RA38-13220 MM AC CENTRIFUGAL FAN |
4 | - |
|
数据表 |
RadiCal® R2E220RA | Bulk | Active | 230VAC | Round - 220mm Dia | 541.5 CFM (15.16m³/min) | - | Ball | 2.9 lbs (1.3 kg) | Motorized Impellers | - | 71.00mm | 69.0dB(A) | 107W | UL | 2050 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP44 |
|

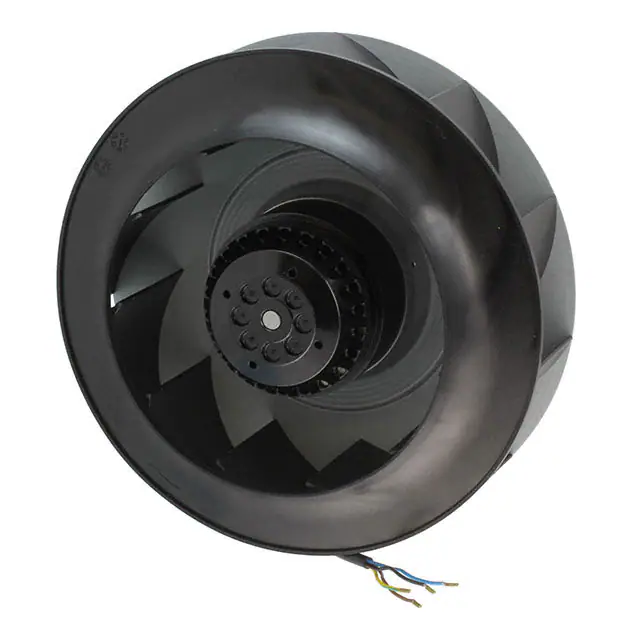

UF250APA12-H1C2AIMPELLER 251X98MM 115VAC |
20 | - |
|
数据表 |
UF250APA | Bulk | Active | 115VAC | Round - 251mm Dia | 850.0 CFM (23.80m³/min) | 2.900 in H2O (722.4 Pa) | Ball | 6.8 lbs (3.1 kg) | Motorized Impellers | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 98.00mm | 76.0dB(A) | 240W | CE, cUL, TUV, UL | 2700 RPM | -40 ~ 122°F (-40 ~ 50°C) | 4 Wire Leads | - |
|
R2E133-BH72-13AC MOTORIZED IMPELLER |
18 | - |
|
数据表 |
R2E133 | Bulk | Active | 115VAC | Round - 133mm Dia | 203.0 CFM (5.68m³/min) | - | Ball | 1.5 lbs (680.4 g) | Motorized Impellers | - | 91.00mm | 66.0dB(A) | 30.00W | CE, CSA, UL | - | - | 2 Wire Leads | - |
|
W2E142-CC13-16FAN AXIAL 172X38MM 115VAC TERM |
11 | - |
|
数据表 |
W2E142 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 175.0 CFM (4.90m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 54.0dB(A) | 16.00W | CE, UL | - | - | 2 Terminals | - |
|
W2E142-CC15-16FAN AXIAL 230VAC 172X150X38MM |
9 | - |
|
数据表 |
W2E142 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 175.0 CFM (4.90m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 54.0dB(A) | 16.00W | CE, CSA, UL | - | - | 2 Terminals | - |
|
W2E143-AB15-06FAN AXIAL 115VAC 172X51MM |
24 | - |
|
数据表 |
W2E143 | Bulk | Active | 115VAC | Round - 171.5mm Dia | - | - | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | - | 29.00W | CE, CSA, UL, VDE | 3300 RPM | - | 2 Terminals | IP20 |
|
OA2547AN-22-1TB1856FAN AXIAL 254X89MM 230VAC TERM |
22 | - |
|
数据表 |
OA2547AN | Box | Active | 230VAC | Round - 254mm Dia | 1000.0 CFM (28.00m³/min) | 0.600 in H2O (149.5 Pa) | Ball | 5.9 lbs (2.7 kg) | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 89.00mm | 70.0dB | 105W | cURus, TUV | 3250 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP56 - Dust Protected, Water Resistant |
|
R2S175-AB56-30FAN IMP MTRZD 175X62MM 230VAC |
3 | - |
|
数据表 |
R2E175 | Bulk | Active | 230VAC | Round - 175mm Dia | 253.0 CFM (7.08m³/min) | - | Ball | 2 lbs (907.2 g) | Motorized Impellers | - | 62.00mm | 54.0dB(A) | 60.0W | - | - | - | 2 Wire Leads | - |
|
|
OAB22599-22-1BFAN IMP MTRZD 225X99 230V W/CAP |
9 | - |
|
数据表 |
OAB22599 | Bulk | Active | 230VAC | Round - 225mm Dia | 770.0 CFM (21.56m³/min) | 2.600 in H2O (647.7 Pa) | Ball | 5.1 lbs (2.3 kg) | Motorized Impellers | Permanent Split Capacitor Motor | 99.00mm | 71.0dB | 157W | - | 2950 RPM | -40 ~ 140°F (-40 ~ 60°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
W1G172-EC95-01FAN AXIAL |
10 | - |
|
数据表 |
W1G172 | Bulk | Active | 115VAC | Round - 222mm Dia | - | 0.241 in H2O (60.0 Pa) | Ball | - | Tubeaxial | Dual Speed, Thermal Overload Protector (TOP) | 78.50mm | - | 21.00W | CE, CSA, EAC, UL, VDE | 1700/2500 RPM | -22 ~ 122°F (-30 ~ 50°C) | 3 Wire Leads with Splice Terminals | IP55 - Dust Protected, Water Resistant |
|
W2E142-BB01-87FAN AXIAL 172X38MM 230VAC TERM |
16 | - |
|
数据表 |
W2E142 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 230.0 CFM (6.44m³/min) | - | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 38.00mm | 57.0dB(A) | 28.00W | - | - | -40 ~ 176°F (-40 ~ 80°C) | 2 Terminals | - |
