交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA125AP-22-1TBFAN AXIAL 119.5X26.2MM 230VAC |
26 | - |
|
数据表 |
OA125 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.73 lb (331.12 g) | Tubeaxial | - | 25.00mm | 42.0dB | 14.00W | cURus, TUV | 2900 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
UF92B12-BTHRFAN AXIAL 92X25MM 115VAC TERM |
35 | - |
|
数据表 |
UF92B | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 40.0 CFM (1.12m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.618 lb (280.32 g) | Tubeaxial | - | 25.00mm | 36.0dB(A) | 11.00W | CE, cUL, TUV, UL | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

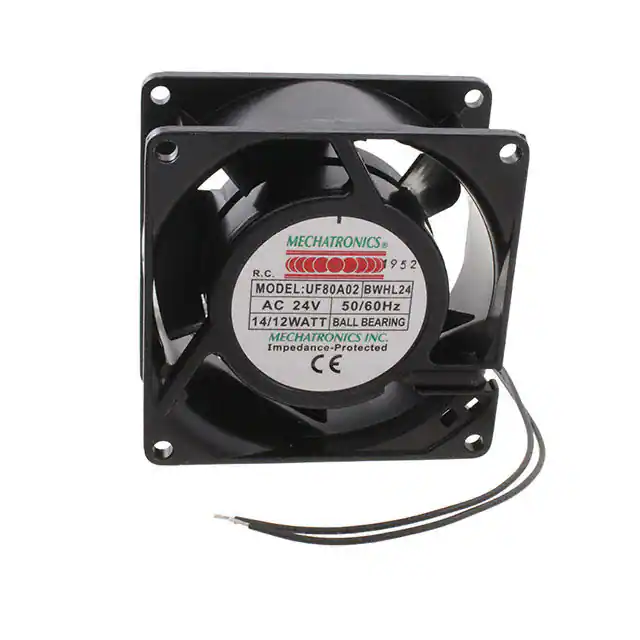

UF80A02-BWHR-L24FAN AXIAL 80X38MM BALL WIRE |
31 | - |
|
数据表 |
UF80A | Bulk | Active | 24VAC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | - | - | CE | - | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | - |
|
DP201AT-2122HST.GNFAN AXIAL 119X25.5MM 220/240VAC |
93 | - |
|
数据表 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119mm L x 119mm H | 78.0 CFM (2.18m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | 0.65 lb (294.84 g) | Tubeaxial | - | 25.50mm | 46.0dB(A) | 19.00W | CE, CUR, TUV, UL | 2300 RPM | - | 2 Terminals | - |
|

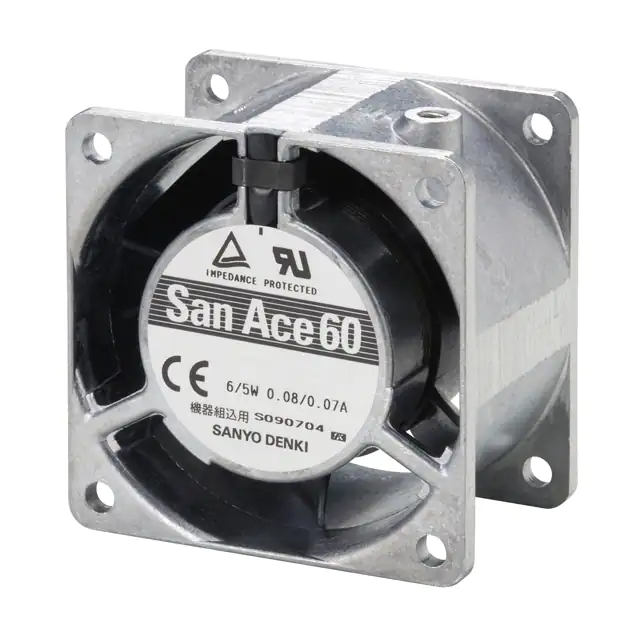

109-133FAN 60X38MM 115VAC |
14 | - |
|
数据表 |
San Ace 60 | Box | Active | 115VAC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.094 in H2O (23.4 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 38.00mm | 30.0dB(A) | 5.00W | CE, TUV, UL | 3150 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|
OA80AP-22-1TBFAN AXIAL 80X38MM 230VAC TERM |
18 | - |
|
数据表 |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 36.0dB | 12.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
SP101A-1123HSL.GNFAN AXIAL 120X38MM 115VAC WIRE |
55 | - |
|
数据表 |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 105.0 CFM (2.94m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 48.0dB(A) | 18.00W | CE, CSA, TUV, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAA1-12025QBMW31FAN AXIAL 120X25MM 230VAC WIRE |
73 | - |
|
数据表 |
FAA1-12025 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 0.749 lb (339.74 g) | Tubeaxial | - | 25.00mm | 44.1dB(A) | 20.70W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OA80AP-11/22-1WBFAN AXIAL 80X38MM 115/230VAC |
44 | - |
|
数据表 |
OA80 | Box | Active | 115/230VAC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Dual Voltage | 38.00mm | 29.0dB | 12.00W | cURus, TUV | 3000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 4 Wire Leads | - |
|
FMA1-08025WBHT12EC FAN, 80X80X25MM, 2-BALL BEARI |
71 | - |
|
数据表 |
FMA1-08025 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 38.9 CFM (1.09m³/min) | 0.247 in H2O (61.5 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC) | 25.00mm | 31.0dB(A) | 4.50W | CE, cURus | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | IP54 - Dust Protected, Water Resistant |
|
UF12A12/23-BWHRFAN AXIAL 120X38MM 115/230VAC |
87 | - |
|
数据表 |
UF12A | Bulk | Active | 115/230VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | Dual Voltage | 38.00mm | 46.0dB(A) | 12.00W, 15.00W | CE, cUL, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads | - |
|
LPH80A99-BTHRFAN AXIAL 80X38MM 100-240VAC |
66 | - |
|
数据表 |
LPH80A99 | Bulk | Active | 100 ~ 240VAC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.280 in H2O (70.0 Pa) | Ball | 0.359 lb (162.84 g) | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 38.00mm | 31.0dB(A) | 5.50W | CE, cUL, TUV, UL | 4000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
CF1082HVL-1000U-999EC AXIAL FAN 80X80X25 MM |
12 | - |
|
数据表 |
CF | Box | Active | 100 ~ 120VAC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | - | 25.00mm | 33.0dB(A) | 3.30W | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
OA938EC-UR-1WBXCEC FAN 92X38MM 85-265VAC 88CFM |
95 | - |
|
数据表 |
OA938EC XC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 88.0 CFM (2.46m³/min) | 0.500 in H2O (124.5 Pa) | Ball | 0.420 lb (190.51 g) | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 38.00mm | 52.0dB | 7.90W | CE, cURus, TUV, UR | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
UF12A12-BTHNRFAN AXIAL 120X38MM 115VAC IP55 |
49 | - |
|
数据表 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 46.0dB(A) | 12.00W | CE, cUL, TUV, UL | 3100 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
3650FAN AXIAL 92X38MM 230VAC WIRE |
49 | - |
|
数据表 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 44.1 CFM (1.23m³/min) | - | Sintec | 0.926 lb (420.03 g) | Tubeaxial | - | 38.00mm | 36.0dB(A) | 12.00W | CE, CSA, UL, VDE | 2650 RPM | 14 ~ 131°F (-10 ~ 55°C) | 2 Wire Leads | - |
|
GTW012FU804120X120X38MM 100 /240V AC FAN W/ |
22 | - |
|
数据表 |
GTW | Box | Active | 220VAC | Square - 120mm L x 120mm H | 145.0 CFM (4.06m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Electronic Commutation (EC), Locked Rotor Sensor, PWM Control | 38.00mm | 54.9dB(A) | 11.00W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 5 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

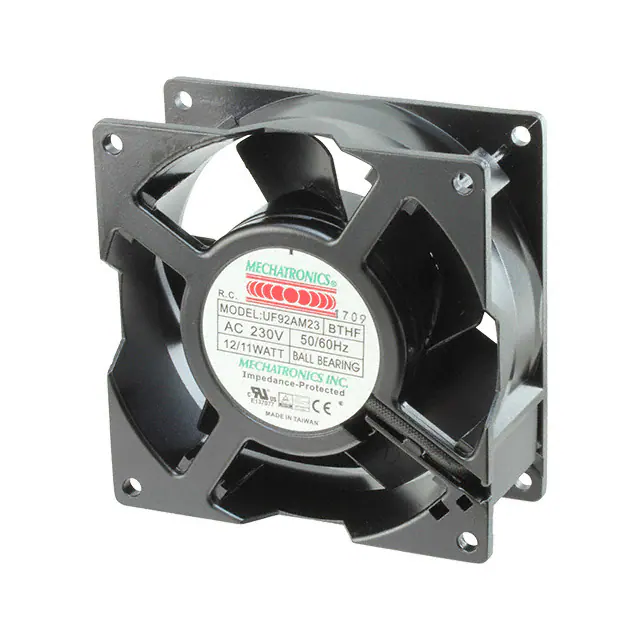

UF92AM23-BTHR-FFAN AXIAL 92X38MM 230VAC TERM |
6 | - |
|
数据表 |
UF92AM | Bulk | Active | 230VAC | Square - 92.5mm L x 92.5mm H | 51.0 CFM (1.43m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.948 lb (430.01 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 11.00W | CE, cUL, TUV, UL | 3300 RPM | -40 ~ 194°F (-40 ~ 90°C) | 2 Terminals | - |
|
|
OAB800AN-11-1WBFAN BLOWER 125X39MM 115VAC WIRE |
2 | - |
|
数据表 |
OAB800AN | Box | Active | 115VAC | Rectangular/Rounded - 125mm L x 126mm H | 30.0 CFM (0.840m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 1.2 lbs (544.3 g) | Blower | - | 39.00mm | 48.0dB | 18.00W | cURus, TUV | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
OA938AP-11-1TB1855FAN AXIAL 92X38MM 115VAC TERM |
55 | - |
|
数据表 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 55.0 CFM (1.54m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | - | 38.00mm | 40.0dB | 15.00W | cURus, TUV | 3150 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
