交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMF600-20B15AC/DC CONVERTER 15V 600W |
3 | - |
|
数据表 |
LMF600-20Bxx (600W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 600W | - | - | 80 ~ 277 VAC, 110 ~ 390 VDC | - | 40 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 4.00" L x 8.00" W x 1.60" H (101.6mm x 203.1mm x 40.6mm) | ||
|
GNT60-24GAC/DC CONVERTER 24V 60W |
0 | - |
|
数据表 |
GNT60 (65W) | Bulk | Obsolete | Open Frame | 1 | 24V | - | - | 60W | - | - | 100 ~ 240 VAC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.97" H (101.6mm x 50.8mm x 24.6mm) | ||
|
EPL150PS36AC/DC CONVERTER 36V 100W |
5 | - |
|
数据表 |
EPL150 (150W) | Box | Active | Open Frame | 1 | 36V | - | - | 100W (150W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.78 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) | ||
|
AMEOF350-48SHAMJZ-FAC/DC CONVERTER 48V 200W |
3 | - |
|
数据表 |
AMEOF350-HAMJZ (200W ) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 200W (350W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 373 VDC | - | 7.3 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.1mm x 35.1mm) | ||
|
AMEOF350-15SHAMJZ-FAC/DC CONVERTER 15V 180W |
3 | - |
|
数据表 |
AMEOF350-HAMJZ (180W ) | Box | Obsolete | Enclosed | 1 | 15V | - | - | 180W (325W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 373 VDC | - | 21.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.1mm x 35.1mm) | ||
|
|
AMEOF350-36SHAMJZ-FAC/DC CONVERTER 36V 200W |
3 | - |
|
数据表 |
AMEOF350-HAMJZ (200W ) | Box | Obsolete | Enclosed | 1 | 36V | - | - | 200W (350W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 373 VDC | - | 9.73 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.1mm x 35.1mm) | ||
|
|
AMEOF350-12SHAMJZ-FAC/DC CONVERTER 12V 180W |
3 | - |
|
数据表 |
AMEOF350-HAMJZ (180W ) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 180W (300W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 373 VDC | - | 25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.1mm x 35.1mm) | ||
|
ABC150-1T05GAC/DC CONVERTER 5V 110/150W |
0 | - |
|
数据表 |
ABC150 (150W) | Bulk | Obsolete | Open Frame | 1 | 5V | - | - | 110W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 16 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|

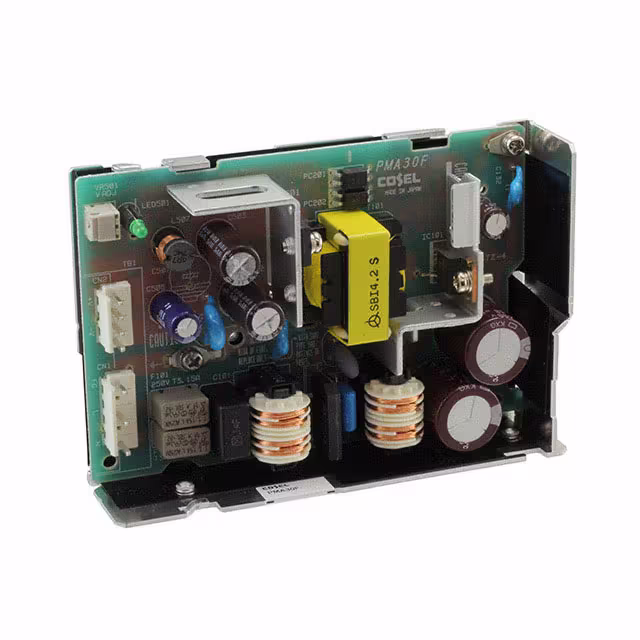

PMA30F-3R3AC/DC CONVERTER 3.3V |
2 | - |
|
数据表 |
PMA (30W) | Box | Active | Open Frame | 1 | 3.3V | - | - | - | - | - | 85 ~ 264 VAC | - | 6 A | - | - | Medical | - | - | - | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) | ||
|
|
LOF450-20B48-CENCLOSED AC DC CONVERTER 1 OUTPU |
5 | - |
|
数据表 |
LOF450-20Bxx-C(-CF) (450W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 254W (451W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 9.4 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
|
LOF450-20B24-CENCLOSED AC DC CONVERTER 1 OUTPU |
5 | - |
|
数据表 |
LOF450-20Bxx-C(-CF) (450W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 252W (450W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 18.75 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
|
LOF450-20B12-CENCLOSED AC DC CONVERTER 1 OUTPU |
4 | - |
|
数据表 |
LOF450-20Bxx-C(-CF) (450W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 250W (400W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 33.3 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|

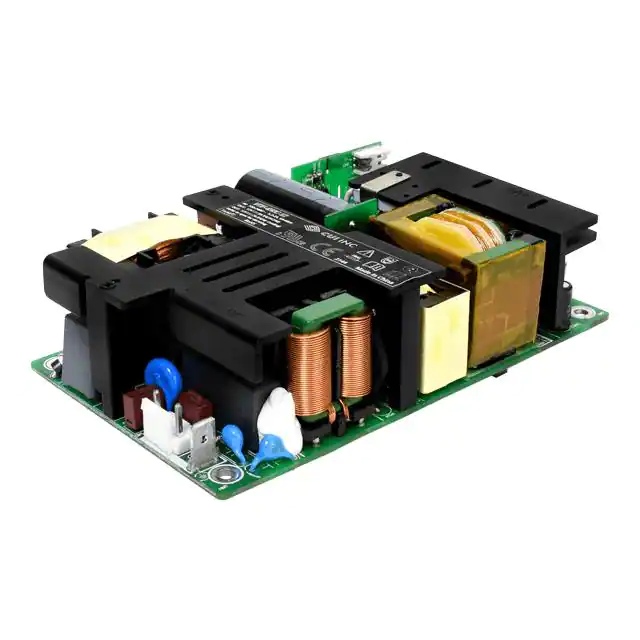

VOF-450C-27AC/DC CONVERTER 27V 451W |
11 | - |
|
数据表 |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 451W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 16.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
|

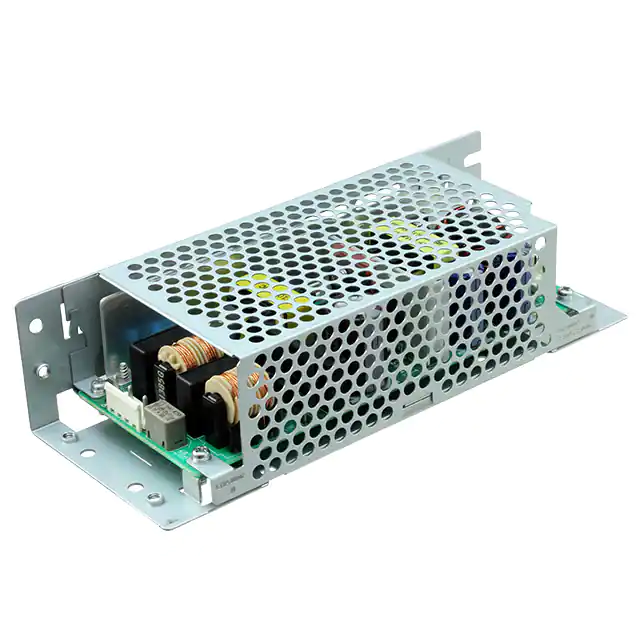

LFA100F-15-YAC/DC CONVERTER 15V |
5 | - |
|
数据表 |
LFA (100W) | Box | Active | Open Frame | 1 | 15V | - | - | - | - | - | 85 ~ 264 VAC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) | ||
|

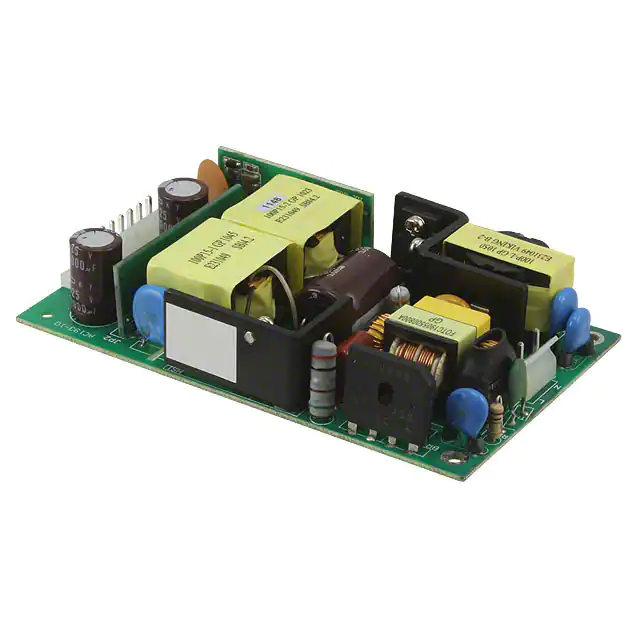

ZPSA100-9AC/DC CONVERTER 9V 100W |
9 | - |
|
数据表 |
ZPSA100 (100W) | Bulk | Obsolete | Open Frame | 1 | 9V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 11.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) | ||
|
LDA75F-15-YAC/DC CONVERTER 15V 75W |
3 | - |
|
数据表 |
LDA (75W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 75W | - | - | 85 ~ 264 VAC, 110 ~ 370 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) | ||
|
1011400GRN-45-2004 OVP |
10 | - |
|
数据表 |
GRN-45 (45W) | Box | Active | Open Frame | 2 | 15V | -15V | - | 45W | - | - | 85 ~ 264 VAC | - | 2 A | - | 2 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
|
1011399GRN-45-2003 OVP |
4 | - |
|
数据表 |
GRN-45 (45W) | Box | Active | Open Frame | 2 | 12V | -12V | - | 45W | - | - | 85 ~ 264 VAC | - | 2 A | - | 2 A | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|

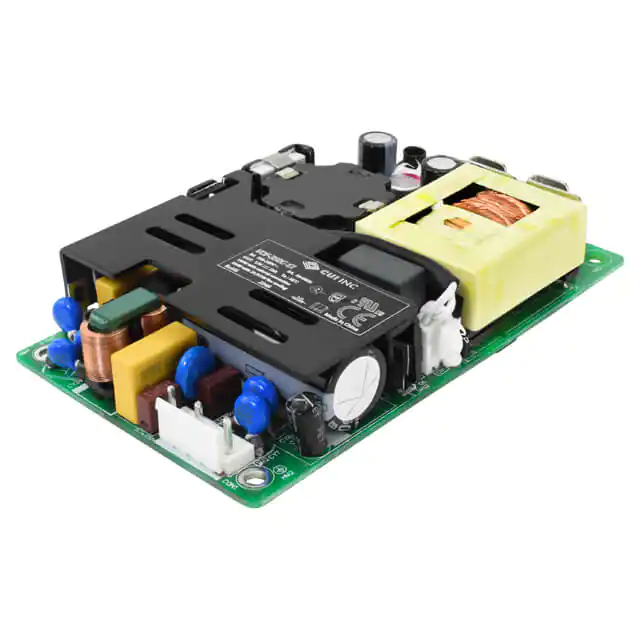

VOF-350C-27AC/DC CONVERTER 27V 351W |
2 | - |
|
数据表 |
VOF-350C (350W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 351W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 13 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
|
WLP350-1002-IIAC/DC CONVERTER 15V 180W |
22 | - |
|
数据表 |
WLP350 (350W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 180W (325W Forced Air) | - | - | 90 ~ 264 VAC, 390VDC | - | 12 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
