交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASM65-075-BET-0F0AC/DC CONVERTER 7.5V 65W |
7 | - |
|
数据表 |
ASM30 | Box | Active | Enclosed | 1 | 7.5V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 8.67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) | ||
|
MBC60-3001GAC/DC CNVRTR 5.2V 24V -12.8V 60W |
0 | - |
|
数据表 |
MBC60 (60W) | Bulk | Obsolete | Open Frame | 3 | 5.2V | 24V | -12.8V | 60W | - | - | 90 ~ 264 VAC | - | 8 A | - | 1.5 A | Medical | - | 500 mA | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
MBC60-3002GAC/DC CNVRTR 5.2V 14.6V -14.8V |
0 | - |
|
数据表 |
MBC60 (60W) | Bulk | Obsolete | Open Frame | 3 | 5.2V | 14.6V | -14.8V | 60W | - | - | 90 ~ 264 VAC | - | 8 A | - | 2.5 A | Medical | - | 500 mA | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
S8JX-G05048CDAC/DC CONVERTER 48V 50W |
5 | - |
|
数据表 |
S8JX-G (50W) | Bulk | Obsolete | Enclosed | 1 | 48V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | - | -10°C ~ 60°C | Load Sharing, Universal Input | Chassis Mount | 7.25" L x 5.90" W x 3.62" H (184.2mm x 150.0mm x 92.0mm) | ||
|

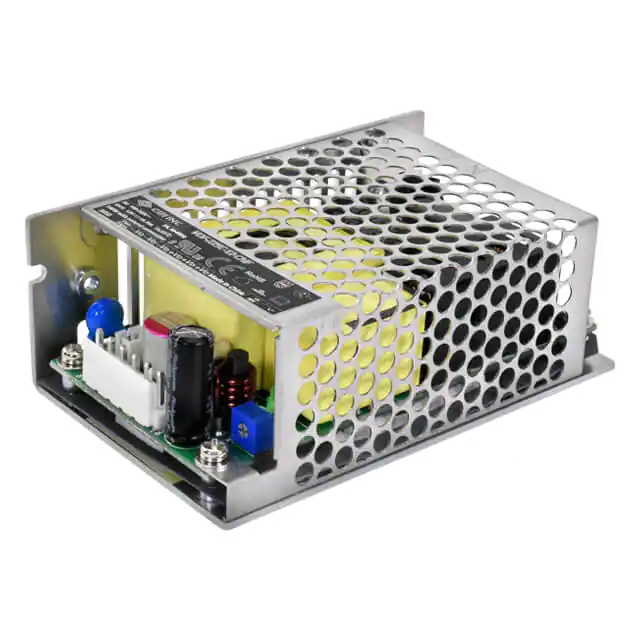

VOF-225C-15-CNFAC/DC CONVERTER 15V 225W |
14 | - |
|
数据表 |
VOF-225C-CNF (225W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 225W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
VMS-100-5AC/DC CONVERTER 5V 100W |
7 | - |
|
数据表 |
VMS-100 (100W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 100W | - | - | 90 ~ 264 VAC | - | 20 A | - | - | Medical | - | - | - | 5.656 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.7mm) | ||
|
1010395SRP-40A-1004 |
9 | - |
|
数据表 |
SRP-40A (40W) | Box | Active | Open Frame | 1 | 15V | - | - | 40W | - | - | 100 ~ 240 VAC | - | 2.67 A | - | - | Industrial, ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | ||
|
VOF-225C-27-CNFAC/DC CONVERTER 27V 225W |
8 | - |
|
数据表 |
VOF-225C-CNF (225W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 225W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.35 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
CFM260S360BAC/DC CONVERTER 36V 260W |
18 | - |
|
数据表 |
CFM260S (260W) | Box | Active | Open Frame | 1 | 36V | - | - | 260W | - | - | 85 ~ 264 VAC | - | 7.22 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) | ||
|
AMESP200U-24S277JZAC/DC Converter 25.2V 201.6W |
2 | - |
|
数据表 |
AMESP200U-277JZ (200W) | Bulk | Obsolete | Enclosed | 1 | 24V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 8.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.71" L x 2.16" W x 1.02" H (195.8mm x 54.9mm x 25.9mm) | ||
|
AMESP200U-48S277JZAC/DC Converter 50.4V 201.6W |
2 | - |
|
数据表 |
AMESP200U-277JZ (200W) | Bulk | Obsolete | Enclosed | 1 | 48V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.71" L x 2.16" W x 1.02" H (195.8mm x 54.9mm x 25.9mm) | ||
|
AMESP200U-12S277JZAC/DC Converter 12.6V 200.4W |
2 | - |
|
数据表 |
AMESP200U-277JZ (200W) | Bulk | Obsolete | Enclosed | 1 | 12V | - | - | 200W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 16.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.71" L x 2.16" W x 1.02" H (195.8mm x 54.9mm x 25.9mm) | ||
|

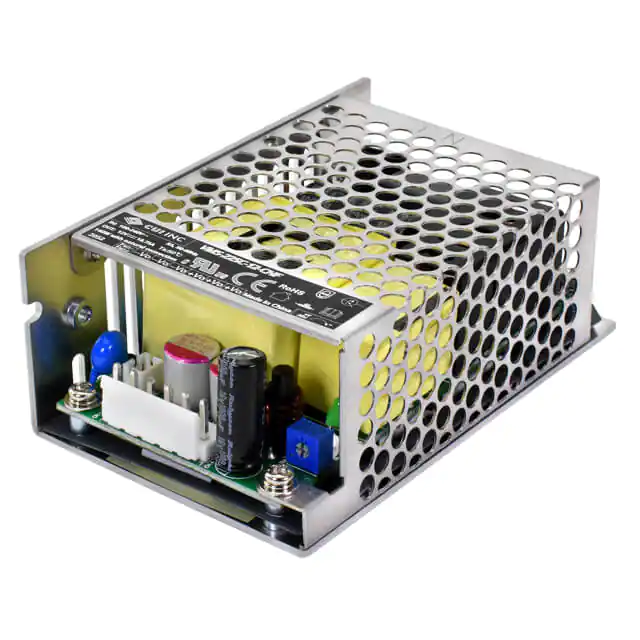

VMS-225C-27-CNFAC/DC CONVERTER 27V 225W |
10 | - |
|
数据表 |
VMS-225C-CNF (225W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 225W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.35 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
LOP-400-1280-264VAC O/P +12V33.3A |
0 | - |
|
数据表 |
LOP-400 (400W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 250W (400W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 20.8 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm) | ||
|
USP-150-48AC/DC CONVERTER 48V 154W |
3 | - |
|
数据表 |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 154W | - | - | 90 ~ 295 VAC, 127 ~ 417 VDC | - | 3.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) | ||
|
SWF150P-48AC/DC CONVERTER 48V 150W |
24 | - |
|
数据表 |
SWF150P (150W) | Bulk | Obsolete | Open Frame | 1 | 48V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 3.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|
LEA50F-12-SNYAC/DC CONVERTER 12V 50W |
5 | - |
|
数据表 |
LEA (50W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.86" L x 2.56" W x 1.42" H (225.0mm x 65.0mm x 36.0mm) | ||
|
CUS100ME-36/UAC/DC CONVERTER 36V 100W |
8 | - |
|
数据表 |
CUS100ME (100W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 100W | - | - | 85 ~ 264 VAC | - | 2.77 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.57" H (116.0mm x 64.0mm x 39.7mm) | ||
|
MSD30US12BISOLATED / 30W / VOUT: 12 |
3 | - |
|
数据表 |
MSD30 (30W) | Box | Active | Enclosed | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.95" L x 1.50" W x 1.00" H (100.3mm x 38.1mm x 25.4mm) | ||
|
LCA75S-3AC/DC PS (OPEN FRAME) |
3 | - |
|
数据表 |
LCA (75W) | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
