交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FSA150015AAC/DC CONVERTER 15V 150W |
5 | - |
|
数据表 |
FSA150 (150W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 30.9mm) | ||
|
MK75S-15AC/DC CONVERTER 15V 75W |
15 | - |
|
数据表 |
MK75S (75W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 75W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 5.656 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | - | ||
|

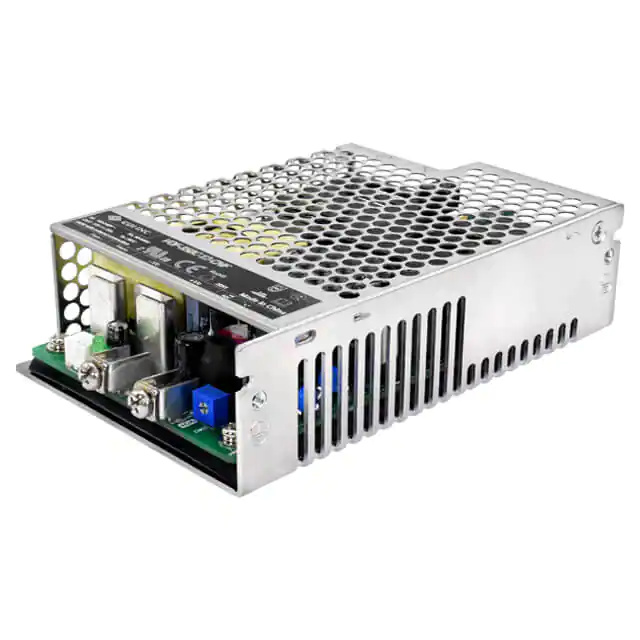

VOF-350C-27-CNFAC/DC CONVERTER 27V 351W |
10 | - |
|
数据表 |
VOF-350C-CNF (350W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 351W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 13 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.0mm x 35.0mm) | ||
|
VOF-350C-15-CNFAC/DC CONVERTER 15V 325W |
5 | - |
|
数据表 |
VOF-350C-CNF (350W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 325W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 21.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.0mm x 35.0mm) | ||
|
1011261GRN-45-4001 |
16 | - |
|
数据表 |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 3.3V | 5V | 12V | 45W | -12V | - | 85 ~ 264 VAC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 1 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011263GRN-45-4003 |
6 | - |
|
数据表 |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 5V | 24V | 12V | 45W | -12V | - | 85 ~ 264 VAC | - | 5 A | - | 1 A | ITE (Commercial), Medical | - | 1 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011262GRN-45-4002 |
4 | - |
|
数据表 |
GRN-45 (45W) | Box | Active | Open Frame | 4 | 5V | -5V | 12V | 45W | -12V | - | 85 ~ 264 VAC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 1 A | 1 A | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
AMESP350U-48S277JZAC/DC Converter 50.4V 350.4W |
2 | - |
|
数据表 |
AMESP350U-277JZ (350W) | Bulk | Obsolete | Enclosed | 1 | 48V | - | - | 351W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 7.32 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
AOJS50-48AC/DC CONVERTER 48V 53W |
6 | - |
|
数据表 |
AOJS50 (50W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 53W | - | - | 88 ~ 264 VAC, 125 ~ 370 VDC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
AOJS50-12AC/DC CONVERTER 12V 50W |
3 | - |
|
数据表 |
AOJS50 (50W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 50W | - | - | 88 ~ 264 VAC, 125 ~ 370 VDC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
AOJS50-05AC/DC CONVERTER 5V 50W |
2 | - |
|
数据表 |
AOJS50 (50W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 88 ~ 264 VAC, 125 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
AOJS50-15AC/DC CONVERTER 15V 53W |
2 | - |
|
数据表 |
AOJS50 (50W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 53W | - | - | 88 ~ 264 VAC, 125 ~ 370 VDC | - | 3.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
AOJS50-3.3AC/DC CONVERTER 3.3V 33W |
2 | - |
|
数据表 |
AOJS50 (50W) | Bulk | Active | Enclosed | 1 | 3.3V | - | - | 33W | - | - | 88 ~ 264 VAC, 125 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
1011279GRN-80-1003 |
11 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 12V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 6.7 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011281GRN-80-1005 |
10 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 24V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 3.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011282GRN-80-1006 |
7 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 28V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 2.9 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011283GRN-80-1007 |
3 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 48V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
1011277GRN-80-1001 |
2 | - |
|
数据表 |
GRN-80 (80W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 80W | - | - | 85 ~ 264 VAC | - | 16 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | ||
|
|
LFA100F-12-SNAC/DC CONVERTER 12V 100W |
2 | - |
|
数据表 |
LFA (100W) | Box | Active | Enclosed | 1 | 12V | - | - | 100W | - | - | 85 ~ 264 VAC | - | 8.5 A | - | - | ITE (Commercial) | - | - | - | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | ||
|
ULP180-1048AC/DC CONVERTER 48V 120W |
4 | - |
|
数据表 |
ULP180 (180W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 120W (180W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) |
