交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|

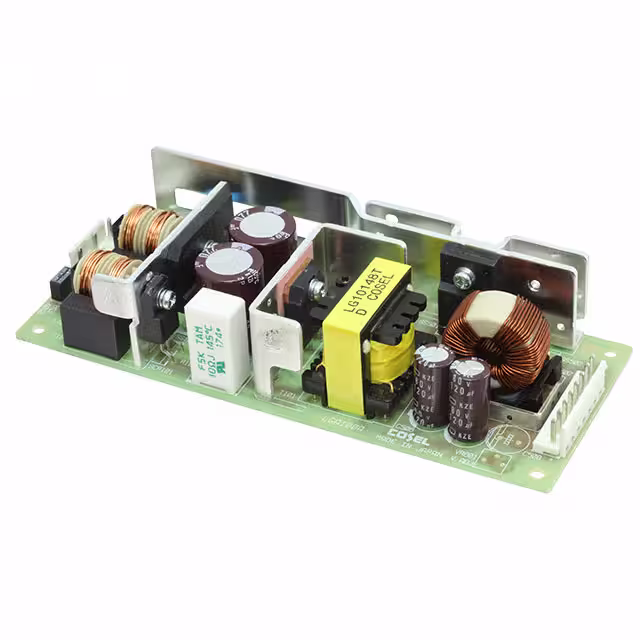

LGA100A-48AC/DC CONVERTER 48V |
2 | - |
|
数据表 |
LGA (100W) | Box | Active | Open Frame | 1 | 48V | - | - | - | - | - | 85 ~ 132 VAC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) | ||
|
ZWS100AF-48AC/DC CONVERTER 48V 100W |
8 | - |
|
数据表 |
ZWS-AF (100W) | Bulk | Obsolete | Open Frame | 1 | 48V | - | - | 100W | - | - | 85 ~ 265 VAC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) | ||
|

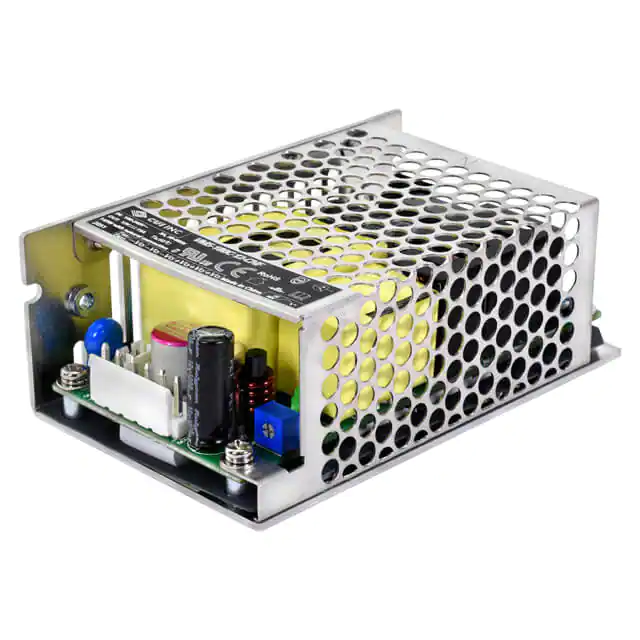

VMS-180C-36-CNFAC/DC CONVERTER 36V 180W |
18 | - |
|
数据表 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 180W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
VMS-180C-27-CNFAC/DC CONVERTER 27V 180W |
16 | - |
|
数据表 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 180W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.66 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
VMS-180C-15-CNFAC/DC CONVERTER 15V 180W |
13 | - |
|
数据表 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 180W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|

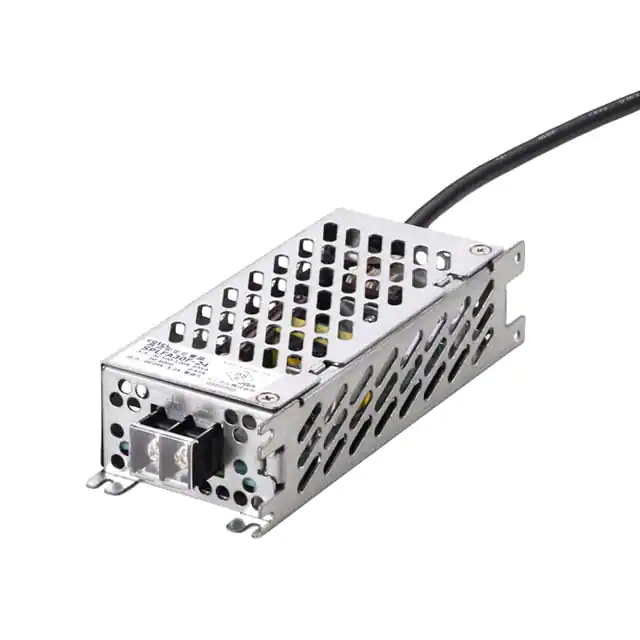

SPLFA30F-5AC/DC CONVERTER 5V |
2 | - |
|
数据表 |
SPLFA (30W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | - | - | - | 85 ~ 264 VAC | - | 6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 2.40" W x 1.42" H (150.1mm x 61.0mm x 36.1mm) | ||
|
SP-100-48AC/DC CONVERTER 48V 101W |
8 | - |
|
数据表 |
SP-100 (100W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 101W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.77" H (179.0mm x 99.0mm x 45.0mm) | ||
|
LGA100A-5-YAC/DC CONVERTER 5V |
4 | - |
|
数据表 |
LGA (100W) | Box | Active | Open Frame | 1 | 5V | - | - | - | - | - | 85 ~ 132 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) | ||
|

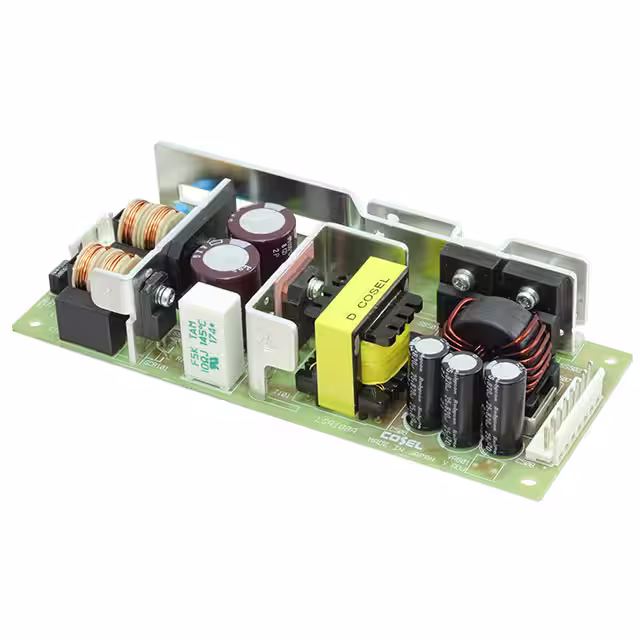

LGA100A-3R3-YAC/DC CONVERTER 3.3V |
2 | - |
|
数据表 |
LGA (100W) | Box | Active | Open Frame | 1 | 3.3V | - | - | - | - | - | 85 ~ 132 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.40" H (154.9mm x 62.0mm x 35.6mm) | ||
|
ECL30UD01-TAC/DC CONVERTER +/-12V 30W |
18 | - |
|
数据表 |
ECL (30W) | Box | Active | Open Frame | 2 | 12V | -12V | - | 30W | - | - | 85 ~ 264 VAC | - | 1.3 A | - | 1.3 A | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) | ||
|
VMS-180C-48-CNFAC/DC CONVERTER 48V 180W |
5 | - |
|
数据表 |
VMS-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 180W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
1010422SRP-25-2004 |
18 | - |
|
数据表 |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 12V | -12V | - | 25W | - | - | 100 ~ 240 VAC | - | 1.5 A | - | 1.5 A | Industrial, ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
|
1010419SRP-25-2001 |
15 | - |
|
数据表 |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 5V | 24V | - | 25W | - | - | 100 ~ 240 VAC | - | 3 A | - | 1 A | Industrial, ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
|
1010423SRP-25-2005 |
13 | - |
|
数据表 |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 15V | -15V | - | 25W | - | - | 100 ~ 240 VAC | - | 1.5 A | - | 1.5 A | Industrial, ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
|
1010421SRP-25-2003 |
10 | - |
|
数据表 |
SRP-25 (25W) | Box | Active | Open Frame | 2 | 5V | -5V | - | 25W | - | - | 100 ~ 240 VAC | - | 3 A | - | 2 A | Industrial, ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.25" W x 1.00" H (101.6mm x 57.2mm x 25.4mm) | ||
|
ABC150-1T15GAC/DC CONVERTER 15V 110/150W |
48 | - |
|
数据表 |
ABC150 (150W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 110W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
|
ABC150-1T12GAC/DC CONVERTER 12V 110/150W |
40 | - |
|
数据表 |
ABC150 (150W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 110W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
MAD65US05DAC/DC CONVERTER 5V 50W |
5 | - |
|
数据表 |
MAD65 Single (65W) | Box | Active | Open Frame | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 23.9mm) | ||
|

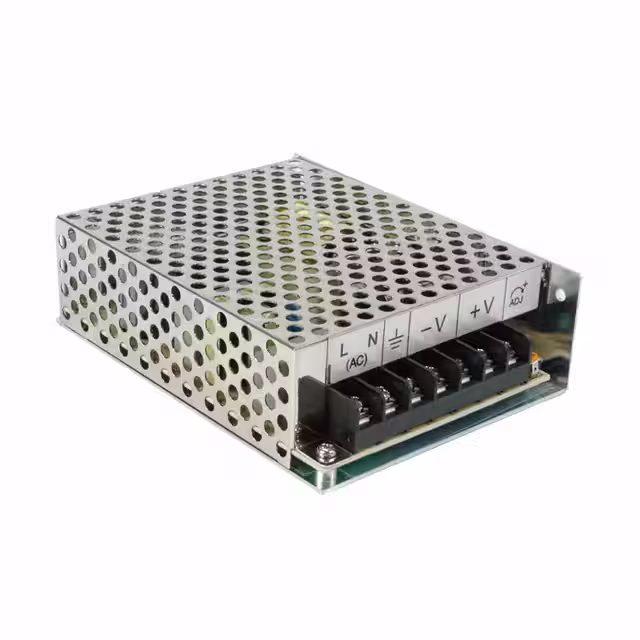

VGS-100-3.3AC/DC CONVERTER 3.3V 100W |
0 | - |
|
数据表 |
VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 3.3V | - | - | 100W | - | - | 88 ~ 264 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) | ||
|
VOF-200C-15-CNFAC/DC CONVERTER 15V 200W |
15 | - |
|
数据表 |
VOF-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
