交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMF500-23B24UHAC/DC CONVERTER 24V 502W |
2 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 502W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 20.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
|

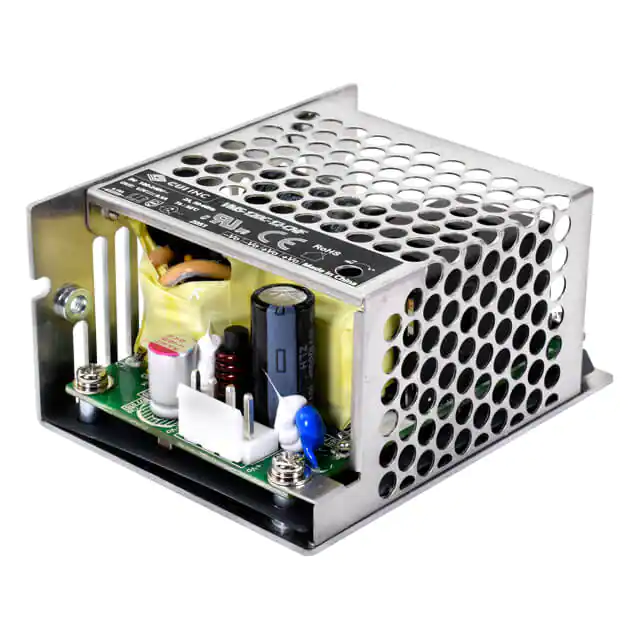

VMS-120C-48-CNFAC/DC CONVERTER 48V 120W |
7 | - |
|
数据表 |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
|
VMS-120C-15-CNFAC/DC CONVERTER 15V 114W |
5 | - |
|
数据表 |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 114W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.6 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
VMS-200C-15AC/DC CONVERTER 15V 200W |
22 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13.3 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
VMS-200C-36AC/DC CONVERTER 36V 200W |
10 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 36V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5.56 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
VMS-200C-24AC/DC CONVERTER 24V 200W |
7 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.33 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
LMF200-23B15-QAC/DC CONVERTER 15V 201W |
9 | - |
|
数据表 |
LMF200-23Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 201W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
|
LMF200-23B48-CAC/DC CONVERTER 48V 202W |
5 | - |
|
数据表 |
LMF200-23Bxx-C (200W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
|
VMS-120C-27-CNFAC/DC CONVERTER 27V 120W |
8 | - |
|
数据表 |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 27V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.44 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
VOF-120C-15-CNFAC/DC CONVERTER 15V 114W |
7 | - |
|
数据表 |
VOF-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 114W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
VOF-130-36-CNFAC/DC CONVERTER 36V 130W |
3 | - |
|
数据表 |
VOF-130-CNF(130W) | Tray | Active | Enclosed | 1 | 36V | - | - | 130W | - | - | 80 ~ 264 VAC | - | 3.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | PFC | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) | ||
|

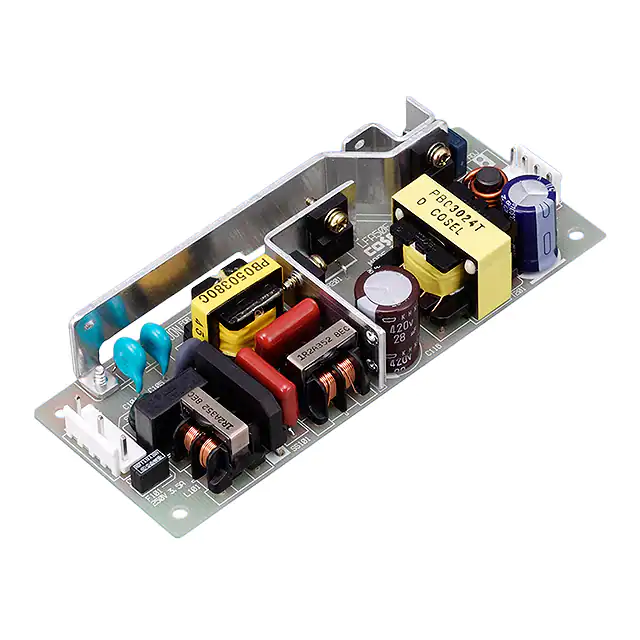

LFA50F-15AC/DC CONVERTER 15V |
6 | - |
|
数据表 |
LFA (50W) | Box | Active | Open Frame | 1 | 15V | - | - | - | - | - | 85 ~ 264 VAC | - | 3.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 5.20" L x 1.97" W x 1.04" H (132.1mm x 50.0mm x 26.4mm) | ||
|
VOF-200C-12AC/DC CONVERTER 12V 199W |
12 | - |
|
数据表 |
VOF-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 199W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 16.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
VMS-120C-12-CNFAC/DC CONVERTER 12V 114W |
7 | - |
|
数据表 |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 114W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.5 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
|
VMS-120C-36-CNFAC/DC CONVERTER 36V 120W |
2 | - |
|
数据表 |
VMS-120C-CNF (120W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.33 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) | ||
|
|
VMS-200C-48AC/DC CONVERTER 48V 200W |
16 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.16 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
|
VOF-200C-24AC/DC CONVERTER 24V 200W |
6 | - |
|
数据表 |
VOF-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.33 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
AMESP320-48S277NZAC/DC CONVERTER 48V 322W |
6 | - |
|
数据表 |
AMESP320-NZ (322W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 322W | - | - | 85 ~ 264 VAC, 120 ~ 430 VDC | - | 6.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) | ||
|
|
AMESP320-24S277NZAC/DC CONVERTER 24V 322W |
2 | - |
|
数据表 |
AMESP320-NZ (322W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 322W | - | - | 85 ~ 264 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) | ||
|
|
VMS-200C-12AC/DC CONVERTER 12V 199W |
7 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 199W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 16.6 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
