交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

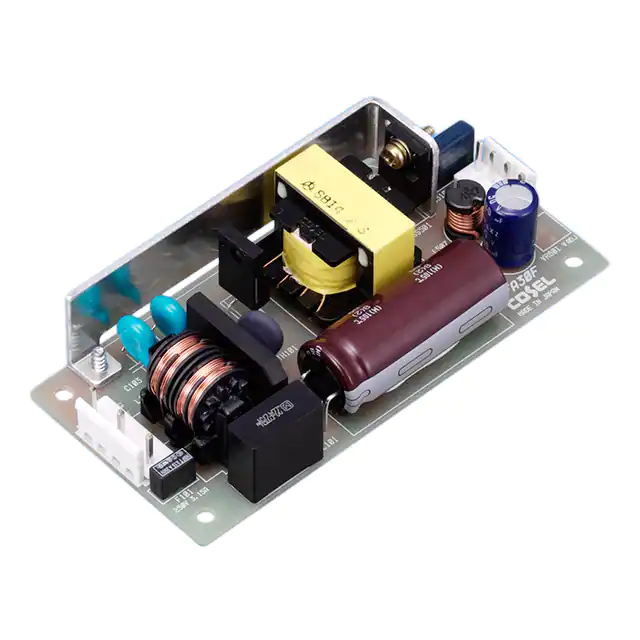

LFA30F-15-J1YAC/DC CONVERTER 15V |
91 | - |
|
数据表 |
LFA (30W) | Box | Active | Open Frame | 1 | 15V | - | - | - | - | - | 85 ~ 264 VAC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 4.13" L x 1.97" W x 1.04" H (104.9mm x 50.0mm x 26.4mm) | ||
|

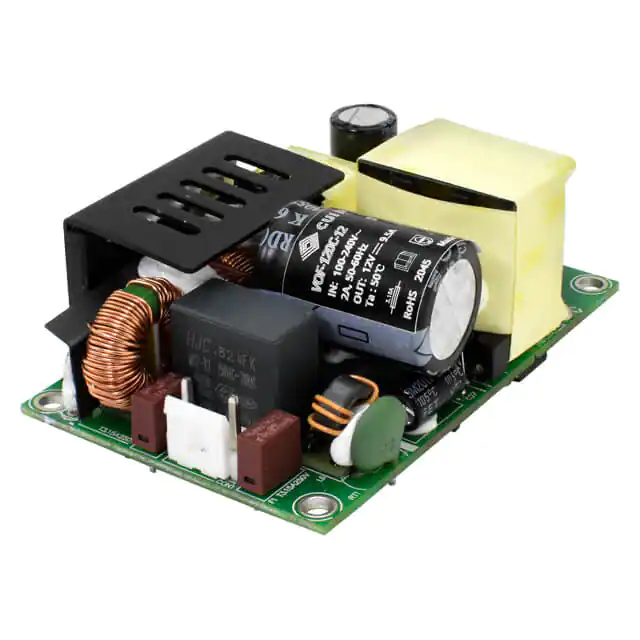

VOF-120C-27AC/DC CONVERTER 27V 120W |
15 | - |
|
数据表 |
VOF-120C (120W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.44 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
|
VOF-120C-12AC/DC CONVERTER 12V 114W |
8 | - |
|
数据表 |
VOF-120C (120W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 114W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
VGS-150D-12-AAC/DC CONVERTER 12V 150W |
13 | - |
|
数据表 |
VGS-150D | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
|
VGS-150D-24-AAC/DC CONVERTER 24V 151W |
34 | - |
|
数据表 |
VGS-150D | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 151W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
MAD30US24BAC/DC CONVERTER 24V 30W |
6 | - |
|
数据表 |
MAD30 (30W) | Box | Active | Open Frame | 1 | 24V | - | - | 30W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) | ||
|

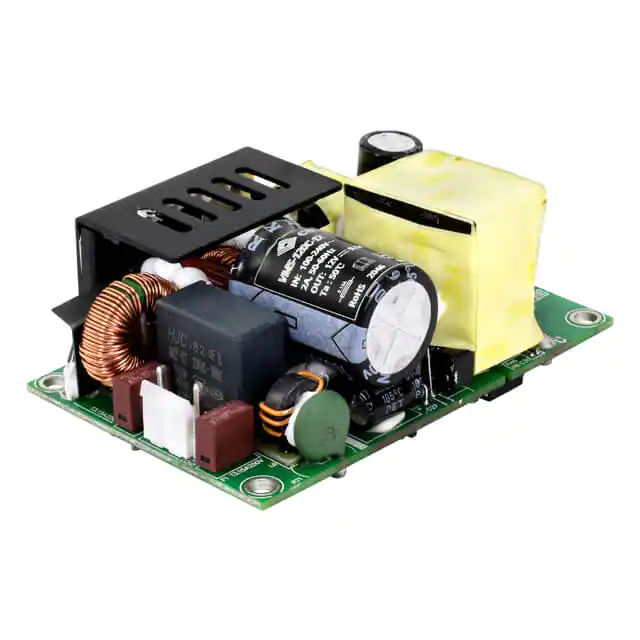

VMS-120C-27AC/DC CONVERTER 27V 120W |
16 | - |
|
数据表 |
VMS-120C (120W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.44 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
ASM30-240-BEH-0F0AC/DC CONVERTER 24V 30W |
53 | - |
|
数据表 |
ASM30 | Box | Active | Enclosed | 1 | 24V | - | - | 30W | - | - | 80 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C | - | - | 3.25" L x 2.08" W x 1.20" H (82.5mm x 52.8mm x 30.5mm) | ||
|
|
ASM30-280-BEH-0F0AC/DC CONVERTER 28V 30W |
17 | - |
|
数据表 |
ASM30 | Box | Active | Enclosed | 1 | 28V | - | - | 30W | - | - | 80 ~ 264 VAC | - | 1.07 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C | - | - | 3.25" L x 2.08" W x 1.20" H (82.5mm x 52.8mm x 30.5mm) | ||
|
LCW150PS24AC/DC CONVERTER 24V 151W |
65 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 151W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
|
LCW150PS12AC/DC CONVERTER 12V 150W |
27 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-200D-5AC/DC CONVERTER 5V 200W |
22 | - |
|
数据表 |
VGS-200D (201W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 200W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 40 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

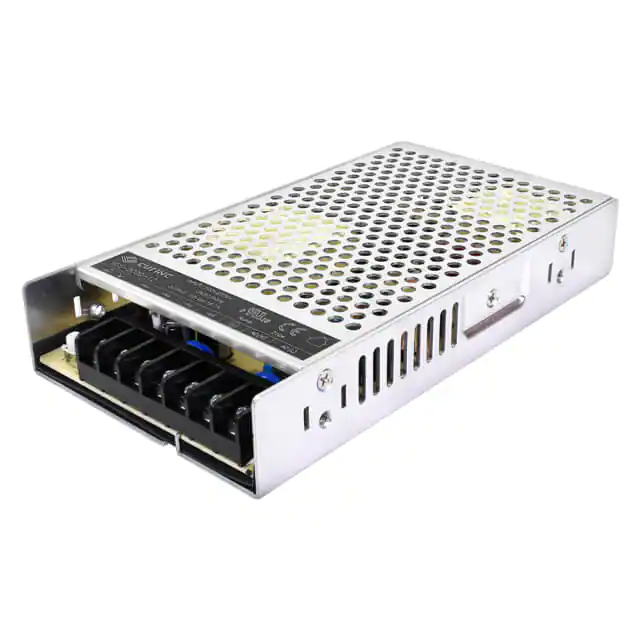

VGS-200D-24AC/DC CONVERTER 24V 202W |
22 | - |
|
数据表 |
VGS-200D (201W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 8.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
LM350-10B12-CAC/DC CONVERTER 12V 348W |
14 | - |
|
数据表 |
LM350-10Bxx-C (350W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 348W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 29 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
LCA30S-15-YAC/DC CONVERTER 15V 30W |
9 | - |
|
数据表 |
LCA (30W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 30W | - | - | 85 ~ 132 VAC, 110 ~ 170 VDC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 60°C (With Derating) | Adjustable Output | Chassis Mount | 5.22" L x 1.97" W x 0.91" H (132.5mm x 50.0mm x 23.0mm) | ||
|

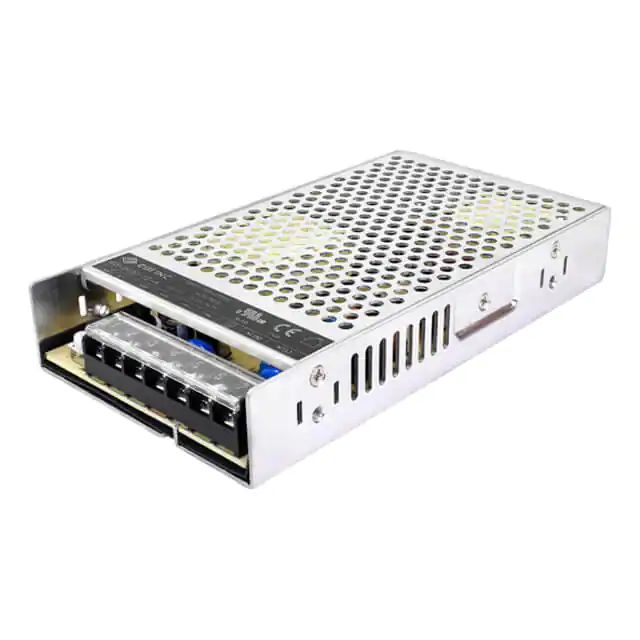

VGS-200D-12-AAC/DC CONVERTER 12V 200W |
8 | - |
|
数据表 |
VGS-200D (201W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 200W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 16.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
|
VOF-120C-48AC/DC CONVERTER 48V 120W |
36 | - |
|
数据表 |
VOF-120C (120W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
MSC15US12DISOLATED / 15W / VOUT: 12 |
10 | - |
|
数据表 |
MSC15 (15W) | Box | Active | Enclosed | 1 | 12V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.82" L x 1.14" W x 0.82" H (71.6mm x 28.9mm x 20.9mm) | ||
|
VMS-40-3.3AC/DC CONVERTER 3.3V 40W |
0 | - |
|
数据表 |
VMS-40 (40W) | Bulk | Active | Open Frame | 1 | 3.3V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 6 A | - | - | Medical | - | - | - | 5.656 kV | 0°C ~ 70°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) | ||
|
|
VMS-120C-48AC/DC CONVERTER 48V 120W |
16 | - |
|
数据表 |
VMS-120C (120W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) |
