交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMESP150-24S277NZAC/DC CONVERTER 24V 151W |
6 | - |
|
数据表 |
AMESP150-277NZ (151W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 151W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.1mm x 99.1mm x 30.0mm) | ||
|

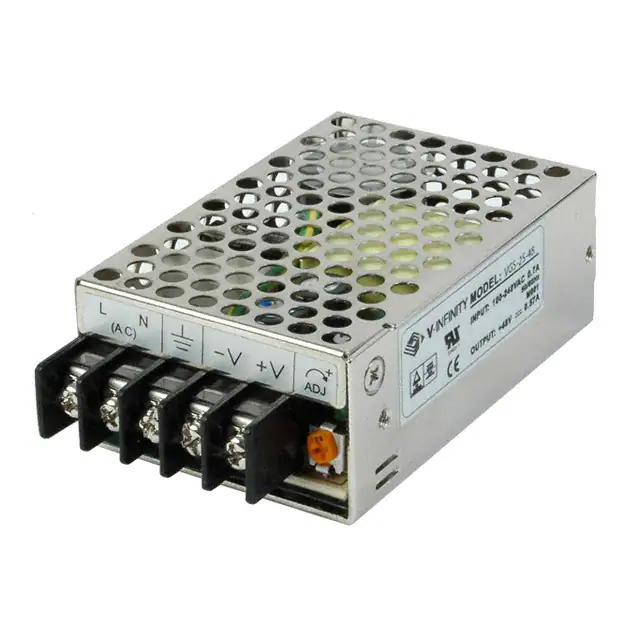

VGS-25-12AC/DC CONVERTER 12V 25W |
0 | - |
|
数据表 |
VGS-25 (27W) | Bulk | Obsolete | Enclosed | 1 | 12V | - | - | 25W | - | - | 88 ~ 264 VAC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) | ||
|
LFMWLT40-1004AC/DC CONVERTER 48V 40W |
31 | - |
|
数据表 |
MWLT40 (40W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 830 mA | - | - | Medical | - | - | - | 5.7 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
|
GECA40-24GAC/DC CONVERTER 24V 40W |
32 | - |
|
数据表 |
GECA40 (40W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 45°C | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
LFMWLT40-1001AC/DC CONVERTER 12V 42W |
33 | - |
|
数据表 |
MWLT40 (40W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 42W | - | - | 90 ~ 264 VAC | - | 3.5 A | - | - | Medical | - | - | - | 5.7 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
|
EPM15-240-BC-0F0AC/DC CONVERTER 24V 15W |
56 | - |
|
数据表 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 24V | - | - | 15W | - | - | 80 ~ 275 VAC | - | 630 mA | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | ||
|
EPM15-150-BC-0F0AC/DC CONVERTER 15V 15W |
50 | - |
|
数据表 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 15V | - | - | 15W | - | - | 80 ~ 275 VAC | - | 1 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | ||
|
EPM15-033-BC-0F0AC/DC CONVERTER 3.3V 10W |
36 | - |
|
数据表 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 10W | - | - | 80 ~ 275 VAC | - | 3 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | ||
|
EPM15-180-BC-0F0AC/DC CONVERTER 18V 15W |
32 | - |
|
数据表 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 18V | - | - | 15W | - | - | 80 ~ 275 VAC | - | 830 mA | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | ||
|
EPM15-090-BC-0F0AC/DC CONVERTER 9V 15W |
31 | - |
|
数据表 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 9V | - | - | 15W | - | - | 80 ~ 275 VAC | - | 1.67 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | ||
|
AMESP100-24S277NZAC/DC CONVERTER 24V 101W |
8 | - |
|
数据表 |
AMESP100-277NZ (101W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 101W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.1mm x 99.1mm x 30.0mm) | ||
|

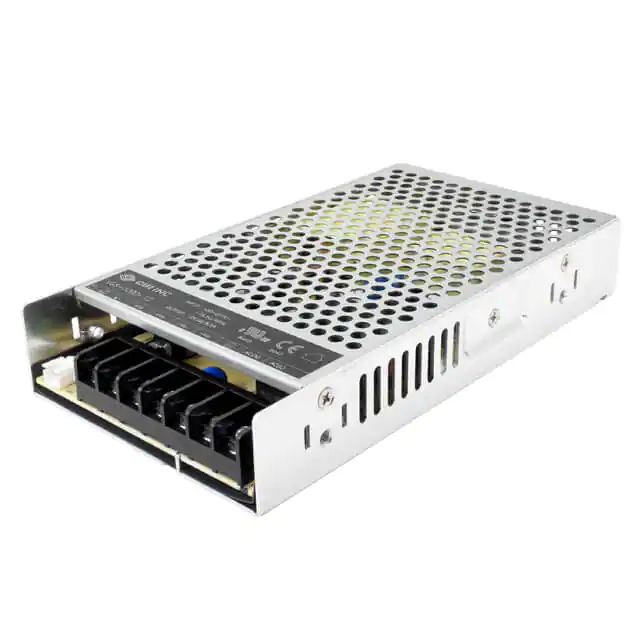

VGS-100D-48AC/DC CONVERTER 48V 101W |
24 | - |
|
数据表 |
VGS-100D | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 101W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-100D-12AC/DC CONVERTER 12V 102W |
23 | - |
|
数据表 |
VGS-100D | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-100D-15AC/DC CONVERTER 15V 101W |
25 | - |
|
数据表 |
VGS-100D | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 101W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|

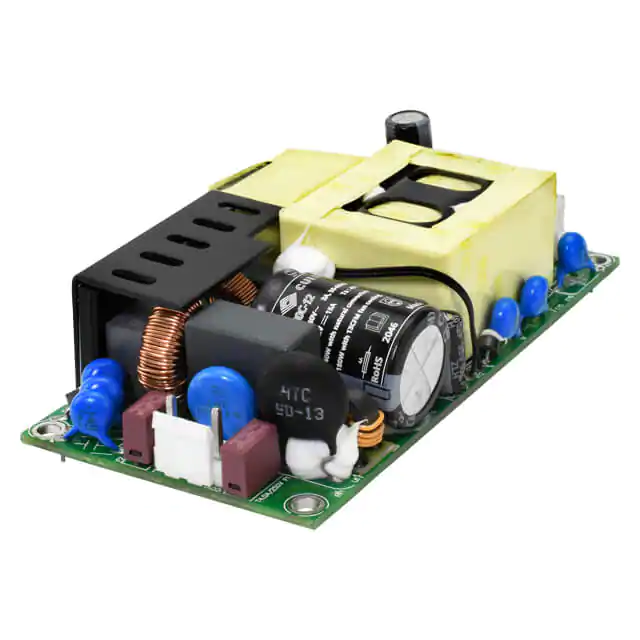

VOF-180C-15AC/DC CONVERTER 15V 180W |
27 | - |
|
数据表 |
VOF-180C (180W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 180W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
LMF150-23B15AC/DC CONVERTER 15V 150W |
17 | - |
|
数据表 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
Switching Power Supply ALRS12V40ATAC/DC CONVERTER 12V 480W |
14 | - |
|
数据表 |
- | Bulk | Active | Enclosed | 1 | 12V | - | - | 480W | - | - | 90 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | ||
|
VCS100US05AC/DC CONVERTER 5V 70W |
20 | - |
|
数据表 |
VCS (100W) | Box | Active | Enclosed | 1 | 5V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 14 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.87" W x 1.65" H (159.0mm x 98.2mm x 42.0mm) | ||
|
AMESP100-48S277NZAC/DC CONVERTER 48V 101W |
6 | - |
|
数据表 |
AMESP100-277NZ (101W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 101W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.1mm x 99.1mm x 30.0mm) | ||
|
|
LGA50A-5-YAC/DC CONVERTER 5V |
11 | - |
|
数据表 |
LGA (50W) | Box | Active | Open Frame | 1 | 5V | - | - | - | - | - | 85 ~ 132 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.20" L x 1.97" W x 1.12" H (132.1mm x 50.0mm x 28.4mm) |
