交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VMS-200C-27AC/DC CONVERTER 27V 200W |
23 | - |
|
数据表 |
VMS-200C (200W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.4 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
VGS-350C-12AC/DC CONVERTER 12V 348W |
10 | - |
|
数据表 |
VGS-350C | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 348W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | - | 29 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
LM350-10B24-QAC/DC CONVERTER 24V 350W |
7 | - |
|
数据表 |
LM350-10Bxx-Q (350W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 350W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 14.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
LMF75-20B48-CAC/DC CONVERTER 48V 77W |
14 | - |
|
数据表 |
LMF75-20Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 77W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LFMWLT60-1000AC/DC CONVERTER 5.1V 51W |
15 | - |
|
数据表 |
MWLT60 (60W) | Bulk | Active | Open Frame | 1 | 5.1V | - | - | 51W | - | - | 90 ~ 264 VAC | - | 10 A | - | - | Medical | - | - | - | 5.7 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | ||
|
VOF-100C-48AC/DC CONVERTER 48V 100W |
18 | - |
|
数据表 |
VOF-100C (100W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.08 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
VOF-100C-27AC/DC CONVERTER 27V 100W |
17 | - |
|
数据表 |
VOF-100C (100W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
LMF200-23B15AC/DC CONVERTER 15V 201W |
54 | - |
|
数据表 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 201W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
LMF200-23B48AC/DC CONVERTER 48V 202W |
21 | - |
|
数据表 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|

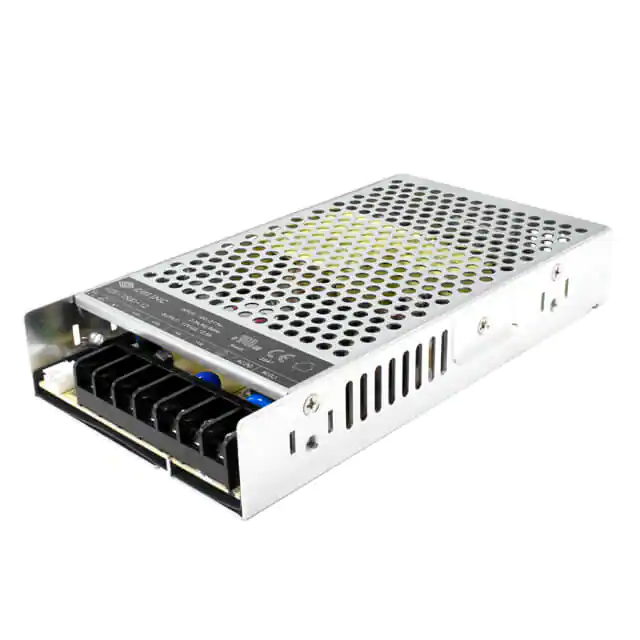

VGS-150D-15AC/DC CONVERTER 15V 150W |
19 | - |
|
数据表 |
VGS-150D | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
PM101-12AAC/DC CONVERTER 12V 80W |
64 | - |
|
数据表 |
PM101 (101W) | Box | Active | Open Frame | 1 | 12V | - | - | 80W | - | - | 80 ~ 264 VAC | - | 6.67 A | - | - | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) | ||
|
PM101-14AAC/DC CONVERTER 24V 100W |
25 | - |
|
数据表 |
PM101 (101W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W | - | - | 80 ~ 264 VAC | - | 4.174 A | - | - | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) | ||
|
VMS-100C-48AC/DC CONVERTER 48V 100W |
18 | - |
|
数据表 |
VMS-100C (100W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.08 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
VMS-100C-15AC/DC CONVERTER 15V 100W |
17 | - |
|
数据表 |
VMS-100C (100W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.66 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
LCW150PS48AC/DC CONVERTER 48V 154W |
25 | - |
|
数据表 |
LCW150 (150W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 154W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VMS-100C-36AC/DC CONVERTER 36V 100W |
26 | - |
|
数据表 |
VMS-100C (100W) | Tray | Not For New Designs | Open Frame | 1 | 36V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.78 A | - | - | Household Appliances, Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.38" H (76.2mm x 50.8mm x 35.1mm) | ||
|
VGS-150D-12-BAC/DC CONVERTER 12V 150W |
37 | - |
|
数据表 |
VGS-150D | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-320D-15AC/DC CONVERTER 15V 321W |
9 | - |
|
数据表 |
VGS-320D | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 321W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 21.4 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
|
SWG150-05AC/DC CONVERTER 5V 150W |
18 | - |
|
数据表 |
SWG150 (150W) | Bulk | Obsolete | Open Frame | 1 | 5V | - | - | 150W | - | - | 85 ~ 264 VAC | - | 30 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 6.61" L x 1.34" W x 3.66" H (168.0mm x 34.0mm x 93.0mm) | ||
|

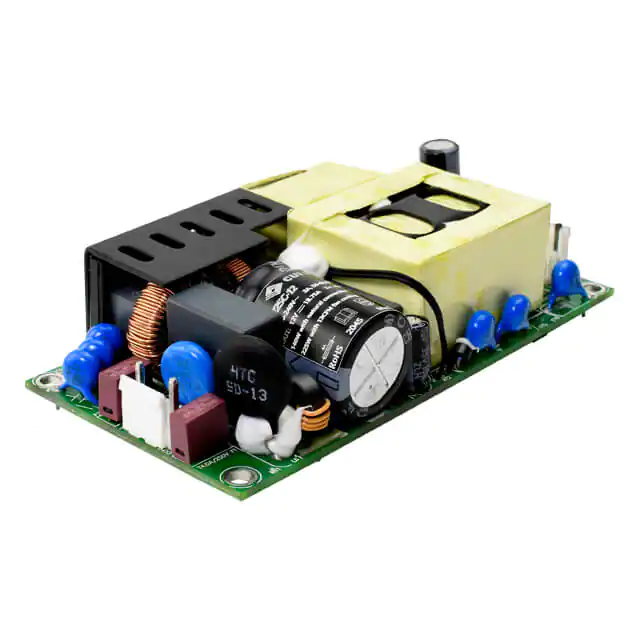

VOF-225C-27AC/DC CONVERTER 27V 225W |
20 | - |
|
数据表 |
VOF-225C (225W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 225W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.35 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
