交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-10D0512-30AC/DC CONVERTER 5V 12V 71W |
40 | - |
|
数据表 |
LM75-10Dxx (75W) | Box | Not For New Designs | Enclosed | 2 | 5V | 12V | - | 71W | - | - | 90 ~ 264 VAC, 120 ~ 373 VDC | - | 7 A | - | 3 A | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
|
LM75-10D0524-20AC/DC CONVERTER 5V 24V 73W |
19 | - |
|
数据表 |
LM75-10Dxx (75W) | Box | Not For New Designs | Enclosed | 2 | 5V | 24V | - | 73W | - | - | 90 ~ 264 VAC, 120 ~ 373 VDC | - | 5 A | - | 2 A | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|

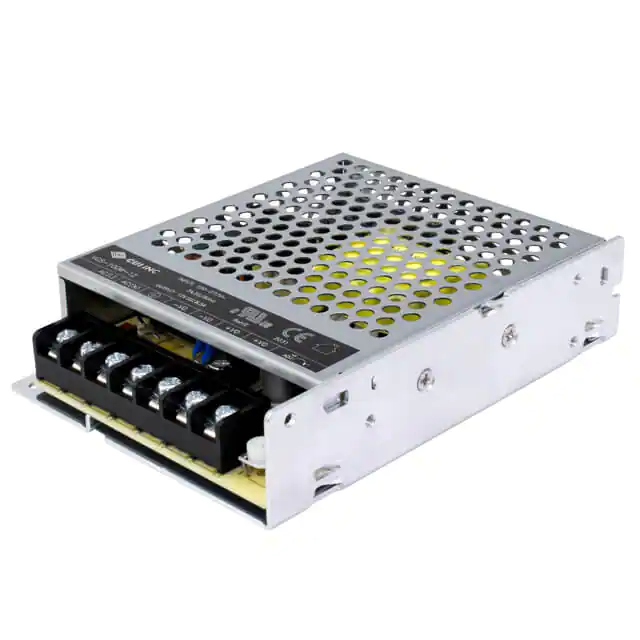

VGS-100W-12AC/DC CONVERTER 12V 102W |
33 | - |
|
数据表 |
VGS-100W (100W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 305 VAC, 120 ~ 431 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
LM350-20B48R2-CAC/DC CONVERTER 48V 350W |
14 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 350W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 7.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
|
LM350-20B12R2-QAC/DC CONVERTER 12V 348W |
11 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 348W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 29 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
|
LM350-20B24R2-CAC/DC CONVERTER 24V 1790W |
9 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 350.4W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 14.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
CFM61S480-TAC/DC CONVERTER 48V 60W |
10 | - |
|
数据表 |
CFM61S (60W) | Box | Active | Open Frame | 1 | 48V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.70" L x 2.00" W x 1.29" H (68.6mm x 50.8mm x 32.8mm) | ||
|

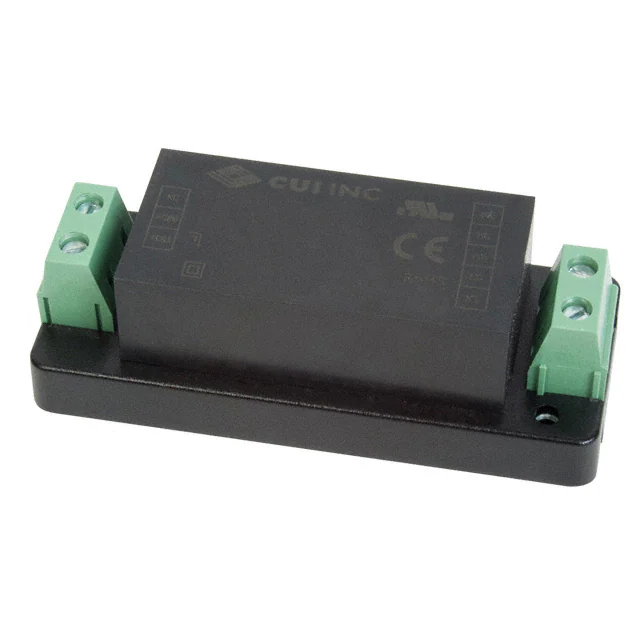

VSK-S5-3R3UA-TAC/DC CONVERTER 3.3V 5W |
0 | - |
|
数据表 |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 3.3V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) | ||
|
|
VSK-S5-15UA-TAC/DC CONVERTER 15V 5W |
0 | - |
|
数据表 |
VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 15V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 333 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) | ||
|
PSK-30D-3-TAC/DC CONVERTER 3.3V 20W |
9 | - |
|
数据表 |
PSK-30D | Tray | Not For New Designs | Enclosed | 1 | 3.3V | - | - | 20W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.2 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.78" L x 2.13" W x 1.46" H (96.1mm x 54.0mm x 37.1mm) | ||
|
VGS-100C-5-AAC/DC CONVERTER 5V 90W |
32 | - |
|
数据表 |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 90W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
|
LM350-20B12R2-CQAC/DC CONVERTER 12V 348W |
12 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 348W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 29 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
|
LM350-20B36R2-CQAC/DC CONVERTER 36V 349W |
10 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 36V | - | - | 349W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 9.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 7.05" L x 4.17" W x 1.18" H (179.0mm x 106.0mm x 30.0mm) | ||
|
PMC-12V100W1AAAC/DC CONVERTER 12V 100W |
52 | - |
|
数据表 |
PMC (100W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 100W | - | - | 85 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.22" L x 3.82" W x 1.50" H (158.0mm x 97.0mm x 38.0mm) | ||
|
CFM70S050-CAAC/DC CONVERTER 5V 50W |
35 | - |
|
数据表 |
CFM70S (70W) | Box | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 3.20" L x 2.44" W x 1.58" H (81.3mm x 62.0mm x 40.0mm) | ||
|
PSK-60-5-TAC/DC CONVERTER 5V 50W |
32 | - |
|
数据表 |
PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) | ||
|
|
PSK-60-48-TAC/DC CONVERTER 48V 60W |
18 | - |
|
数据表 |
PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 48V | - | - | 60W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) | ||
|
|
VMS-45-12-CNFAC/DC CONVERTER 2X12V 45W |
38 | - |
|
数据表 |
Artix® UltraScale+ | Box | Not For New Designs | Enclosed | 2 | 12V | 12V | - | 45W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 3.75 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | ||
|
ECF40US48AC/DC CONVERTER 48V 40W |
10 | - |
|
数据表 |
ECF40 (40W) | Box | Active | Open Frame | 1 | 48V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 830 mA | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.50" W x 1.11" H (76.2mm x 38.1mm x 28.2mm) | ||
|
VGS-150C-36AC/DC CONVERTER 36V 155W |
28 | - |
|
数据表 |
VGS-150C | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 155W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 4.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
