交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSK-60-15-TAC/DC CONVERTER 15V 60W |
7 | - |
|
数据表 |
PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 15V | - | - | 60W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) | ||
|
PSK-30D-15-TAC/DC CONVERTER 15V 30W |
15 | - |
|
数据表 |
PSK-30D | Tray | Not For New Designs | Enclosed | 1 | 15V | - | - | 30W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4.2 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.78" L x 2.13" W x 1.46" H (96.1mm x 54.0mm x 37.1mm) | ||
|
LOF120-20B36AC/DC CONVERTER 36V 120W |
32 | - |
|
数据表 |
LOF120-20Bxx (120W) | Tray | Not For New Designs | Open Frame | 1 | 36V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.33 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | ||
|
LOF120-20B27AC/DC CONVERTER 27V 120W |
24 | - |
|
数据表 |
LOF120-20Bxx (120W) | Tray | Not For New Designs | Open Frame | 1 | 27V | - | - | 120W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.44 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.22" H (76.2mm x 50.8mm x 31.0mm) | ||
|
PSK-S5B-24-TAC/DC CONVERTER 24V 5W |
0 | - |
|
数据表 |
PSK-S5B (5W) | Bulk | Obsolete | Enclosed | 1 | 24V | - | - | 5W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 210 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.06" H (76.0mm x 31.5mm x 26.8mm) | ||
|
SWG030-12AC/DC CONVERTER 12V 30W |
24 | - |
|
数据表 |
SWG030 (30W) | Bulk | Obsolete | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.06" L x 1.22" W x 3.08" H (103.0mm x 31.0mm x 78.0mm) | ||
|
LCS150US12AC/DC CONVERTER 12V 150W |
82 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LCS150US36AC/DC CONVERTER 36V 155W |
6 | - |
|
数据表 |
LCS150 (150W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 155W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
AMEOS30-15DMAZAC/DC CONVERTER |
19 | - |
|
数据表 |
AMEOS30-MAZ (30W) | Bulk | Active | Open Frame | 2 | 15V | -15V | - | 30W | - | - | 90 ~ 264 VAC, 130 ~ 370 VDC | - | 1 A | - | 1 A | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C | - | Chassis Mount | 4.92" L x 2.32" W x 0.98" H (125.0mm x 59.0mm x 25.0mm) | ||
|

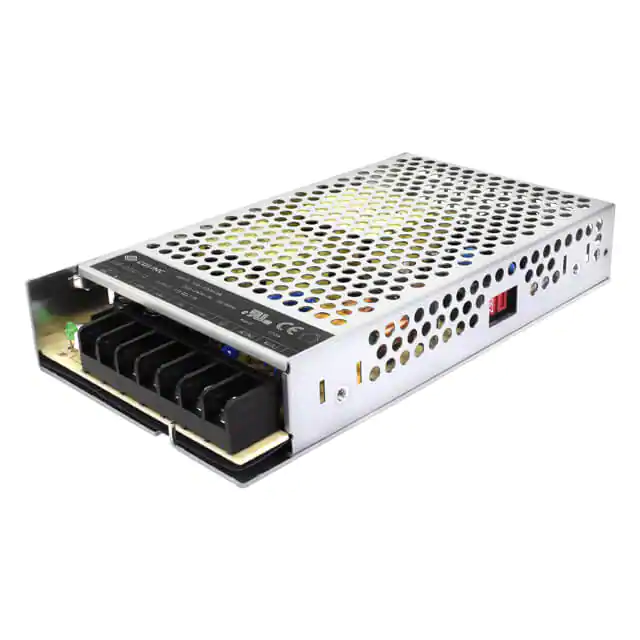

VGS-200C-24AC/DC CONVERTER 24V 211W |
54 | - |
|
数据表 |
VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 373 VDC | - | 8.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-200C-5AC/DC CONVERTER 5V 150W |
18 | - |
|
数据表 |
VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 150W | - | - | 90 ~ 264 VAC, 240 ~ 373 VDC | - | 30 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VGS-200C-48AC/DC CONVERTER 48V 211W |
14 | - |
|
数据表 |
VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 373 VDC | - | 4.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
VCS50US48AC/DC CONVERTER 48V 50W |
8 | - |
|
数据表 |
VCS (50W) | Box | Active | Enclosed | 1 | 48V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 1.05 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.35" L x 3.07" W x 1.38" H (110.5mm x 78.0mm x 35.0mm) | ||
|
LM200-10B24-CAC/DC CONVERTER 24V 211W |
17 | - |
|
数据表 |
LM200-10Bxx-C (200W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 211W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | - | 8.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | ||
|
AMEOS40-24DMAZAC/DC CONVERTER +/-24V 40W |
14 | - |
|
数据表 |
AME10-CJZ (10W) | Bulk | Active | Open Frame | 2 | 24V | -24V | - | 40W | - | - | 90 ~ 264 VAC, 130 ~ 370 VDC | - | 835 mA | - | 835 mA | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.90" L x 2.32" W x 0.98" H (124.5mm x 58.9mm x 24.9mm) | ||
|
ASL-0105AC/DC CONVERTER 24V 10W |
27 | - |
|
数据表 |
ASL10 (10W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 10W | - | - | 90 ~ 264 VAC | - | 420 mA | - | - | ITE (Commercial), Medical | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.83" H (57.9mm x 50.8mm x 21.2mm) | ||
|
ASL-0103AC/DC CONVERTER 15V 10W |
16 | - |
|
数据表 |
ASL10 (10W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 10W | - | - | 90 ~ 264 VAC | - | 670 mA | - | - | ITE (Commercial), Medical | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.83" H (57.9mm x 50.8mm x 21.2mm) | ||
|
PMT-5V35W1AAAC/DC CONVERTER 5V 35W |
17 | - |
|
数据表 |
PMT (35W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 35W | - | - | 85 ~ 264 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.86" L x 3.86" W x 1.50" H (98.0mm x 98.0mm x 38.0mm) | ||
|
Switching Power Supply ALRS12V25ATAC/DC CONVERTER 12V 300W |
18 | - |
|
数据表 |
- | Tape & Box (TB) | Active | Enclosed | 1 | 12V | - | - | - | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.87" L x 4.53" W x 1.97" H (199.9mm x 115.1mm x 50.0mm) | ||
|
VMS-65-5AC/DC CONVERTER 2X5V 50W |
51 | - |
|
数据表 |
Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 5V | 5V | - | 50W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 10 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
