交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSK-S20C-12-TAC/DC CONVERTER 12V 20W |
48 | - |
|
数据表 |
PSK-S20C (20W) | Tray | Obsolete | Enclosed | 1 | 12V | - | - | 20W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.66 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.00mm x 31.5mm x 32.3mm) | ||
|

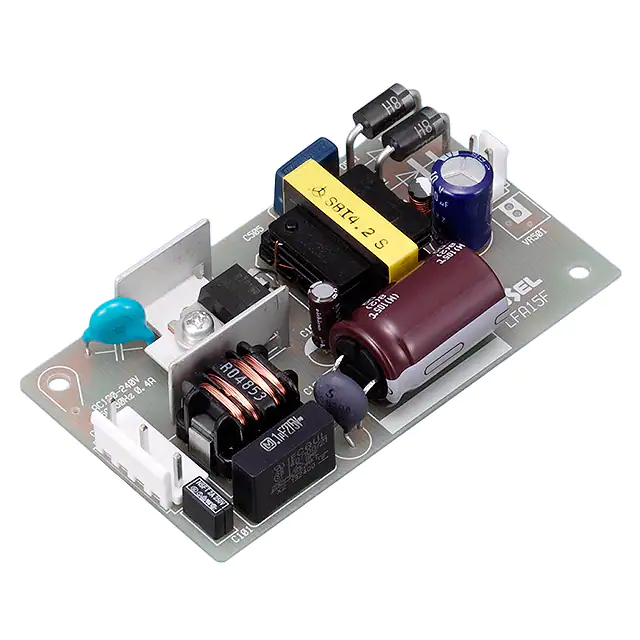

LFA15F-12-J1AC/DC CONVERTER 12V |
28 | - |
|
数据表 |
LFA (15W) | Box | Active | Open Frame | 1 | 12V | - | - | - | - | - | 85 ~ 264 VAC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 3.44" L x 1.97" W x 0.87" H (87.4mm x 50.0mm x 22.1mm) | ||
|
VGS-50B-12AC/DC CONVERTER 12V 50W |
60 | - |
|
数据表 |
VGS-50B (53W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 50W | - | - | 90 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-75W-15AC/DC CONVERTER 15V 75W |
75 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-75W-12AC/DC CONVERTER 12V 72W |
24 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-75C-36AC/DC CONVERTER 36V 76W |
24 | - |
|
数据表 |
VGS-75C | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 76W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LCW75US36AC/DC CONVERTER 36V 76W |
11 | - |
|
数据表 |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 76W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
|
PMC-24V075W1AAAC/DC CONVERTER 24V 75W |
19 | - |
|
数据表 |
PMC (75W) | Bulk | Obsolete | Enclosed | 1 | 24V | - | - | 75W | - | - | 85 ~ 264 VAC | - | 3.125 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) | ||
|
LM75-23B15-QAC/DC CONVERTER 15V 75W |
27 | - |
|
数据表 |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM75-20B15-QAC/DC CONVERTER 15V 75W |
6 | - |
|
数据表 |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 75W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM75-23B15-CAC/DC CONVERTER 15V 75W |
6 | - |
|
数据表 |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|

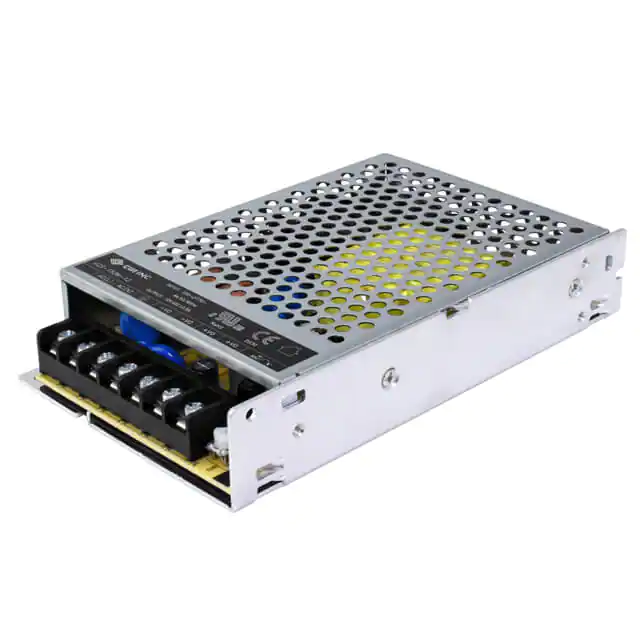

VGS-150W-15AC/DC CONVERTER 15V 150W |
26 | - |
|
数据表 |
VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 431 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
AMES75-48S277NZAC/DC CONVERTER 48V 77W |
8 | - |
|
数据表 |
AMES75-277NZ (77W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 77W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
AMES75-12S277NZAC/DC CONVERTER 12V 72W |
6 | - |
|
数据表 |
AMES75-277NZ (72W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-100C-36AC/DC CONVERTER 36V 101W |
42 | - |
|
数据表 |
VGS-100C | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 101W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 2.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
EPR-25-2424 V DC POWER SUPPLY25 W /1A |
37 | - |
|
数据表 |
EPR-25-24 | Box | Active | Enclosed | 1 | 24V | - | - | 26W | - | - | 90 ~ 264 VAC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.07" L x 2.01" W x 1.12" H (78.0mm x 51.0mm x 28.5mm) | ||
|
CFM2001SAC/DC CONVERTER 5V 22W |
58 | - |
|
数据表 |
CFM20 (20W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 22W | - | - | 85 ~ 264 VAC | - | 4.4 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm) | ||
|
CFM2007SAC/DC CONVERTER 3.3V 15W |
26 | - |
|
数据表 |
CFM20 (20W) | Box | Obsolete | Open Frame | 1 | 3.3V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 4.4 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.50" L x 2.00" W x 0.91" H (88.9mm x 50.8mm x 23.0mm) | ||
|
Switching Power Supply ALRS12V15ATAC/DC CONVERTER 12V 180W |
21 | - |
|
数据表 |
- | Tape & Box (TB) | Active | Enclosed | 1 | 12V | - | - | 180W | - | - | 90 ~ 264 VAC | - | 15 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.86" W x 1.65" H (198.1mm x 98.0mm x 41.9mm) | ||
|
Switching Power Supply ALRS24V7R5ATAC/DC CONVERTER 24V 180W |
13 | - |
|
数据表 |
- | Tape & Box (TB) | Active | Enclosed | 1 | 24V | - | - | - | - | - | 90 ~ 264 VAC | - | 7.5 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 7.80" L x 3.86" W x 1.65" H (198.1mm x 98.0mm x 41.9mm) |
