交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600SL-1540-DK000AC/DC CNVRTR 5V 2X12V 48V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 5V | 12V | 12V | 425W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 5 A | ITE (Commercial) | - | 5 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-3052-DK000AC/DC CONVERTER 24V 3X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 300W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 15 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
VGS-75W-12-BAC/DC CONVERTER 12V 72W |
0 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600S-5011-DK000AC/DC CONVERTER 2X12V 2X5V 250W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 250W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
VGS-50B-48AC/DC CONVERTER 48V 53W |
0 | - |
|
数据表 |
VGS-50B (53W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 53W | - | - | 90 ~ 264 VAC | - | 1.1 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM100-23B05AC/DC CONVERTER 5V 90W |
0 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 90W | - | - | 85 ~ 305 VAC, 120 ~ 431 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600S-0324-DK000AC/DC CONVERTER 24V 12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-0333-DK000AC/DC CONVERTER 3X24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 24V | 24V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 7.5 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
VOF-45C-S12AC/DC CONVERTER 12V 45W |
1 | - |
|
数据表 |
VOF-45C (45W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 45W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 3.75 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) | ||
|
NEVO+600SL-4043-DK000AC/DC CONVERTER 2X48V 24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 48V | 48V | 24V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-1320-DK000AC/DC CONVERTER 5V 24V 12V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 24V | 12V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-1012-DK000AC/DC CONVERTER 2X5V 12V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 5V | 12V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-3205-DK000AC/DC CONVERTER 24V 3X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 450W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|

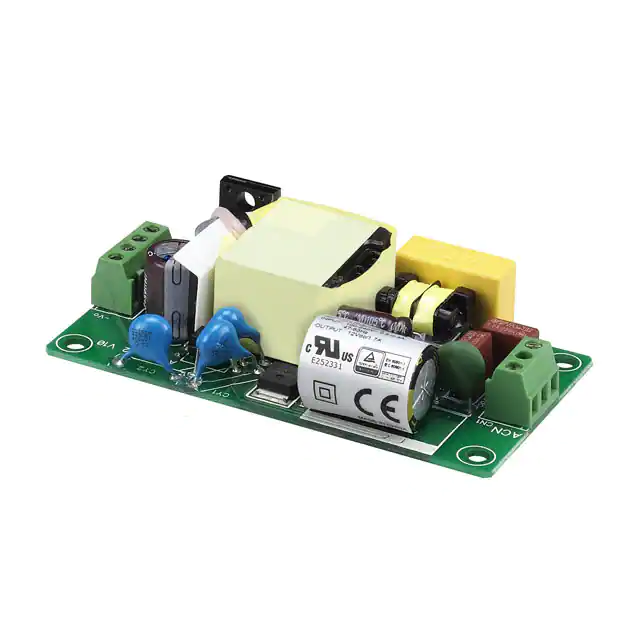

CFM21M120-SAC/DC CONVERTER 12V 20W |
0 | - |
|
数据表 |
CFM21M (20W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 20W | - | - | 90 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 1.60" W x 0.76" H (76.2mm x 40.6mm x 19.2mm) | ||
|
LM200-20B48R2AC/DC CONVERTER 48V 211W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 211W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 4.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LM200-20B54R2AC/DC CONVERTER 54V 211W |
3 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 54V | - | - | 211W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 3.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LM200-20B36R2AC/DC CONVERTER 36V 212W |
2 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 212W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 5.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LM200-20B12R2AC/DC CONVERTER 12V 204W |
0 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 204W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
LM200-22B24R2-CENCLOSED AC DC CONVERTERS 211.2W |
0 | - |
|
数据表 |
LM200-22BxxR2-C (204W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 211W | - | - | 176 ~ 305 VAC, 240 ~ 430 VDC | - | 8.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
LM200-22B36R2-QENCLOSED AC DC CONVERTERS 212.4W |
0 | - |
|
数据表 |
LM200-22BxxR2-Q (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 36V | - | - | 212W | - | - | 176 ~ 305 VAC, 240 ~ 430 VDC | - | 5.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.07" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
