交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NES-15-48AC/DC CONVERTER 48V 17W |
0 | - |
|
数据表 |
NES-15 (15W) | Box | Obsolete | Enclosed | 1 | 48V | - | - | 17W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 350 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | ||
|
|
NES-15-5AC/DC CONVERTER 5V 15W |
0 | - |
|
数据表 |
NES-15 (15W) | Box | Obsolete | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm) | ||
|

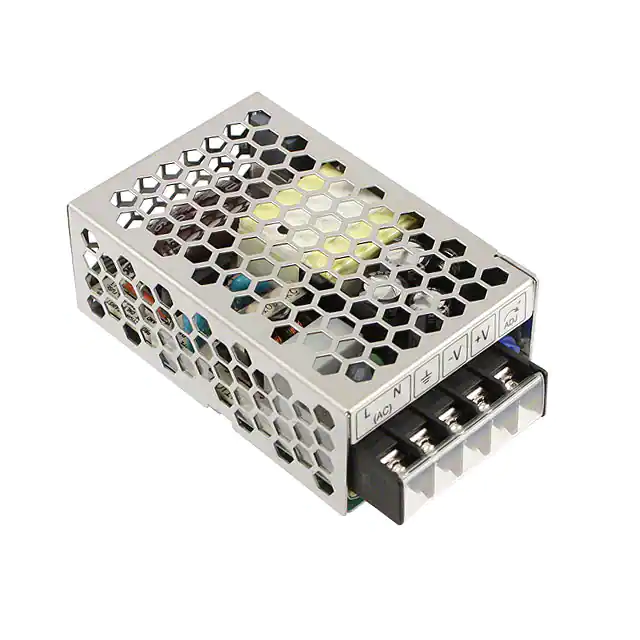

LS25-5AC/DC CONVERTER 5V 25W |
671 | - |
|
数据表 |
LS (25W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 25W | - | - | 88 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) | ||
|
VGS-15W-5-BAC/DC CONVERTER 5V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-3-BAC/DC CONVERTER 3.3V 10W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 3.3V | - | - | 10W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
VGS-15W-48-AAC/DC CONVERTER 48V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 320 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-12-BAC/DC CONVERTER 12V 16W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-48-BAC/DC CONVERTER 48V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 320 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-15-AAC/DC CONVERTER 15V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-3-AAC/DC CONVERTER 3.3V 10W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 3.3V | - | - | 10W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
VGS-15W-24-AAC/DC CONVERTER 24V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-5-AAC/DC CONVERTER 5V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
|
VGS-15W-24-BAC/DC CONVERTER 24V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|

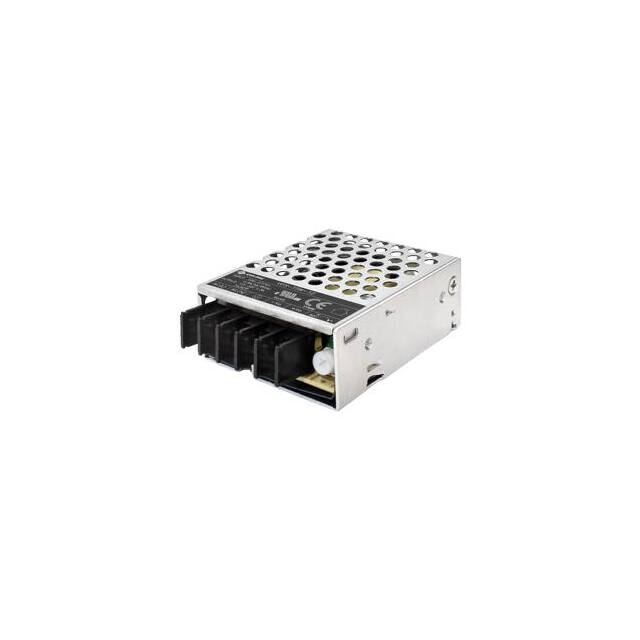

VGS-15W-15-BAC/DC CONVERTER 15V 15W |
0 | - |
|
数据表 |
VGS-15W (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
NEVO+600S-2013-DK000AC/DC CONVERTER 12V 5V 24V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 5V | 24V | 275W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 25 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
AMES50-48S277NZ-QAC/DC CONVERTER 48V 53W |
4 | - |
|
数据表 |
AMES50-277NZ (53W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 48V | - | - | 53W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
|
NEVO+600S-3140-DK000AC/DC CONVERTER 24V 5V 48V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 5V | 48V | 275W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 25 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
AMES50-36S277NZ-QAC/DC CONVERTER 36V 52W |
4 | - |
|
数据表 |
AMES50-277NZ (52W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 36V | - | - | 52W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.45 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
NEVO+600SL-0122-DK000AC/DC CONVERTER 5V 2X12V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 12V | 12V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 15 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600S-5014-DK000AC/DC CNVRTR 2X12V 5V 48V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 5V | 275W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 25 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
