交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMP1K2-#HKC#H-00AC/DC CNVRTR 24V 48V 5V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HKC#K-00AC/DC CNVRTR 24V 48V 5V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HKCC#-00AC/DC CNVRTR 24V 48V 2X5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
LRS-100-12AC/DC CONVERTER 12V 102W |
0 | - |
|
数据表 |
LRS-100 (100W) | Box | Active | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
IRM-60-5STAC/DC CONVERTER 5V 50W |
1,340 | - |
|
数据表 |
IRM-60 (60W) | Box | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 305 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | ||
|
RPD-60AAC/DC CONVERTER 5V 12V 49W |
472 | - |
|
数据表 |
RPD-60 (60W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 49W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 5 A | - | 2 A | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 65°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
NMP1K2-#HKCE#-00AC/DC CNVRTR 24V 48V 5V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
IRM-60-24STAC/DC CONVERTER 24V 60W |
0 | - |
|
数据表 |
IRM-60 (60W) | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.29" L x 2.05" W x 1.32" H (109.0mm x 52.0mm x 33.5mm) | ||
|
NEVO+600SL-0433-DK000AC/DC CONVERTER 48V 2X24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 48V | 24V | 24V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 7.5 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#HKCH#-00AC/DC CNVRTR 24V 48V 5V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
RPT-60BAC/DC CONVERTER 5V +/-12V 50W |
1,572 | - |
|
数据表 |
RPT-60 (60W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 50W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 4 A | - | 2 A | ITE (Commercial), Medical | - | 500 mA | - | 4 kV | -20°C ~ 65°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | ||
|
NMP1K2-#HKCK#-00AC/DC CNVRTR 24V 48V 5V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NEVO+600S-1101-DK000AC/DC CONVERTER 3X5V 250W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 5V | 5V | 250W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|

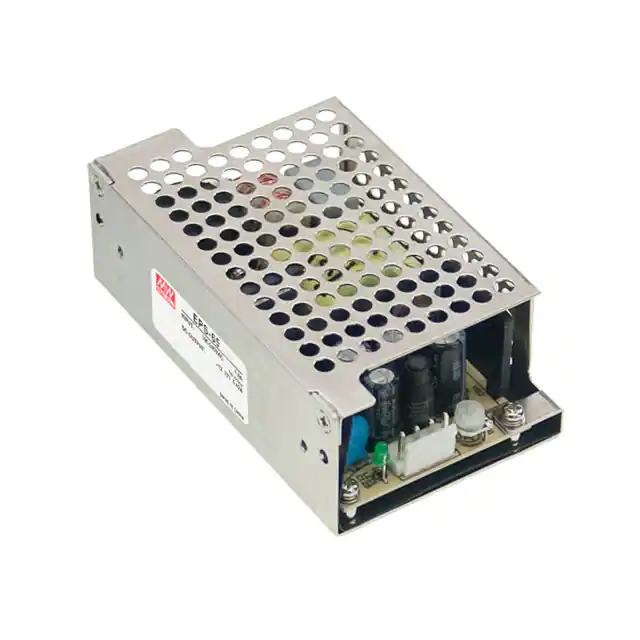

EPS-65-24-CAC/DC CONVERTER 24V 65W |
231 | - |
|
数据表 |
EPS-65 (65W) | Box | Active | Enclosed | 1 | 24V | - | - | 65W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 2.71 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
NMP1K2-#HKE#C-00AC/DC CNVRTR 24V 48V 12V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 12V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
EPS-65-12-CAC/DC CONVERTER 12V 65W |
175 | - |
|
数据表 |
EPS-65 (65W) | Box | Active | Enclosed | 1 | 12V | - | - | 65W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 5.42 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) | ||
|
NEVO+600S-1102-DK000AC/DC CONVERTER 2X5V 12V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 5V | 12V | 275W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#HKE#E-00AC/DC CNVRTR 24V 48V 2X12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 12V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HKE#H-00AC/DC CNVRT 24V 48V 12V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 12V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|

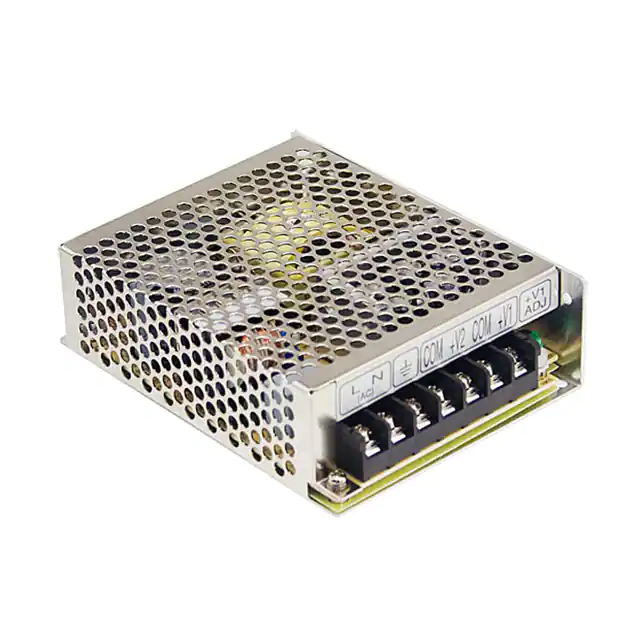

RS-75-24AC/DC CONVERTER 24V 77W |
644 | - |
|
数据表 |
RS-75 (75W) | Box | Active | Enclosed | 1 | 24V | - | - | 77W | - | - | 88 ~ 264 VAC, 125 ~ 373 VDC | - | 3.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.50" H (129.0mm x 97.0mm x 38.0mm) |
