交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD-35BAC/DC CONVERTER 5V 24V 35W |
362 | - |
|
数据表 |
RD-35 (35W) | Box | Active | Enclosed | 2 | 5V | 24V | - | 35W | - | - | 88 ~ 264 VAC, 125 ~ 373 VDC | - | 2.2 A | - | 1 A | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) | ||
|
RPS-65-24AC/DC CONVERTER 24V 65W |
1,265 | - |
|
数据表 |
RPS-65 (65W) | Box | Active | Open Frame | 1 | 24V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 2.71 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.0mm) | ||
|

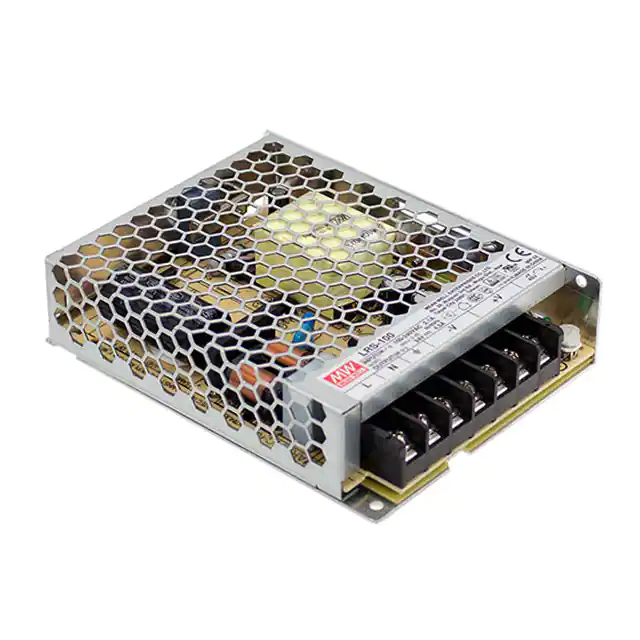

LRS-100-15AC/DC CONVERTER 15V 105W |
1,987 | - |
|
数据表 |
LRS-100 (100W) | Box | Active | Enclosed | 1 | 15V | - | - | 105W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600S-0135-DK000AC/DC CNVRTR 5V 24V 2X12V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 5V | 24V | 12V | 425W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-5305-DK000AC/DC CNVT 2X12V 24V 2X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 5 | 12V | 12V | 24V | 450W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | 5 A | 7.5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-0424-DK000AC/DC CONVERTER 48V 12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 48V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-2240-DK000AC/DC CONVERTER 2X12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 12V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-0123-DK000AC/DC CONVERTER 5V 12V 24V 425W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 5V | 12V | 24V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 15 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-1051-DK000AC/DC CONVERTER 5V 2X12V 5V 400W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 5V | 12V | 12V | 400W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
AMES50-15S277NZ-PAC/DC CONVERTER 15V 51W |
4 | - |
|
数据表 |
AMES50-277NZ (51W) | Box | Obsolete | Enclosed | 1 | 15V | - | - | 51W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
AMES50-15S277NZ-QAC/DC CONVERTER 15V 51W |
4 | - |
|
数据表 |
AMES50-277NZ (51W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 15V | - | - | 51W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
AMES50-12S277NZ-QAC/DC CONVERTER 12V 50W |
4 | - |
|
数据表 |
AMES50-277NZ (50W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
AMES50-12S277NZ-PAC/DC CONVERTER 12V 50W |
2 | - |
|
数据表 |
AMES50-277NZ (50W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
PSK-15D-9-TAC/DC CONVERTER 9V 15W |
0 | - |
|
数据表 |
PSK-15D (15W) | Tray | Not For New Designs | Enclosed | 1 | 9V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | ||
|
PSK-15D-15-TAC/DC CONVERTER 15V 15W |
0 | - |
|
数据表 |
PSK-15D (15W) | Tray | Not For New Designs | Enclosed | 1 | 15V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | ||
|
PSK-15D-12-TAC/DC CONVERTER 12V 15W |
0 | - |
|
数据表 |
PSK-15D (15W) | Tray | Not For New Designs | Enclosed | 1 | 12V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.27" H (76.0mm x 31.5mm x 32.3mm) | ||
|
PSK-S5B-24-LAC/DC CONVERTER 24V 5W |
0 | - |
|
数据表 |
PSK-S5B (5W) | Tray | Obsolete | Enclosed | 1 | 24V | - | - | 5W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 210 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) | ||
|
VOF-30C-S24AC/DC CONVERTER 24V 30W |
0 | - |
|
数据表 |
VOF-30C (30W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 30W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.25 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) | ||
|
GB10S24P01AC/DC CONVERTER 24V 12W |
0 | - |
|
数据表 |
GB10S (10W) | Box | Active | Open Frame | 1 | 24V | - | - | 12W | - | - | 90 ~ 264 VAC | - | 500 mA | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.05" L x 1.07" W x 0.71" H (52.0mm x 27.3mm x 18.0mm) | ||
|
NMP1K2-#HKC#E-00AC/DC CNVRTR 24V 48V 5V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 48V | 5V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
