交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECM100US24-CSINGLE O/P, AC-DC COVERED PSU, 1 XP Power |
0 | - |
|
数据表 |
ECM (100W) | Box | Active | Enclosed | 1 | 24V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 4.1 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.98" L x 3.01" W x 1.54" H (126.5mm x 76.5mm x 39.1mm) |
|
|
ECM100US15-CSINGLE O/P, AC-DC COVERED PSU, 1 XP Power |
0 | - |
|
数据表 |
ECM (100W) | Box | Active | Enclosed | 1 | 15V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.98" L x 3.01" W x 1.54" H (126.5mm x 76.5mm x 39.1mm) |
|
GCS150PS15AC/DC CONVERTER 15V 110W XP Power |
0 | - |
|
数据表 |
GCS (150W) | Box | Active | Open Frame | 1 | 15V | - | - | 110W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
|
GCS150PS48AC/DC CONVERTER 48V 110W XP Power |
0 | - |
|
数据表 |
GCS (150W) | Box | Active | Open Frame | 1 | 48V | - | - | 110W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 2.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|
ECS100US24-CAC/DC CONVERTER 24V 80W XP Power |
0 | - |
|
数据表 |
ECS (100W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4000 V | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
EPL225PS18AC/DC CONVERTER 18V 150W XP Power |
0 | - |
|
数据表 |
EPL225 (225W) | Box | Active | Open Frame | 1 | 18V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.3mm) |
|
|
EPL225PS48AC/DC CONVERTER 48V 150W XP Power |
0 | - |
|
数据表 |
EPL225 (225W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 3.1 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.3mm) |
|
ECP180PS36AC/DC CONVERTER 36V 120W XP Power |
0 | - |
|
数据表 |
ECP180 (180W) | Box | Active | Open Frame | 1 | 36V | - | - | 120W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
|

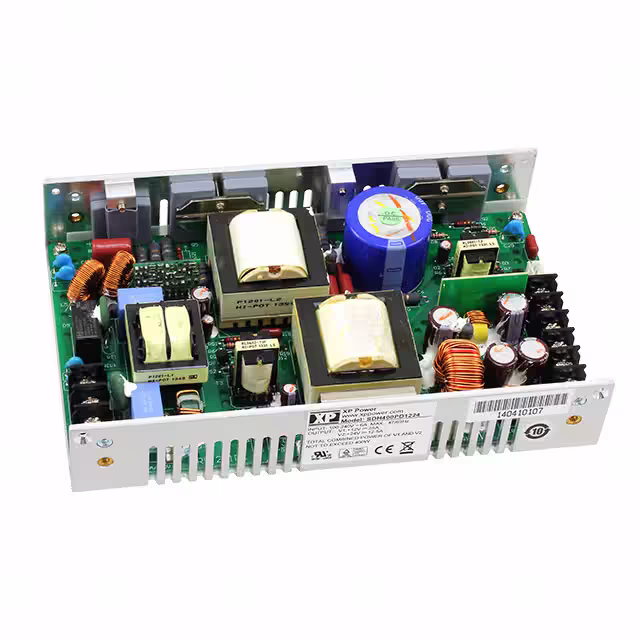

SDH400PD1224AC/DC CONVERTER 12V 24V 400W XP Power |
0 | - |
|
数据表 |
SDH400 (400W) | Box | Obsolete | Open Frame | 2 | 12V | 24V | - | 400W | - | - | 90 ~ 264 VAC | - | 25 A | - | 12.5 A | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.00" L x 5.00" W x 1.25" H (177.8mm x 127.0mm x 31.7mm) |
|

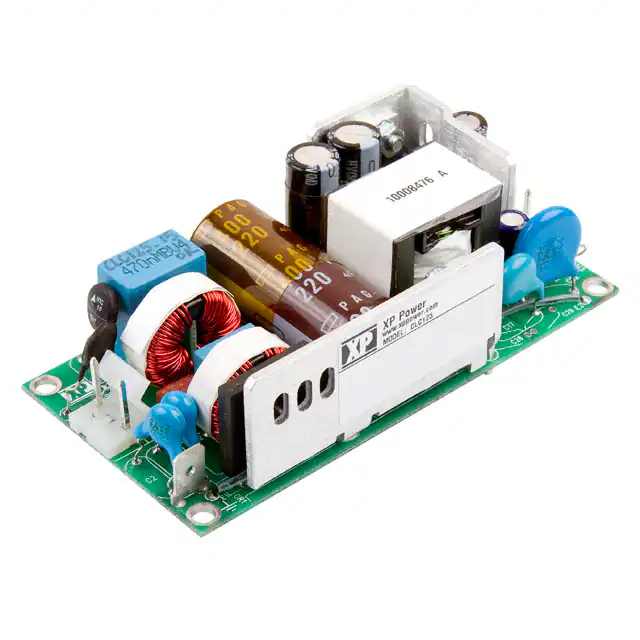

CLC125US24AC/DC CONVERTER 24V 55W XP Power |
0 | - |
|
数据表 |
CLC (125W) | Box | Active | Open Frame | 1 | 24V | - | - | 55W (125W Forced Air) | - | - | 85 ~ 264 VAC | - | 5.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
