交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECL15US05-SAC/DC CONVERTER 5V 15W XP Power |
0 | - |
|
数据表 |
ECL (15W) | Box | Active | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) |
|

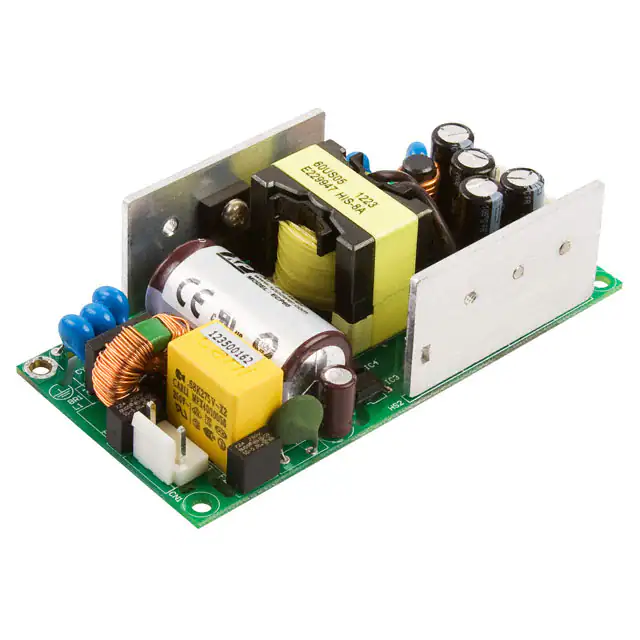

ECP60UD01AC/DC CONVERTER 5V 12V 60W XP Power |
0 | - |
|
数据表 |
ECP (60W) | Box | Active | Open Frame | 2 | 5V | 12V | - | 60W | - | - | 85 ~ 264 VAC | - | 7 A | - | 3 A | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|

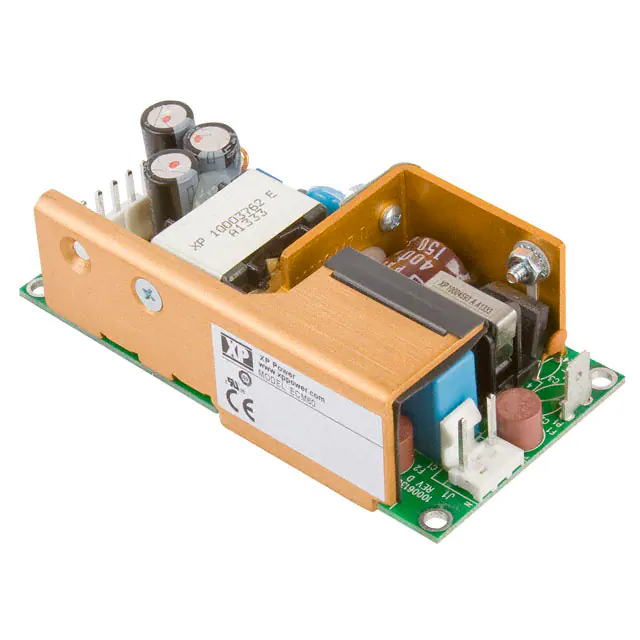

ECM60US15AC/DC CONVERTER 15V 60W XP Power |
0 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 1 | 15V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
|
ECM60UT33AC/DC CONVERTER 5V +/-15V 60W XP Power |
0 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 60W | - | - | 90 ~ 264 VAC | - | 8 A | - | 2.5 A | ITE (Commercial), Medical | - | 500 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECL30UD03-SAC/DC CONVERTER 5V 12V 30W XP Power |
0 | - |
|
数据表 |
ECL (30W) | Box | Active | Enclosed | 2 | 5V | 12V | - | 30W | - | - | 85 ~ 264 VAC | - | 3 A | - | 1.3 A | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
ECE60US24-SAC/DC CONVERTER 24V 60W XP Power |
0 | - |
|
数据表 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
GCS180PS24AC/DC CONVERTER 24V 150W XP Power |
0 | - |
|
数据表 |
GCS (180W) | Box | Active | Open Frame | 1 | 24V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|

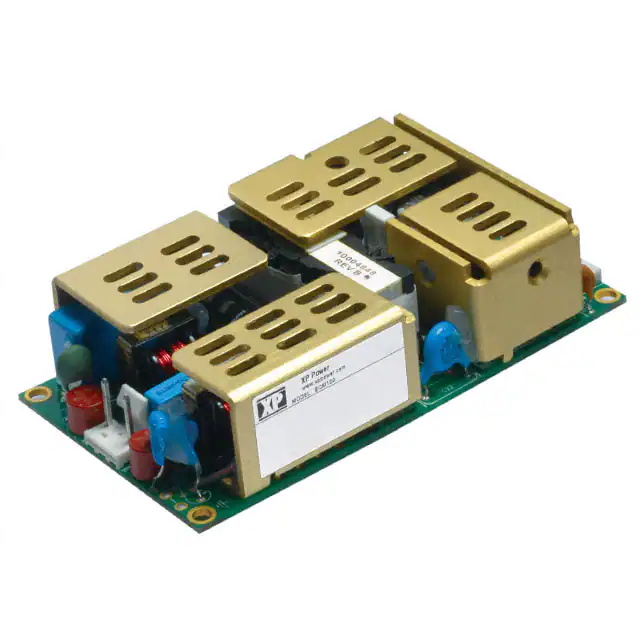

ECM100UT31AC/DC CONVERTER 5V +/-12V 80W XP Power |
0 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 80W (100W Forced Air) | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 3 A | ITE (Commercial), Medical | - | 800 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
|
ECM100UT33AC/DC CONVERTER 5V +/-15V 80W XP Power |
0 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 80W (100W Forced Air) | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 3 A | ITE (Commercial), Medical | - | 800 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|

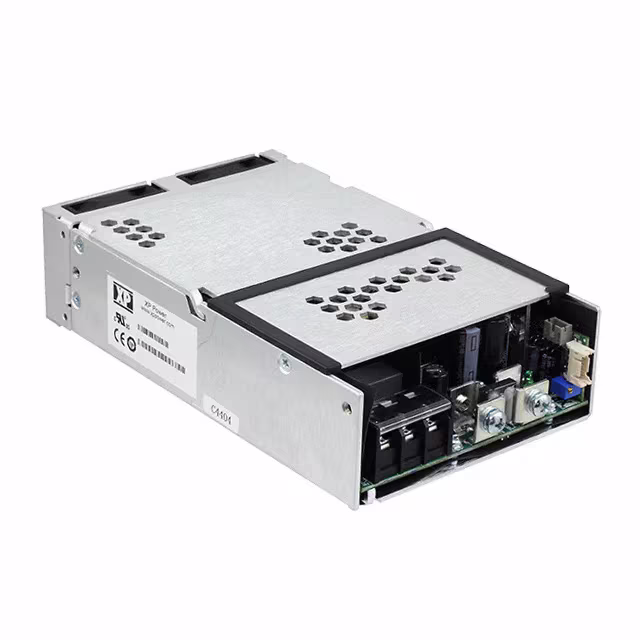

GSP500PS12-EFAC/DC CONVERTER 12V 500W XP Power |
0 | - |
|
数据表 |
GSP500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 500W | - | - | 85 ~ 264 VAC | - | 42 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.71" L x 4.00" W x 1.65" H (170.4mm x 101.6mm x 41.9mm) |
