交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-20B15AC/DC CONVERTER 15V 75W Mornsun America, LLC |
22 | - |
|
数据表 |
LM75-20Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
LM150-23B54R2-QAC/DC CONVERTER 54V 151W Mornsun America, LLC |
25 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 54V | - | - | 151W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 2.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B54R2-CAC/DC CONVERTER 54V 151W Mornsun America, LLC |
19 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 54V | - | - | 151W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 2.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B15R2-QAC/DC CONVERTER 15V 150W Mornsun America, LLC |
17 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B24R2-CAC/DC CONVERTER 24V 156W Mornsun America, LLC |
16 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 156W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B12R2-CAC/DC CONVERTER 12V 150W Mornsun America, LLC |
14 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B12R2-QAC/DC CONVERTER 12V 150W Mornsun America, LLC |
12 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B24R2-QAC/DC CONVERTER 24V 156W Mornsun America, LLC |
9 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 156W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|

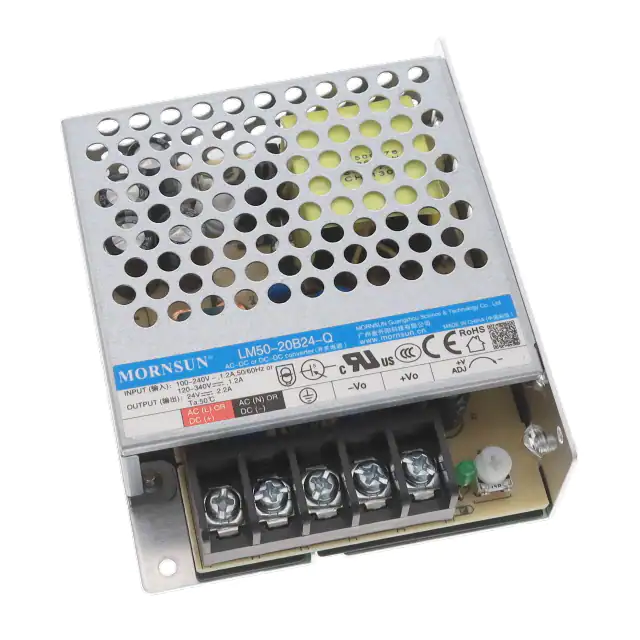

LM50-20B24-QAC/DC CONVERTER 24V 53W Mornsun America, LLC |
15 | - |
|
数据表 |
LM50-20Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 53W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
LM75-10A0512-40AC/DC CONVERTER 5V 12V 68W Mornsun America, LLC |
11 | - |
|
数据表 |
LM75-10Axx (75W) | Box | Not For New Designs | Enclosed | 2 | 5V | 12V | - | 68W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 4 A | - | 4 A | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.81" H (129.0mm x 97.0mm x 46.0mm) |
