交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-23B24AC/DC CONVERTER 24V 77W Mornsun America, LLC |
48 | - |
|
数据表 |
LM75-23Bxx (75W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 77W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
LM150-23B24R2AC/DC CONVERTER 24V 156W Mornsun America, LLC |
71 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 156W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B48R2AC/DC CONVERTER 48V 158W Mornsun America, LLC |
50 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 158W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 3.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B15R2AC/DC CONVERTER 15V 150W Mornsun America, LLC |
18 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B54R2AC/DC CONVERTER 54V 151W Mornsun America, LLC |
13 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 54V | - | - | 151W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 2.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B36R2AC/DC CONVERTER 36V 155W Mornsun America, LLC |
11 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 155W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 4.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM150-23B12R2AC/DC CONVERTER 12V 150W Mornsun America, LLC |
9 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
LO65-10B15AC/DC CONVERTER 15V 65W Mornsun America, LLC |
58 | - |
|
数据表 |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 65W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 4.34 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
|
|
LO65-10B09AC/DC CONVERTER 9V 59W Mornsun America, LLC |
6 | - |
|
数据表 |
LO65-10Bxx (65W) | Tray | Not For New Designs | Open Frame | 1 | 9V | - | - | 59W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 6.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
|

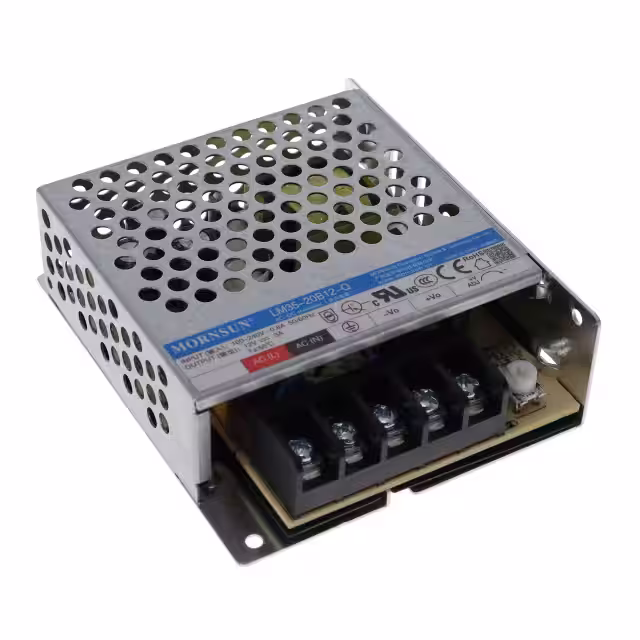

LM35-20B12-QAC/DC CONVERTER 12V 36W Mornsun America, LLC |
26 | - |
|
数据表 |
LM35-20Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
