交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM100-23B48R2-QAC/DC CONVERTER 48V 110W Mornsun America, LLC |
14 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 110W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 2.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LO45-20B24SMUAC/DC CONVERTER 24V 45W Mornsun America, LLC |
62 | - |
|
数据表 |
LO45-20BxxSMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 45W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 1.875 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B12SMUAC/DC CONVERTER 12V 45W Mornsun America, LLC |
56 | - |
|
数据表 |
LO45-20BxxSMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 45W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 3.75 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B03SMUAC/DC CONVERTER 3.3V 26W Mornsun America, LLC |
36 | - |
|
数据表 |
LO45-20BxxSMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 3.3V | - | - | 26W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 8 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LO45-20B05SMUAC/DC CONVERTER 5V 40W Mornsun America, LLC |
26 | - |
|
数据表 |
LO45-20BxxSMU (45W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 40W | - | - | 80 ~ 264 VAC, 100 ~ 370 VDC | - | 8 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
LM100-23B48R2-CQAC/DC CONVERTER 48V 110W Mornsun America, LLC |
23 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 110W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 2.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
|
LM35-10A0512-10AC/DC CONVERTER 5V 12V 32W Mornsun America, LLC |
12 | - |
|
数据表 |
LM35-10Axx (35W) | Box | Not For New Designs | Enclosed | 2 | 5V | 12V | - | 32W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4 A | - | 1 A | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.54" W x 1.18" H (97.0mm x 90.0mm x 30.0mm) |
|
|
LM35-10A0524-10AC/DC CONVERTER 5V 24V 35W Mornsun America, LLC |
7 | - |
|
数据表 |
LM35-10Axx (35W) | Box | Not For New Designs | Enclosed | 2 | 5V | 24V | - | 35W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.2 A | - | 1 A | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.54" W x 1.18" H (97.0mm x 90.0mm x 30.0mm) |
|
LM50-23B48AC/DC CONVERTER 48V 53W Mornsun America, LLC |
55 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 53W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|

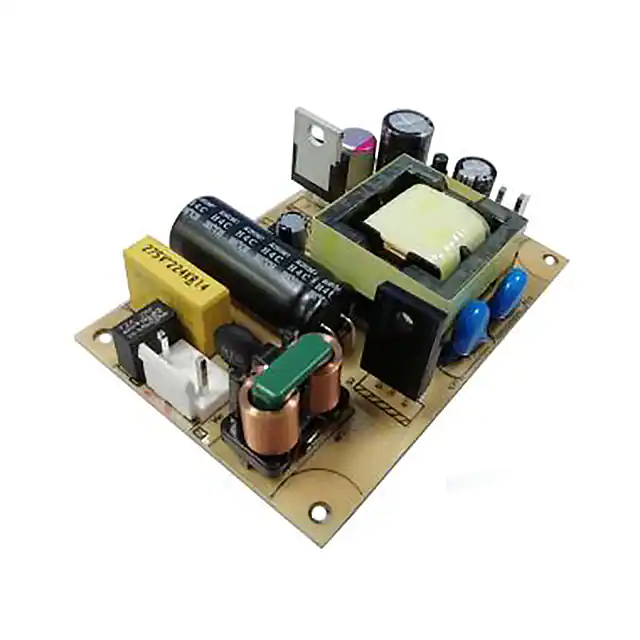

LO30-10B15AC/DC CONVERTER 15V 30W Mornsun America, LLC |
43 | - |
|
数据表 |
LO30-10Bxx (30W) | Tray | Not For New Designs | Open Frame | 1 | 15V | - | - | 30W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.06" H (76.2mm x 50.8mm x 27.0mm) |
