散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

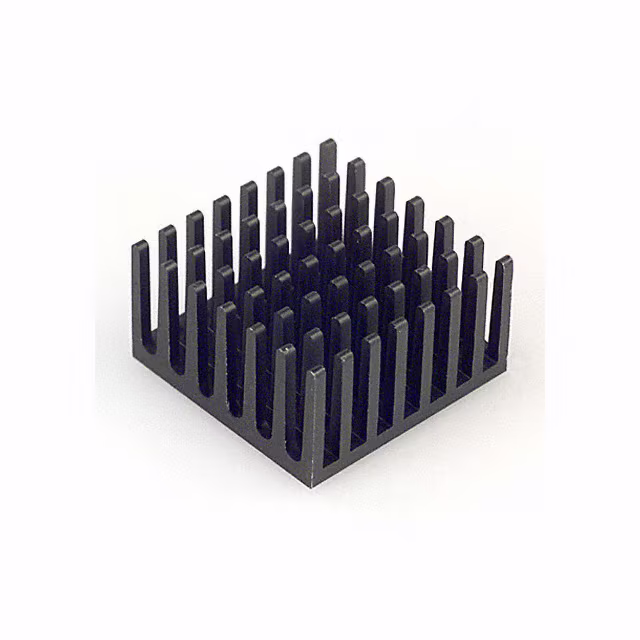

BDN12-5CB/A01HEATSINK CPU W/ADHESIVE 1.21"SQ |
736 | - |
|
数据表 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Pin Fins | 1.210" (30.73mm) | 1.210" (30.73mm) | - | 0.555" (14.10mm) | Thermal Tape, Adhesive (Included) | - | 5.20°C/W @ 400 LFM | 16.50°C/W | Aluminum | Black Anodized |
|
960-21-12-S-AB-0HEATSINK 21X12MM SIDE PUSH PIN |
374 | - |
|
数据表 |
960 | Box | Active | Top Mount | BGA | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.472" (12.00mm) | Push Pin | - | 7.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-CPX025025015-166-C2-R0HEATSINK 25X25X15MM R-TAB CP |
732 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 12.18°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045025-190-C1-R0HEATSINK 45X45X25MM R-TAB CP |
200 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | Push Pin | - | 3.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX025025020-167-C2-R0HEATSINK 25X25X20MM R-TAB CP |
153 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 9.10°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX035035010-147-C1-R0HEATSINK 35X35X10MM L-TAB CP |
101 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | Push Pin | - | 13.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030025-82-C1-R0HEATSINK 30X30X25MM R-TAB FP |
600 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | Push Pin | - | 10.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

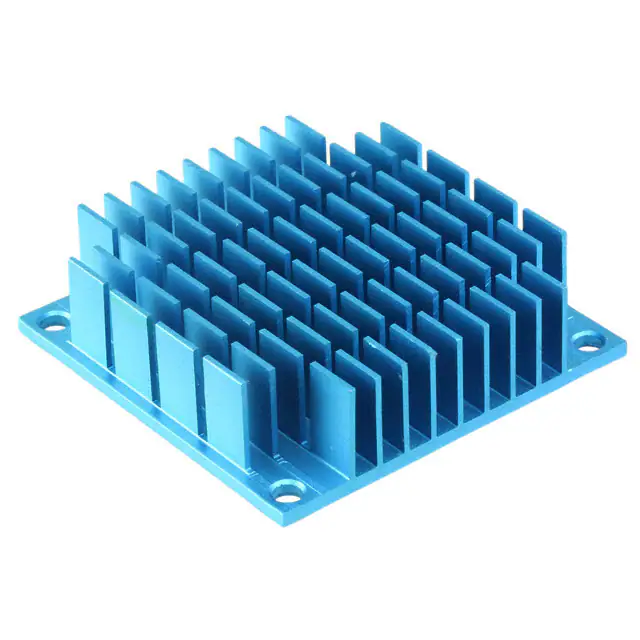

ATS-CPX054054015-126-C1-R0HEATSINK 54X54X15MM XCUT CP |
256 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 5.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CR101-50VEALUMINUM HEATSINK 50MM DEGREASED |
196 | - |
|
数据表 |
CR | Box | Active | Board Level, Vertical | TO-101 | Rectangular, Fins | 1.969" (50.00mm) | 1.063" (27.00mm) | - | - | 3 Clips and PC Pin | - | - | 5.30°C/W | Aluminum Alloy | Degreased |
|
TGH-0260-02ALUMINIUM HEAT SINK 26X26MM |
1,904 | - |
|
数据表 |
TGH | Bulk | Active | Top Mount | - | Square, Pin Fins | 1.024" (26.00mm) | 1.024" (26.00mm) | - | 0.583" (14.80mm) | - | - | - | - | Aluminum | - |
|
ATS-FPX035035020-57-C1-R0HEATSINK 35X35X20MM L-TAB FP |
145 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 13.13°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
7023BGBOARD LEVEL HEAT SINK |
3,756 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 1.950" (49.53mm) | 1.900" (48.26mm) | - | 0.950" (24.13mm) | Bolt On and PC Pin | 5.0W @ 30°C | 2.50°C/W @ 400 LFM | 4.40°C/W | Aluminum | Black Anodized |
|
ATS-CPX045045025-162-C2-R0HEATSINK 45X45X25MM L-TAB CP |
4,649 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | Push Pin | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

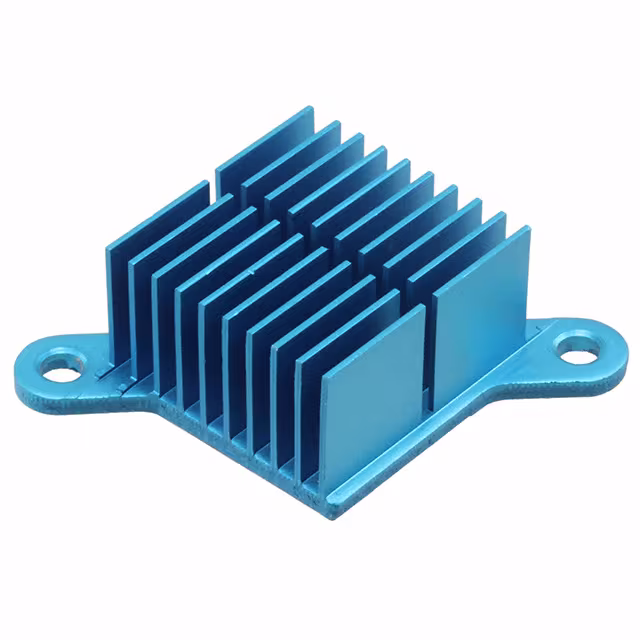

ATS-FPX025025020-45-C2-R0HEATSINK 25X25X20MM L-TAB FP |
107 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.790" (20.00mm) | Push Pin | - | 15.02°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
D10850-40HEATSINK 128PQFP COMPOSITE |
157 | - |
|
数据表 |
Deltem™ | Bulk | Active | Top Mount | BGA | Square, Pin Fins | 0.850" (21.59mm) | 0.850" (21.59mm) | - | 0.400" (10.16mm) | Thermal Tape, Adhesive (Not Included) | 2.5W @ 90°C | 20.00°C/W @ 100 LFM | - | Composite | - |
|

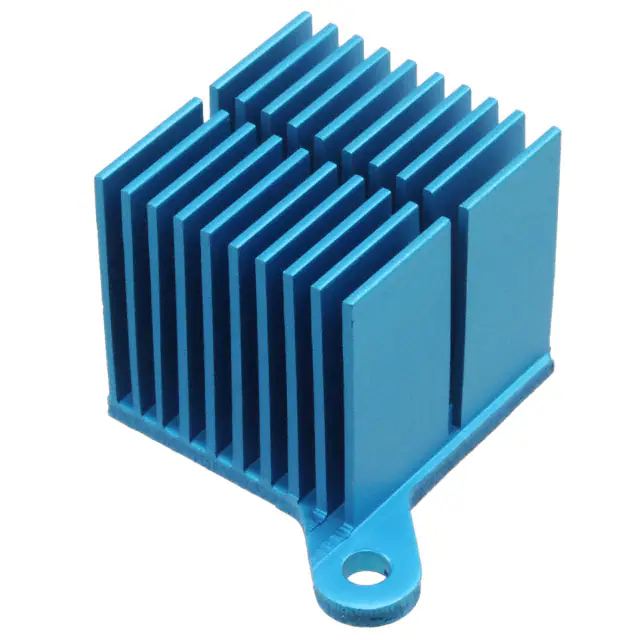

ATS-FPX025025025-46-C2-R0HEATSINK 25X25X25MM L-TAB FP |
113 | - |
|
数据表 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | Push Pin | - | 11.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
V2271E1CPU HEATSINK, CROSS CUT, AL6063, |
319 | - |
|
数据表 |
- | Bulk | Active | Top Mount | - | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.177" (29.90mm) | Thermal Tape, Adhesive (Not Included) | - | - | 12.00°C/W | Aluminum Alloy | Black Anodized |
|

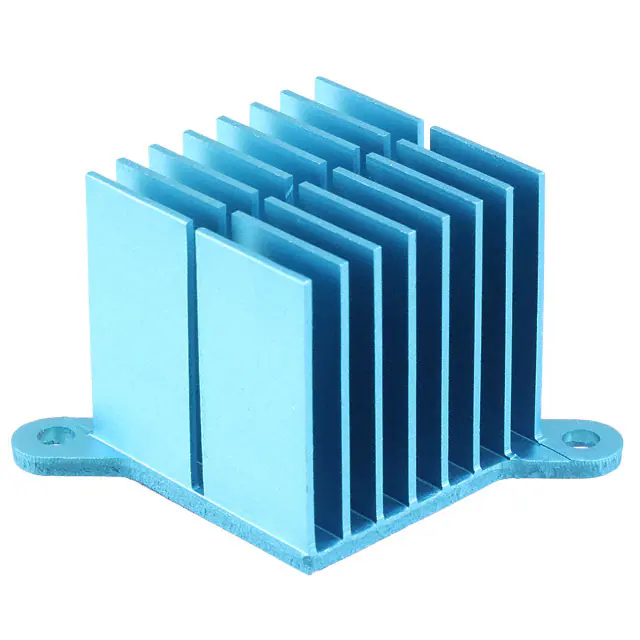

ATS-CPX030030030-145-C1-R0HEATSINK 30X30X30MM L-TAB CP |
321 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 4.68°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030030-173-C1-R0HEATSINK 30X30X30MM R-TAB CP |
197 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | Push Pin | - | 4.68°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

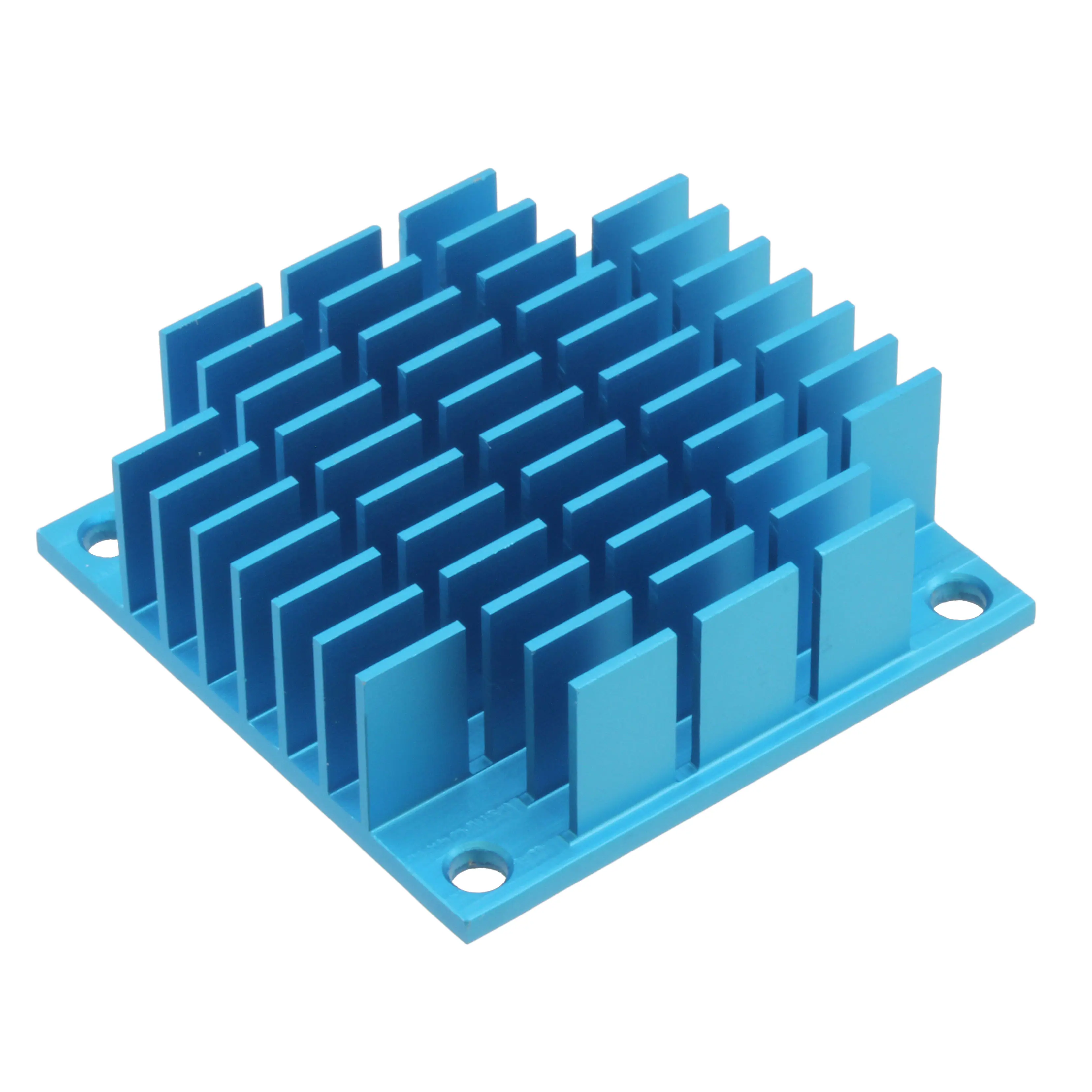

ATS-CPX045045015-118-C3-R0HEATSINK 45X45X15MM XCUT CP |
267 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | Push Pin | - | 6.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
