散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M47059B011000GMAX CLIP HEATSINK |
896 | - |
|
数据表 |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Rectangular, Angled Fins | 0.591" (15.00mm) | 0.764" (19.40mm) | - | 1.240" (31.50mm) | Clip and PC Pin | - | - | - | Aluminum | Black Anodized |
|
V2030AHEATSINK CPU FORGED |
1,715 | - |
|
数据表 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.256" (6.50mm) | Thermal Tape, Adhesive (Not Included) | - | - | 6.50°C/W | Aluminum Alloy | Clean Finished |
|

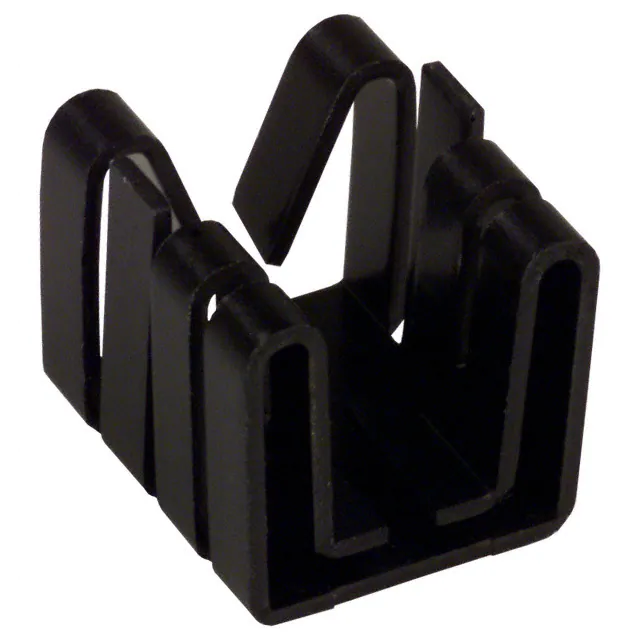

591202B00000GHEATSINK TO-220 VERT/HORZ MOUNT |
3,034 | - |
|
数据表 |
- | Bag | Active | Board Level | TO-220, TO-262 | Rectangular, Fins | 0.600" (15.24mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | Clip | 1.0W @ 40°C | 16.00°C/W @ 200 LFM | 26.80°C/W | Aluminum | Black Anodized |
|
311505B00000GTO-5 PUSH-ON HEATSINK |
336 | - |
|
数据表 |
- | Bulk | Active | Board Level | TO-5 | Cylindrical | - | - | 0.317" (8.05mm) ID, 0.375" (9.52mm) OD | 0.400" (10.16mm) | Press Fit | 1.0W @ 70°C | 45.00°C/W @ 200 LFM | 90.00°C/W | Aluminum | Black Anodized |
|
574902B00000GHEATSINK TO-220 CLIP-ON |
1,302 | - |
|
数据表 |
- | Bulk | Active | Board Level | TO-220 | Rectangular, Fins | 1.375" (34.93mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | Clip | 2.5W @ 40°C | 6.00°C/W @ 400 LFM | 16.00°C/W | Aluminum | Black Anodized |
|
658-25ABT1EHEATSINK CPU 28MM SQ BLK W/TAPE |
2,111 | - |
|
数据表 |
658 | Bulk | Active | Top Mount | BGA | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.250" (6.35mm) | Thermal Tape, Adhesive (Included) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
M47079B011000GMAX CLIP HEATSINK |
546 | - |
|
数据表 |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Rectangular, Angled Fins | 0.790" (20.07mm) | 0.764" (19.40mm) | - | 1.240" (31.50mm) | Clip and PC Pin | - | - | - | Aluminum | Black Anodized |
|
7021B-MTGHEATSINK TO-220 TAB FOLD 42.16MM |
6,795 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 1.450" (36.83mm) | 1.750" (44.45mm) | - | 0.380" (9.65mm) | Bolt On and PC Pin | 6.0W @ 50°C | 4.00°C/W @ 300 LFM | 6.80°C/W | Aluminum | Black Anodized |
|

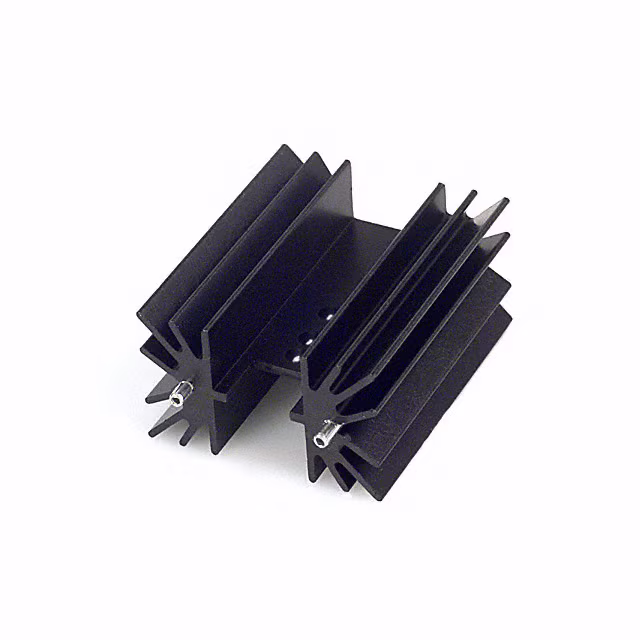

7-339-3PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
3,395 | - |
|
数据表 |
7 | Box | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | Bolt On and PC Pin | 6.0W @ 40°C | - | 7.00°C/W | Aluminum | Black Anodized |
|
TGH-0250-01ALUMINIUM HEAT SINK 25X25MM |
143 | - |
|
数据表 |
TGH | Bulk | Active | Top Mount | - | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.354" (9.00mm) | - | - | - | - | Aluminum | - |
|
TGH-0300-04ALUMINIUM HEAT SINK 30X30MM |
105 | - |
|
数据表 |
TGH | Bulk | Active | Top Mount | - | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.591" (15.01mm) | - | - | - | - | Aluminum | - |
|
HSE08-505028HEAT SINK, EXTRUSION, TO-218/TO- |
699 | - |
|
数据表 |
HSE | Bag | Active | Board Level | TO-218, TO-220 | Rectangular, Angled Fins | 1.969" (50.00mm) | 1.102" (28.00mm) | - | 1.969" (50.00mm) | Clip | 10.53W @ 75°C | 2.70°C/W @ 200 LFM | 7.13°C/W | Aluminum Alloy | Black Anodized |
|

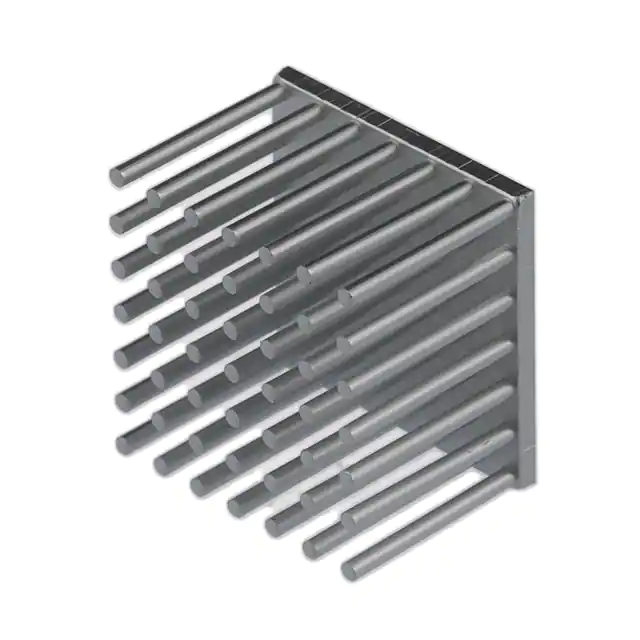

V2032NHEATSINK CPU FORGED |
1,396 | - |
|
数据表 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.728" (18.50mm) | Thermal Tape, Adhesive (Not Included) | - | - | 5.00°C/W | Aluminum Alloy | Natural Anodized |
|

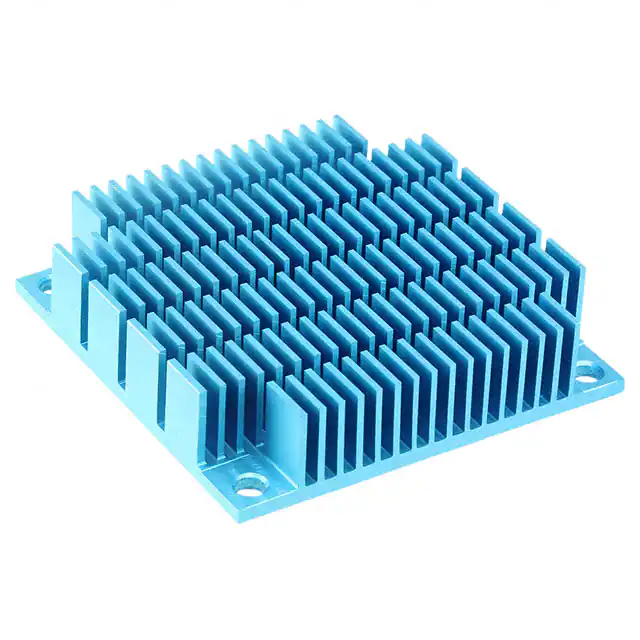

ATS-FPX054054013-17-C1-R0HEATSINK 54X54X12.7MM XCUT FP |
3,899 | - |
|
数据表 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | Push Pin | - | 15.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
658-35ABT3HEATSINK CPU 28MM SQ BLK W/TAPE |
1,023 | - |
|
数据表 |
658 | Bulk | Active | Top Mount | BGA | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.350" (8.89mm) | Thermal Tape, Adhesive (Included) | - | 3.00°C/W @ 800 LFM | - | Aluminum | Black Anodized |
|
V2276E1CPU HEATSINK, CROSS CUT, AL6063, |
345 | - |
|
数据表 |
- | Bulk | Active | Top Mount | - | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.984" (25.00mm) | Thermal Tape, Adhesive (Not Included) | - | - | 19.50°C/W | Aluminum Alloy | Black Anodized |
|

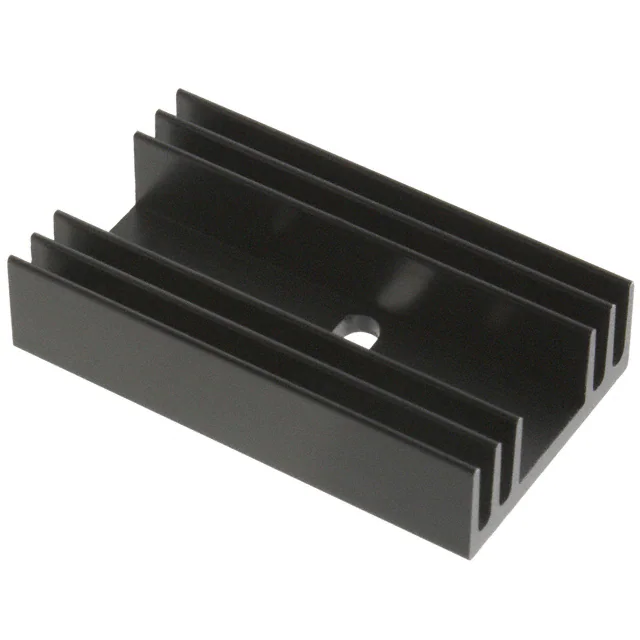

V4330FHEATSINK ALUM ANOD |
236 | - |
|
数据表 |
- | Bulk | Active | Board Level | KLP | Rectangular, Fins | 1.969" (50.00mm) | 1.142" (29.00mm) | - | 0.453" (11.50mm) | Bolt On | - | - | 10.00°C/W | Aluminum | Black Anodized |
|
577002B04000GHEATSINK TO-220 W/TAB .25 |
1,060 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.250" (6.35mm) | Bolt On and PC Pin | 1.5W @ 50°C | 16.00°C/W @ 200 LFM | 32.00°C/W | Aluminum | Black Anodized |
|
HSE07-753045HEAT SINK, EXTRUSION, TO-218/TO- |
935 | - |
|
数据表 |
HSE | Bag | Active | Board Level | TO-218, TO-220 | Rectangular, Fins | 2.953" (75.00mm) | 1.181" (30.00mm) | - | 1.772" (45.00mm) | Clip | 15.46W @ 75°C | 2.10°C/W @ 200 LFM | 4.85°C/W | Aluminum Alloy | Black Anodized |
|
HSE09-755028HEAT SINK, EXTRUSION, TO-218/TO- |
965 | - |
|
数据表 |
HSE | Bag | Active | Board Level | TO-218, TO-220 | Rectangular, Angled Fins | 2.953" (75.00mm) | 1.102" (28.00mm) | - | 1.969" (50.00mm) | Clip | 13.26W @ 75°C | 2.50°C/W @ 200 LFM | 5.66°C/W | Aluminum Alloy | Black Anodized |
