散热器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 附件方式 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
273-ABHEATSINK TO-220 LOW HEIGHT BLK |
6,688 | - |
|
数据表 |
273 | Bulk | Active | Board Level | TO-220, TO-218 | Rectangular, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | Bolt On | 2.0W @ 49°C | 7.20°C/W @ 400 LFM | 24.50°C/W | Aluminum | Black Anodized |
|
V2016BHEATSINK CPU XCUT |
25,739 | - |
|
数据表 |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Square, Pin Fins | 0.335" (8.50mm) | 0.335" (8.50mm) | - | 0.315" (8.00mm) | Thermal Tape, Adhesive (Not Included) | - | - | 32.00°C/W | Aluminum Alloy | Black Anodized |
|
290-2ABHEATSINK TO-220 DUAL MNT BLK |
6,693 | - |
|
数据表 |
290 | Bulk | Active | Board Level | TO-218, TO-202, TO-220 (Dual) | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | Bolt On | 2.0W @ 44°C | 7.00°C/W @ 400 LFM | 22.00°C/W | Aluminum | Black Anodized |
|
V7237CHEATSINK TO-220 19.05X13.21MM |
3,624 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | Bolt On and PC Pin | - | - | 21.00°C/W | Aluminum | Black Anodized |
|

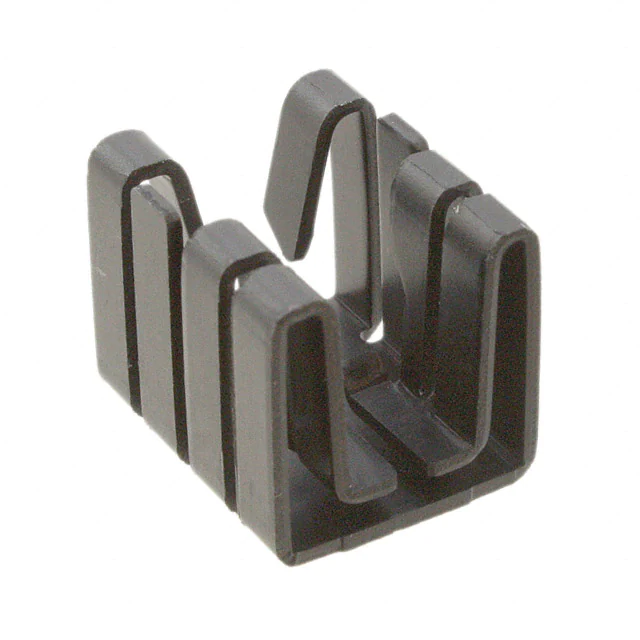

V8508GHEATSINK TO-220 15X12.8MM |
18,498 | - |
|
数据表 |
- | Bulk | Active | Board Level | TO-220 | Rectangular, Fins | 0.591" (15.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | Press Fit | 3.0W @ 60°C | 14.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-PCBT1085HEATSINK TO-220 CLIP-ON |
5,042 | - |
|
数据表 |
- | Bulk | Active | Board Level | TO-220 | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.504" (12.80mm) | Clip | - | 4.40°C/W @ 200 LFM | 27.30°C/W | Aluminum | Black Anodized |
|
XL25W-TO247-22-17-1CERAMIC HEAT SPREADER 22X17MM WH |
1,362 | - |
|
数据表 |
XL-25 | Bulk | Active | Heat Spreader | TO-247 | Rectangular | 0.866" (22.00mm) | 0.669" (17.00mm) | - | 0.039" (1.00mm) | Thermal Tape | - | - | - | Ceramic | - |
|
579302B00000GHEATSINK TO-220 SNAP-DOWN .75" |
8,413 | - |
|
数据表 |
- | Bag | Active | Board Level | TO-220 | Rectangular, Fins | 0.750" (19.05mm) | 0.980" (24.89mm) | - | 0.440" (11.18mm) | Clip | 3.0W @ 50°C | 6.00°C/W @ 500 LFM | 16.80°C/W | Aluminum | Black Anodized |
|
HSS-B20-0635H-01HEATSINK TO-220 2.7W ALUMINUM |
4,399 | - |
|
数据表 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.520" (13.20mm) | 0.375" (9.53mm) | - | 0.748" (19.00mm) | PC Pin | 2.7W @ 75°C | 9.51°C/W @ 200 LFM | 27.78°C/W | Aluminum | Black Anodized |
|

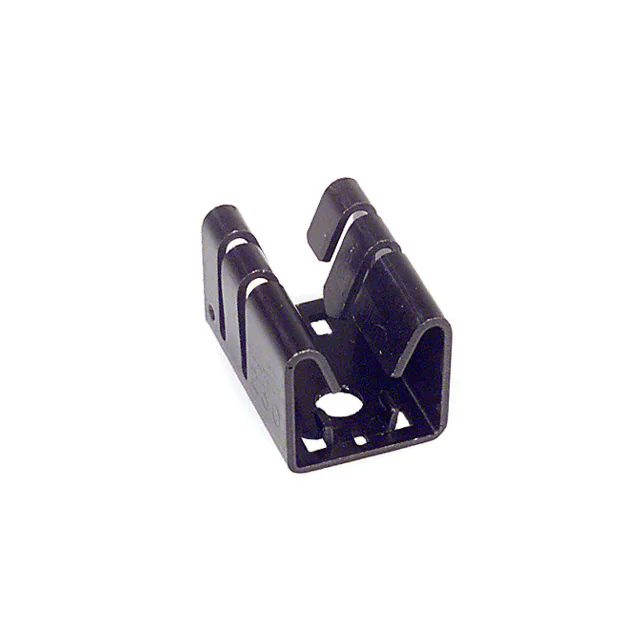

230-75ABHEATSINK TO-220 VERT/HORZ BLK |
3,232 | - |
|
数据表 |
230 | Bulk | Active | Board Level | TO-220 | Rectangular, Fins | 0.750" (19.05mm) | 0.570" (14.47mm) | - | 0.500" (12.70mm) | Bolt On | 2.0W @ 57°C | 7.50°C/W @ 400 LFM | 28.50°C/W | Aluminum | Black Anodized |
|
XL25W-TO247-22-17-0.64CERAMIC HEAT SPREADER 22X17MM WH |
1,614 | - |
|
数据表 |
XL-25 | Bulk | Active | Heat Spreader | TO-247 | Rectangular | 0.866" (22.00mm) | 0.669" (17.00mm) | - | 0.025" (0.64mm) | Thermal Tape | - | - | - | Ceramic | - |
|
575002B00000GHEATSINK TO-220 TABS BLACK |
4,977 | - |
|
数据表 |
- | Bag | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | Bolt On and PC Pin | 1.0W @ 20°C | 5.00°C/W @ 400 LFM | 13.60°C/W | Aluminum | Black Anodized |
|
217-36CTE6HEATSINK DPAK SMT TIN PLATED |
7,879 | - |
|
数据表 |
217 | Bulk | Active | Top Mount | D²Pak (TO-263), SOL-20, SOT-223, TO-220 | Rectangular, Fins | 0.740" (18.80mm) | 0.600" (15.24mm) | - | 0.360" (9.14mm) | SMD Pad | 1.0W @ 55°C | 16.00°C/W @ 200 LFM | 55.00°C/W | Copper | Tin |
|

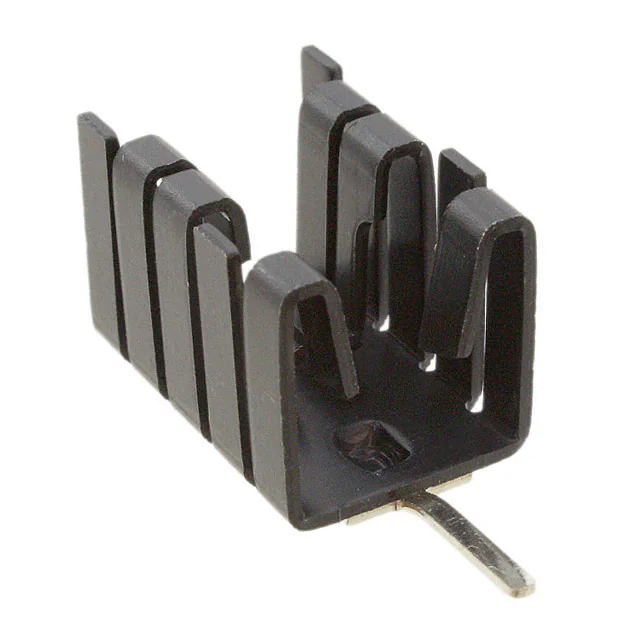

V8508B-LHEATSINK TO-220 19X12.8MM |
1,381 | - |
|
数据表 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.748" (19.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | Press Fit and PC Pin | - | - | 21.00°C/W | Aluminum | Black Anodized |
|

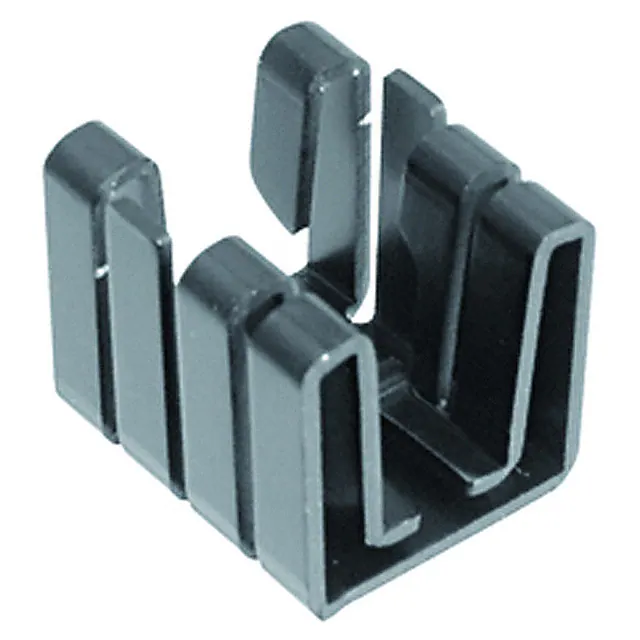

V8508HHEAT SINK ANOD ALUM TO-220 |
2,579 | - |
|
数据表 |
- | Bulk | Active | Top Mount | TO-220 | Square, Pin Fins | 0.591" (15.00mm) | 0.504" (12.80mm) | - | 0.500" (12.70mm) | PC Pin | - | - | 26.00°C/W | Aluminum | Black Anodized |
|
HSS-B20-NP-04HEATSINK TO-220 6.5W ALUMINUM |
5,572 | - |
|
数据表 |
HSS | Box | Active | Board Level | TO-220 | Rectangular, Fins | 1.450" (36.83mm) | 1.750" (44.45mm) | - | 0.370" (9.40mm) | Bolt On | 6.5W @ 75°C | 3.76°C/W @ 200 LFM | 11.54°C/W | Aluminum | Black Anodized |
|

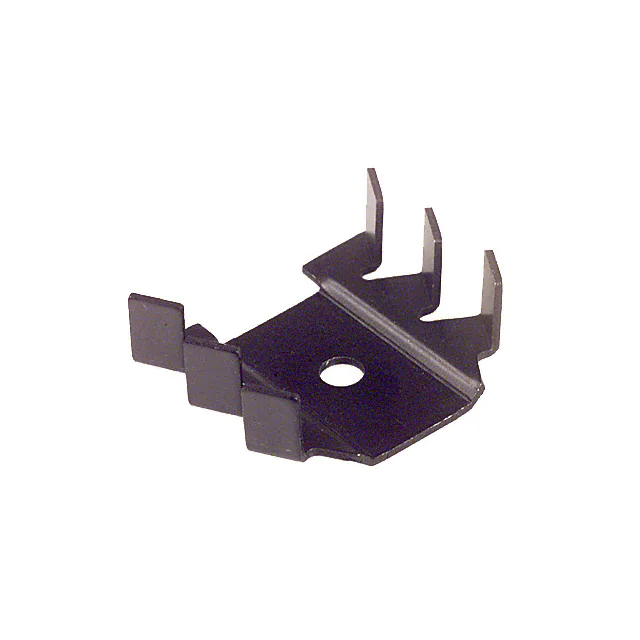

291-H36ABHEATSINK TO-220 BOLT-ON BLK |
5,196 | - |
|
数据表 |
291 | Bulk | Active | Board Level | TO-220 | Rectangular, Fins | 0.860" (21.84mm) | 1.000" (25.40mm) | - | 0.360" (9.14mm) | Bolt On | 2.0W @ 68°C | 16.00°C/W @ 600 LFM | 34.00°C/W | Aluminum | Black Anodized |
|
HSS-B20-NPR-02HEATSINK TO-220 5.1W ALUMINUM |
2,648 | - |
|
数据表 |
HSS | Bag | Active | Board Level, Vertical | TO-220 | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | Bolt On and Board Mounts | 5.1W @ 75°C | 4.20°C/W @ 200 LFM | 14.71°C/W | Aluminum | Black Anodized |
|
217-36CTRE6BOARD LEVEL HEAT SINKS |
2,120 | - |
|
数据表 |
217 | Tape & Reel (TR) | Active | Top Mount | D²Pak (TO-263), SOL-20, SOT-223, TO-220 | Rectangular, Fins | 0.740" (18.80mm) | 0.600" (15.24mm) | - | 0.360" (9.14mm) | SMD Pad | 1.0W @ 55°C | 16.00°C/W @ 200 LFM | 55.00°C/W | Copper | Tin |
|
HSB02-101007HEAT SINK, BGA, 10 X 10 X 7 MM |
2,105 | - |
|
数据表 |
HSB | Box | Active | Top Mount | BGA | Square, Pin Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.275" (7.00mm) | Adhesive (Not Included) | 2.0W @ 75°C | 16.50°C/W @ 200 LFM | 37.90°C/W | Aluminum Alloy | Black Anodized |
