干簧继电器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点额定值（电流） | 切换电压 | 线圈电流 | 触点材料 | 线圈类型 | 特性 | 触点形式 | 端接样式 | 密封等级 | 工作温度 | 必须动作电压 | 释放时间 | 必须释放电压 | 动作时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7304-24-1001RELAY REED 4PST 500MA 24V Coto Technology |
2,314 | - |
|
数据表 |
7000 | Bulk | Not For New Designs | Through Hole | 24VDC | 500 mA | 500VAC, 500VDC - Max | 17.8 mA | - | Non Latching | Diode | 4PST-NO (4 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.1 ms | 2 VDC | 1 ms |
|
|
7143-05-1011RELAY REED 3PDT 250MA 5V Coto Technology |
2,729 | - |
|
数据表 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 90.9 mA | - | Non Latching | Diode, Electrostatic Shield | 3PDT (3 Form C) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 2.5 ms | 0.4 VDC | 2 ms |
|
|
3650-05-52RELAY REED 3PST 250MA 5V Coto Technology |
2,571 | - |
|
数据表 |
3600 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
7142-12-1000RELAY REED DPDT 250MA 12V Coto Technology |
1,845 | - |
|
数据表 |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 24.5 mA | - | Non Latching | - | DPDT (2 Form C) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 2.5 ms | 1 VDC | 2 ms |
|
|
3650-12-72RELAY REED 3PST 250MA 12V Coto Technology |
4,514 | - |
|
数据表 |
3600 | Tube | Active | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 6 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.75 ms |
|
|
3540-12-810RELAY REED SPST 500MA 12V Coto Technology |
4,033 | - |
|
数据表 |
3500 | Tube | Active | Through Hole | 12VDC | 500 mA | 500VAC, 500VDC - Max | 8 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.2 ms | 1 VDC | 1 ms |
|
|
3541-05-911RELAY REED DPST 500MA 5V Coto Technology |
1,625 | - |
|
数据表 |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 25 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.2 ms | 0.4 VDC | 1 ms |
|
|
3501-12-911RELAY REED SPST 500MA 12V Coto Technology |
1,254 | - |
|
数据表 |
3500 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.75 ms |
|

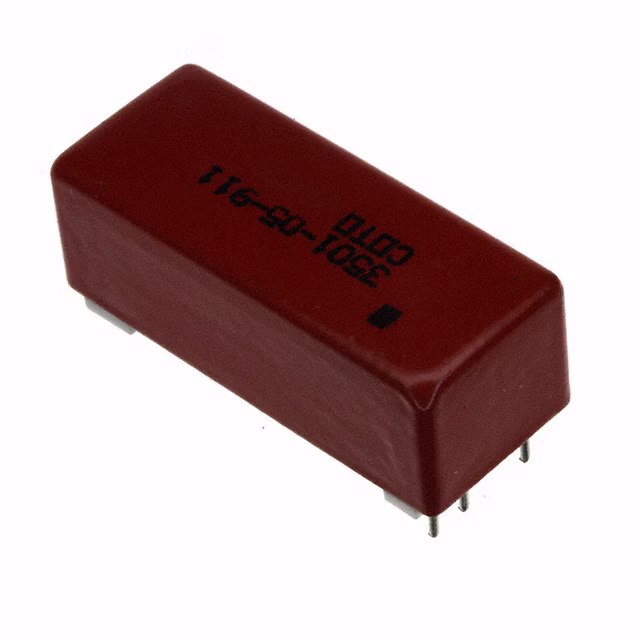

3501-05-911RELAY REED SPST 500MA 5V Coto Technology |
4,191 | - |
|
数据表 |
3500 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|
|
3501-12-511RELAY REED SPST 500MA 12V Coto Technology |
4,197 | - |
|
数据表 |
3500 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 6 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.75 ms |
