干簧继电器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点额定值（电流） | 切换电压 | 线圈电流 | 触点材料 | 线圈类型 | 特性 | 触点形式 | 端接样式 | 密封等级 | 工作温度 | 必须动作电压 | 释放时间 | 必须释放电压 | 动作时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007-12-00RELAY REED SPST 500MA 12V Coto Technology |
46,024 | - |
|
数据表 |
9007, Spartan | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.2 ms | 1 VDC | 0.5 ms |
|
9007-05-01RELAY REED SPST 500MA 5V Coto Technology |
19,943 | - |
|
数据表 |
9007, Spartan | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|
|
9007-05-00RELAY REED SPST 500MA 5V Coto Technology |
46,657 | - |
|
数据表 |
9007, Spartan | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|

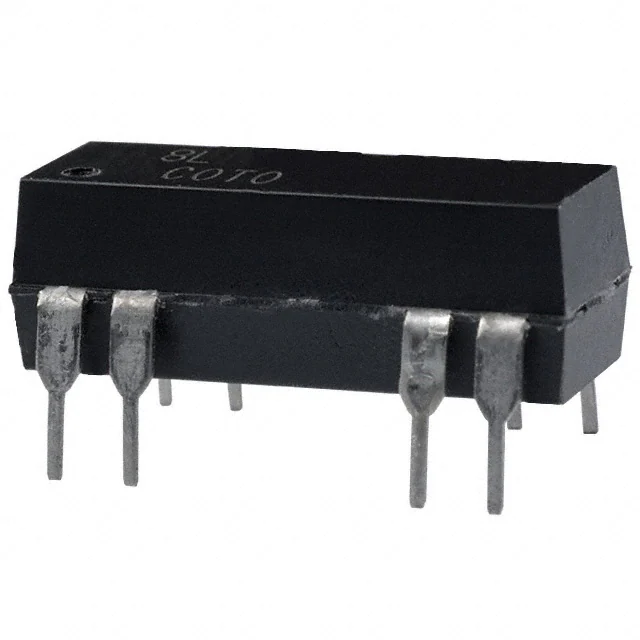

8L01-05-001RELAY REED SPST 500MA 5V Coto Technology |
2,722 | - |
|
数据表 |
8L | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|

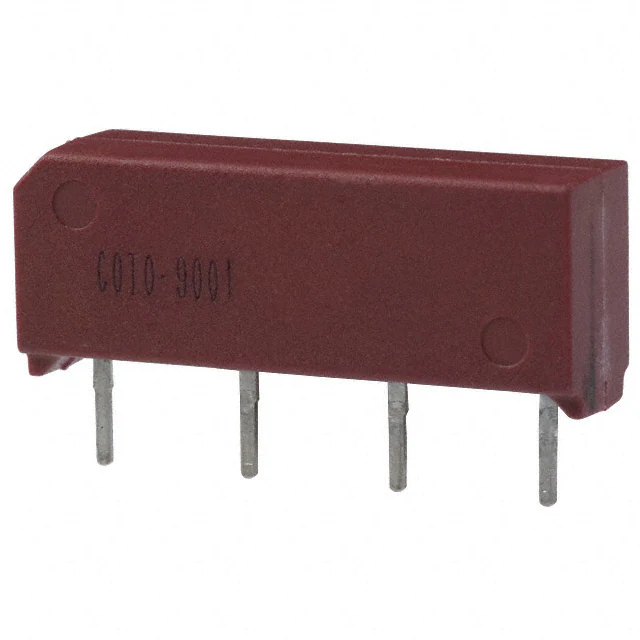

9001-12-01RELAY REED SPST 500MA 12V Coto Technology |
20,988 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.35 ms |
|

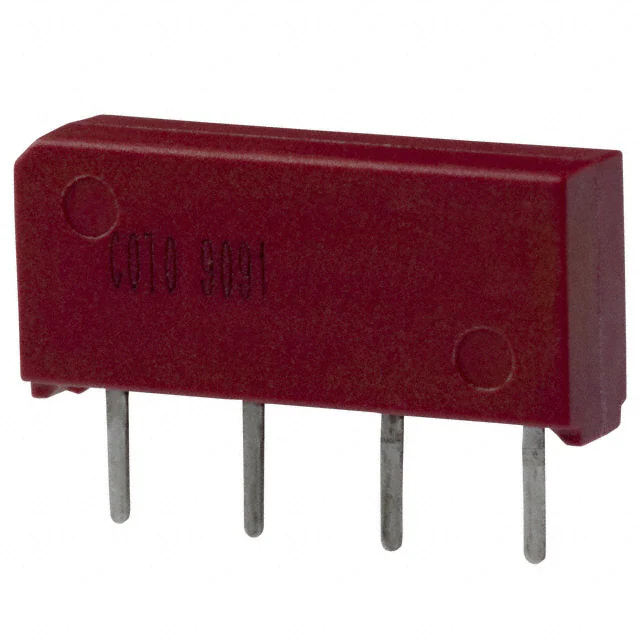

9091-05-00RELAY REED SPST 500MA 5V Coto Technology |
16,293 | - |
|
数据表 |
9091 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.3 ms | 0.4 VDC | 0.5 ms |
|
|
9091-05-01RELAY REED SPST 500MA 5V Coto Technology |
101,585 | - |
|
数据表 |
9091 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.3 ms | 0.4 VDC | 0.5 ms |
|
|
9001-05-00RELAY REED SPST 500MA 5V Coto Technology |
26,787 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
|
|
9001-12-00RELAY REED SPST 500MA 12V Coto Technology |
12,004 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.35 ms |
|
|
9001-05-01RELAY REED SPST 500MA 5V Coto Technology |
6,403 | - |
|
数据表 |
9000 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.35 ms |
