干簧继电器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点额定值（电流） | 切换电压 | 线圈电流 | 触点材料 | 线圈类型 | 特性 | 触点形式 | 端接样式 | 密封等级 | 工作温度 | 必须动作电压 | 释放时间 | 必须释放电压 | 动作时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L41-24-111RELAY REED SPDT 250MA 24V Coto Technology |
113 | - |
|
数据表 |
8L | Tube | Active | Through Hole | 24VDC | 250 mA | 100VAC, 100VDC - Max | 12 mA | - | Non Latching | Diode, Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 19.2 VDC | 1 ms | 2 VDC | 1 ms |
|
8L61-05-011RELAY REED SPDT 250MA 5V Coto Technology |
1,145 | - |
|
数据表 |
8L | Bulk | Active | Surface Mount | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | - | Non Latching | Diode | SPDT (1 Form C) | J Lead | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.5 VDC | 1 ms |
|
2974-12-00RELAY REED SPST 500MA 12V Coto Technology |
405 | - |
|
数据表 |
2970 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 8 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 125°C | 6.7 VDC | 0.1 ms | 1 VDC | 0.5 ms |
|
2204-12-301RELAY REED SPST 500MA 12V Coto Technology |
272 | - |
|
数据表 |
2200 | Tube | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 8 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 0.5 ms |
|
7102-12-1100RELAY REED DPST 500MA 12V Coto Technology |
883 | - |
|
数据表 |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
2373-05-000RELAY REED 3PST 500MA 5V Coto Technology |
4,403 | - |
|
数据表 |
2370 | Tray | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 55.6 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 2.5 VDC | 0.15 ms | 0.4 VDC | 0.5 ms |
|
2911-05-301RELAY REED SPDT 250MA 5V Coto Technology |
410 | - |
|
数据表 |
2900 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 2 ms | 0.4 VDC | 1 ms |
|

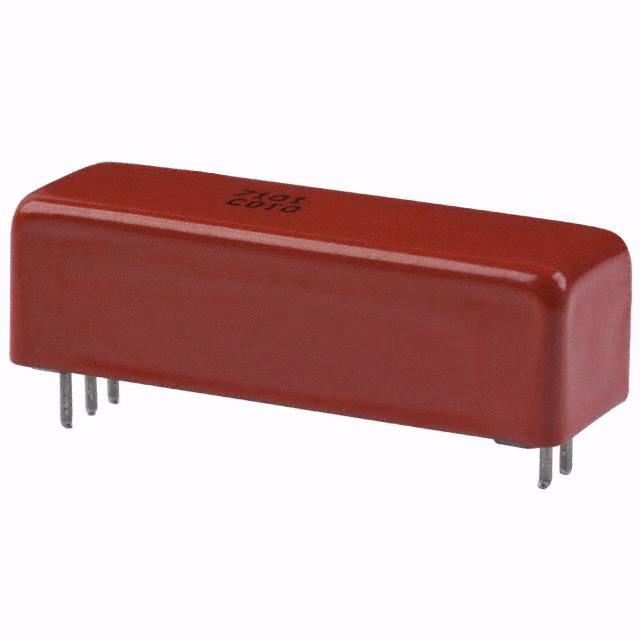

7101-12-1011RELAY REED SPST 500MA 12V Coto Technology |
245 | - |
|
数据表 |
7000 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | - | Non Latching | Diode, Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.1 ms | 1 VDC | 1 ms |
|
2271-05-001RELAY REED SPDT 250MA 5V Coto Technology |
1,392 | - |
|
数据表 |
2270 | Tube | Active | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 50 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | Sealed - Hermetically | -20°C ~ 125°C | 2.5 VDC | 2 ms | 0.4 VDC | 1 ms |
|
7302-05-1000RELAY REED DPST 500MA 5V Coto Technology |
494 | - |
|
数据表 |
7000 | Tube | Not For New Designs | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 50 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
