onsemi|单个二极管 - 页 234

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	技术	电压 - 直流反向 (Vr)（最大值）	电压 - 正向 (Vf)（最大值）@ If	速度	反向恢复时间 (trr)	电流 - 反向漏电 @ Vr	电容 @ Vr, F	电流 - 平均整流（Io）	等级	认证	安装类型	供应商设备封装	工作温度 - 结点

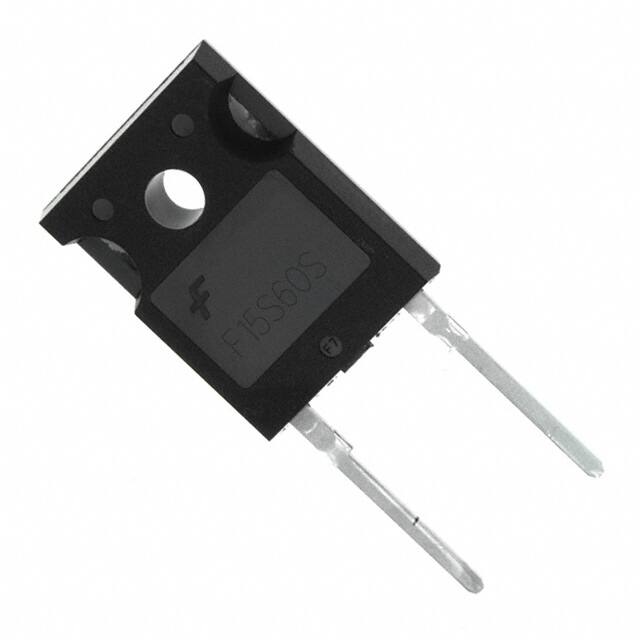

FFH15S60STU DIODE GEN PURP 600V 15A TO247-2 onsemi	4,558	-	询价单	数据表	-	TO-247-2	Tube	Obsolete	Standard	600 V	2.6 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	100 µA @ 600 V	-	15A	-	-	Through Hole	TO-247-2	-65°C ~ 150°C
FFH30S60STU DIODE GEN PURP 600V 30A TO247-2 onsemi	3,743	-	询价单	数据表	-	TO-247-2	Tube	Obsolete	Standard	600 V	2.6 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	40 ns	100 µA @ 600 V	-	30A	-	-	Through Hole	TO-247-2	-65°C ~ 150°C
FFPF15S60STU DIODE GEN PURP 600V 15A TO220F onsemi	3,041	-	询价单	数据表	Stealth™	TO-220-2 Full Pack	Tube	Obsolete	Avalanche	600 V	2.6 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	35 ns	100 µA @ 600 V	-	15A	-	-	Through Hole	TO-220F-2L	-65°C ~ 150°C
NRVB1035G DIODE SCHOTTKY 35V 10A TO220-2 onsemi	9,891	-	询价单	数据表	SWITCHMODE™	TO-220-2	Tube	Obsolete	Schottky	35 V	840 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 35 V	-	10A	-	-	Through Hole	TO-220-2	-65°C ~ 175°C
NRVBB1060T4G DIODE SCHOTTKY 60V 10A D2PAK onsemi	3,162	-	询价单	数据表	SWITCHMODE™	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tape & Reel (TR)	Obsolete	Schottky	60 V	800 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 60 V	-	10A	-	-	Surface Mount	D2PAK	-65°C ~ 175°C
FFSB2065BDN-F085 DIODE SIC 650V 23.6A D2PAK-3 onsemi	659	-	询价单	数据表	-	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	Tube	Active	SiC (Silicon Carbide) Schottky	650 V	1.75 V @ 10 A	No Recovery Time > 500mA (Io)	0 ns	40 µA @ 650 V	421pF @ 1V, 100kHz	23.6A	Automotive	AEC-Q101	Surface Mount	TO-263 (D2PAK)	-55°C ~ 175°C
SURF81620CTG DIODE GEN PURP 200V 16A TO220FP onsemi	8,136	-	询价单	数据表	-	TO-220-3 Full Pack	Tube	Obsolete	Standard	200 V	-	Standard Recovery >500ns, > 200mA (Io)	-	-	-	16A	-	-	Through Hole	TO-220FP	-
FFSD08120A DIODE SIC 1.2KV 22.5A TO252AA onsemi	2,010	-	询价单	数据表	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tape & Reel (TR)	Active	SiC (Silicon Carbide) Schottky	1200 V	1.75 V @ 8 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	538pF @ 1V, 100kHz	22.5A	-	-	Surface Mount	TO-252AA	-55°C ~ 175°C
FFP04H60STU DIODE GEN PURP 600V 4A TO220-2L onsemi	8,101	-	询价单	数据表	-	TO-220-2	Tube	Obsolete	Standard	600 V	2.1 V @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	45 ns	100 µA @ 600 V	-	4A	-	-	Through Hole	TO-220-2L	-65°C ~ 150°C
MSRF1560G DIODE GEN PURP 600V 15A TO220FP onsemi	5,480	-	询价单	数据表	SWITCHMODE™	TO-220-2 Full Pack	Tube	Obsolete	Standard	600 V	1.8 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	45 ns	15 µA @ 600 V	-	15A	-	-	Through Hole	TO-220FP	-65°C ~ 150°C

共 2853 条记录«上一页 1... 230 231 232 233234235 236 237...286 下一页»
