按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1825098-1SWITCH PUSH SPST-NO 1A 125V |
0 | - |
|
数据表 |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | Off-Mom | 1A (AC/DC) | 125 V | Circular - 4.83mm Dia | 20 V | Round, Plunger | SPST-NO | No Marking | Black | - | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
YB15MKW01-5C05-JCSHORT BODY PUSHBUTTON |
0 | - |
|
数据表 |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Round, Button | SPDT | - | Clear (Red Filter/Diffuser) | - | LED, Red | -25°C ~ 50°C | - | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
PV2S64011-M01SWITCH PUSH SPST-NO 2A 48V |
0 | - |
|
数据表 |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Domed | SPST-NO | - | Black | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|

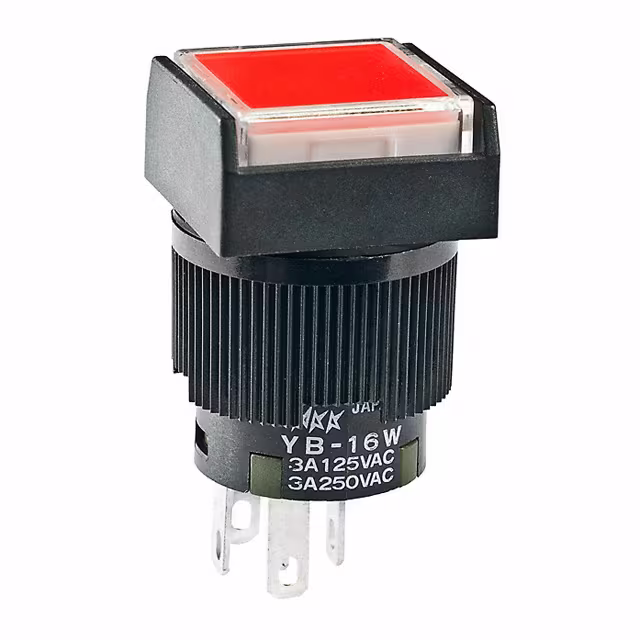

YB16WSKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | On-On | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Square, Button | SPDT | No Marking | Clear (Red Filter/Diffuser) | Tactile Feedback | LED, Red | -25°C ~ 50°C | IP65 - Dust Tight, Water Resistant | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
MB2011SS1W01-BCSWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
SCB15P10A-4BBSWITCH PUSHBUTTON SPDT 10A 125V |
0 | - |
|
数据表 |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 10A (AC) | 125 V | Circular - 12.50mm Dia | - | Round, Button | SPDT | No Marking | White | With Shroud | - | -40°C ~ 85°C | - | - | Quick Connect - 0.187" (4.7mm) |
|
|
SCB15P10A-4CASWITCH PUSHBUTTON SPDT 10A 125V |
0 | - |
|
数据表 |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 10A (AC) | 125 V | Circular - 12.50mm Dia | - | Round, Button | SPDT | No Marking | Red | With Shroud | - | -40°C ~ 85°C | - | - | Quick Connect - 0.187" (4.7mm) |
|
|
SCB15P10A-4CBSWITCH PUSHBUTTON SPDT 10A 125V |
0 | - |
|
数据表 |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 10A (AC) | 125 V | Circular - 12.50mm Dia | - | Round, Button | SPDT | No Marking | Red | With Shroud | - | -40°C ~ 85°C | - | - | Quick Connect - 0.187" (4.7mm) |
|
|
SERL GY GN 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
0 | - |
|
数据表 |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | On-Mom | 10mA (DC) | - | - | 24 V | Square, Button | SPDT | No Marking | Gray | - | LED, Green | -25°C ~ 85°C | - | - | PC Pin |
|
|
38BT-0-V-4-NSWITCH PUSH SPST-NO 1A 120V |
0 | - |
|
数据表 |
38BT | Bulk | Active | Through Hole | Standard | Off-Mom | 1A (AC/DC) | 120 V | - | 28 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | - | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
38BT-0-H-4-SSWITCH PUSHBUTTON SPST-NO 1A 120 |
0 | - |
|
数据表 |
38BT | Bulk | Active | Through Hole, Right Angle | Standard | Off-Mom | 1A (AC/DC) | 120 V | - | 28 V | Round, Plunger, Flush | SPST-NO | No Marking | Black | Sealed - Fully | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
PV2F240SS-M01SWITCH PB SPST-NO 2A 48V |
0 | - |
|
数据表 |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Flush | SPST-NO | - | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder Lug |
|
8168SHV6BE2SWITCH PUSH SPDT 0.4VA 20V |
0 | - |
|
数据表 |
8060 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
PV2S640BB-M01SWITCH PUSH SPST-NO 2A 48V " |
0 | - |
|
数据表 |
PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 48 V | Round, Button, Domed | SPST-NO | - | Black | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
8532MCBE3SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
8500 | Tray | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NO | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
TP43P003000SWITCH PUSH DPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TP | Bulk | Active | Through Hole | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | - | 20 V | Round, Plunger | DPST-NO | No Marking | Black | Overtravel | - | -30°C ~ 85°C | - | - | PC Pin |
|
8534MZQE2SWITCH PUSH SPST-NC 1A 120V |
0 | - |
|
数据表 |
8500 | Tray | Active | Panel Mount, Rear | Standard | On-Mom | 1A (AC/DC) | 120 V | Circular - 6.35mm Dia | 28 V | Round, Plunger | SPST-NC | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
|
|
PV2S64011-M06SWITCH PUSH SPST-NO 2A 48V |
0 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PVA6RE24231SWITCH PB SPST-NO 2A 36V |
0 | - |
|
数据表 |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 36 V | Round, Button | SPST-NO | - | Clear | - | LED, Green | -20°C ~ 70°C | IP67 - Dust Tight, Waterproof | 3.1 VDC | Solder Lug |
|
|
PV1F240SS-M01SWITCH PUSHBUTTON SPST-NO 2A 48V |
0 | - |
|
数据表 |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | Off-Mom | 2A (DC) | - | Circular - 19.00mm Dia | 48 V | Round, Button, Flush | SPST-NO | Power Symbol | Silver | - | - | -20°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
