按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LB16SKW01-01-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-On | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear (Red Filter/Diffuser) | - | Neon, Red | -25°C ~ 50°C | - | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
LB15SKW01-01-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | - | Neon, White | -25°C ~ 50°C | - | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
LB15SKW01-01-JESWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear (Yellow Filter/Diffuser) | - | Neon, Yellow | -25°C ~ 50°C | - | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
LB15SKW01-01-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear (Red Filter/Diffuser) | - | Neon, Red | -25°C ~ 50°C | - | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
LB15SKW01-01-CJSWITCH PUSHBUTTON SPDT 3A 125V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Red | - | Neon, Red | -25°C ~ 50°C | - | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
UB226SKG035F-1JFSWITCH PUSH DPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | On-On | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | DPDT | No Marking | Clear (Green Filter/Diffuser) | Sealed - Fully | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | PC Pin |
|
|
UB226SKG035F-3JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | On-On | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | DPDT | No Marking | Clear (White Filter/Diffuser) | Sealed - Fully | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | PC Pin |
|
|
YB26CKW01-BBSWITCH PUSHBUTTON DPDT 3A 125V |
0 | - |
|
数据表 |
YB | Tray | Active | Panel Mount, Front | Standard | On-On | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Round, Button | DPDT | No Marking | White (White Filter/Diffuser) | Voltage Reduction Lighting | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
YB26CKW01-FBSWITCH PUSHBUTTON DPDT 3A 125V |
0 | - |
|
数据表 |
YB | Bulk | Active | Panel Mount, Front | Standard | On-On | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Round, Button | DPDT | No Marking | Green (White Filter/Diffuser) | Voltage Reduction Lighting | - | -25°C ~ 70°C | - | - | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
71092SWITCH H/L |
260 | - |
|
数据表 |
- | Bulk | Active | Panel Mount, Rear | Standard | Off-On-On | 15A (DC) | - | - | 12 V | Round, Button | SPDT | No Marking | - | - | - | - | - | - | Quick Connect - 0.250" (6.3mm) |
|
|
YB26WSKW01-BBSWITCH PUSHBUTTON DPDT 3A 125V |
0 | - |
|
数据表 |
YB | Tray | Active | Panel Mount, Front | Standard | On-On | 3A (AC/DC) | 125 V | Circular - 16.00mm Dia | 30 V | Square, Button | DPDT | No Marking | White (White Filter/Diffuser) | Voltage Reduction Lighting | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | Solder, Quick Connect - 0.110" (2.8mm) |
|

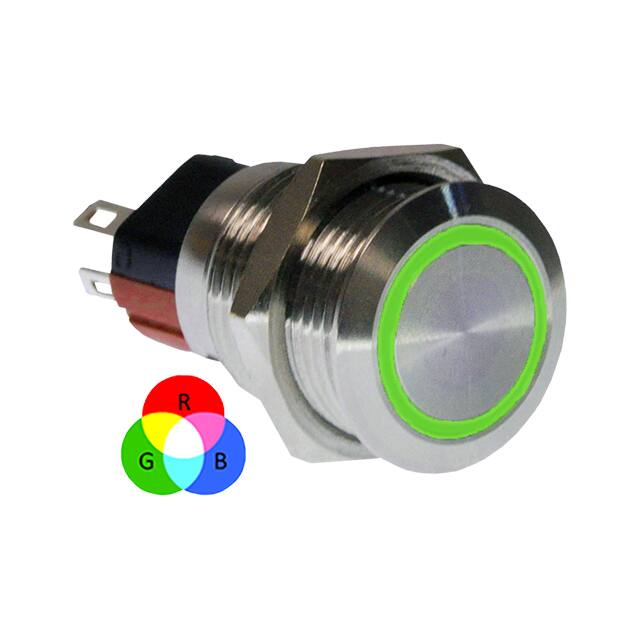

PVA3H230SS3R1SWITCH PB SPST 2A 36V |
181 | - |
|
数据表 |
PVA3 | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | On-On | 2A (DC) | - | Circular - 16.00mm Dia | 36 V | Round, Button | SPDT | No Marking | Silver | Stainless Steel | LED, Blue/Green/Red | -25°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 1.8, 2.8 VDC | Solder Lug |
|
|
3MS-WSP7-P1-B1-M2QESWITCH |
0 | - |
|
数据表 |
3S | Bulk | Active | Panel Mount, Rear | Standard | On-Mom | 1A (AC/DC) | 125 V | - | 28 V | Plunger for Cap | SPDT | - | Black | - | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
1977738-1SWITCH PUSHBUTTON SPDT 60MA |
0 | - |
|
数据表 |
Blue | Bulk | Obsolete | Panel Mount, Rear | Standard | On-On | 60mA (DC) | - | - | 30 V | Plunger for Cap | SPDT | No Marking | - | Tactile/Audible Feedback | - | -20°C ~ 80°C | - | - | PC Pin |
|
K12PLWH15NLV302SWITCH PUSH SPST-NO 0.1A 30V |
0 | - |
|
数据表 |
K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | Off-Mom | 100mA (DC) | - | - | 30 V | Round, Button | SPST-NO | No Marking | Black | Tactile Feedback | LED, White | -40°C ~ 85°C | IP40 | - | PC Pin |
|
|
LB15WGG01-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 | - |
|
数据表 |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | Circular - 22.00mm Dia | 28 V | Round, Button | SPDT | No Marking | Clear (Green Filter/Diffuser) | - | LED, Green | -25°C ~ 50°C | IP65 - Dust Tight, Water Resistant | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
XA2EA51PB,FLUSH,YELLOW,1NO |
0 | - |
|
数据表 |
Harmony XA2 | Box | Active | Panel Mount, Front | Standard | Off-On | 3A (AC), 270mA (DC) | 240 V | Circular - 22.00mm Dia | 250 V | Round, Button, Flush | SPST-NO | - | Yellow | - | - | -40°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
|
1825100-1SWITCH PUSH SPST-NO 0.4VA 20V |
0 | - |
|
数据表 |
TP | Bulk | Active | Panel Mount, Rear | Standard | Off-Mom | 0.4VA (AC/DC) | 20 V | Circular - 6.35mm Dia | 20 V | Round, Plunger | SPST-NO | No Marking | Black | - | - | -30°C ~ 65°C | - | - | PC Pin |
|
|
XA2EA11PB,FLUSH,WHITE,1NO |
0 | - |
|
数据表 |
Harmony XA2 | Box | Active | Panel Mount, Front | Standard | Off-On | 3A (AC), 270mA (DC) | 240 V | Circular - 22.50mm Dia | 250 V | Round, Button, Flush | SPST-NO | - | White | - | - | -25°C ~ 55°C | IP65 - Dust Tight, Water Resistant | - | Screw Terminal |
|
IQC3S422SWITCH PUSH SPST-NO 0.2A 48V |
0 | - |
|
数据表 |
IQ | Bulk | Active | Panel Mount, Snap-In | Standard | Off-Mom | 200mA (DC) | - | Circular - 15.90mm Dia | 48 V | Square, Button | SPST-NO | No Marking | Black | Epoxy Sealed Terminals | - | -40°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | Solder Lug |
