按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15SKG035F-JJSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear | Process Sealed | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | PC Pin |
|
|
UB15SKG035C-JBSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Process Sealed | LED, Red | -25°C ~ 50°C | - | 1.85 VDC | PC Pin |
|

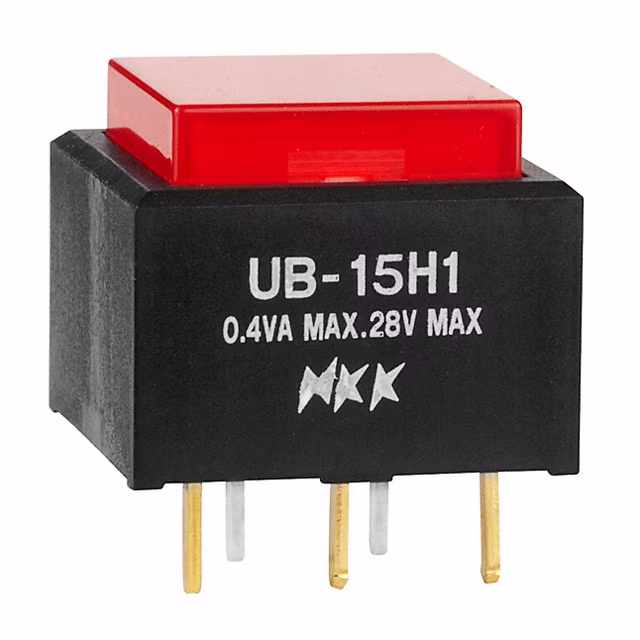

UB15SKG035C-CJSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Red | Process Sealed | LED, Red | -25°C ~ 50°C | - | 1.85 VDC | PC Pin |
|
MB2061SS1W03/U-BCSWITCH PUSHBUTTON DPDT 6A 125V |
148 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | DPDT | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
MB2011SB3G03-DASWITCH PUSH SPDT 0.4VA 28V |
1 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | Circular - 12.50mm Dia | 28 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | PC Pin |
|
SA-1B-DC-3-RLSWITCH PB ENGINE START RED |
673 | - |
|
数据表 |
SA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | Off-Mom | 50A (DC) | - | Circular - 22.00mm Dia | 12 V | Round, Button | SPST-NO | No Marking | Red | - | LED, Red | -25°C ~ 85°C | - | 12 VDC | Screw Terminal |
|
K16-382-B-24VDC16MM SWITCH PUSH SQARE DPDT BLUE |
173 | - |
|
数据表 |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-On | 3A (AC/DC) | 250 V | Circular - 16.00mm Dia | 110 V | Square, Button | DPDT | - | Blue | - | LED, Blue | -25°C ~ 55°C | IP65 - Dust Tight, Water Resistant | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) |
|
|
UB15KKW015F-JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear (White Filter/Diffuser) | Photo Interrupter | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | Solder Lug |
|
|
UB15KKW015F-JJSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Clear | Photo Interrupter | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | Solder Lug |
|

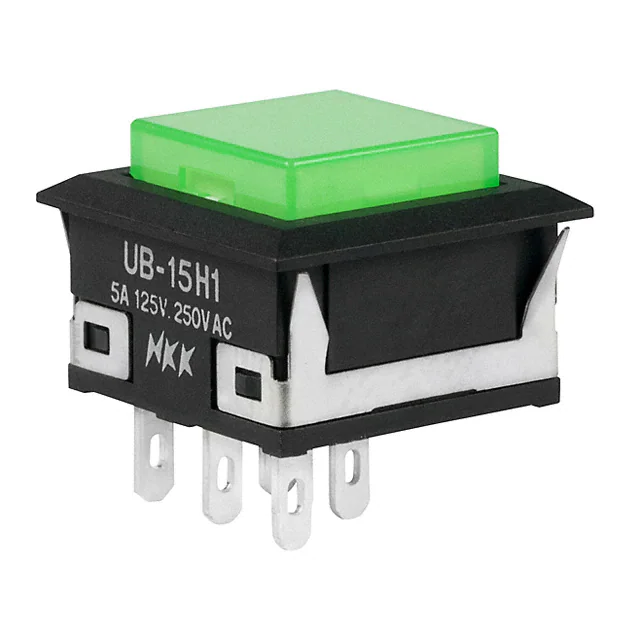

UB15KKW015F-FBSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Green (White Filter/Diffuser) | Photo Interrupter | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | Solder Lug |
|
|
UB15KKW015F-FJSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | Square - 16.20mm x 16.20mm | 30 V | Square, Button | SPDT | No Marking | Green | Photo Interrupter | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | Solder Lug |
|
M22FP-MSF01-E30-GFLAT PB-MOM-1B-LED-GREEN |
750 | - |
|
数据表 |
M22 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | - | 6A (AC), 3A (DC) | 230 V | Circular - 22.30mm Dia | 24 V | Round, Button, Flush | SPST | No Marking | Green | - | LED, Green | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | 12 ~ 30 VAC/DC | Screw Terminal |
|
|
MB2011SD3W01-BBSWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
|
PVA6RP24141SWITCH PB SPST-NO 2A 36V |
407 | - |
|
数据表 |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | Off-Mom | 2A (DC) | - | Circular - 16.00mm Dia | 36 V | Round, Button | SPST-NO | - | Black | - | LED, Blue | -20°C ~ 70°C | IP67 - Dust Tight, Waterproof | 2.8 VDC | Solder Lug |
|
|
UB15SKW035F-FBLOW PROFILE PUSHBUTTON/ILLUMINAT |
4 | - |
|
数据表 |
UB | Bulk | Active | Through Hole | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | - | 30 V | Square, Button | SPDT | No Marking | Green (White Filter/Diffuser) | Process Sealed | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | PC Pin |
|

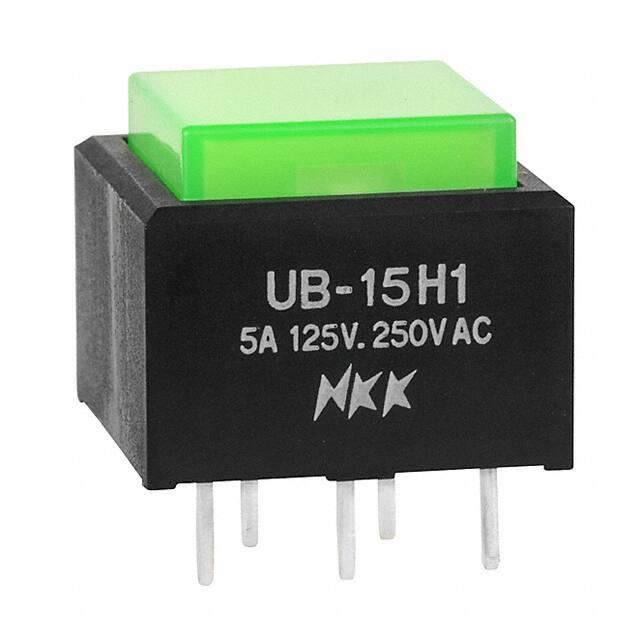

UB15SKW035F-FJSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | - | 30 V | Square, Button | SPDT | No Marking | Green | Process Sealed | LED, Green | -25°C ~ 50°C | - | 2.1 VDC | PC Pin |
|
|
UB15SKW035D-DDSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | - | 30 V | Square, Button | SPDT | No Marking | Amber | Process Sealed | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|
|
UB15SKW035D-DJSWITCH PUSHBUTTON SPDT 5A 125V |
0 | - |
|
数据表 |
UB | Bulk | Active | Through Hole | Standard, Illuminated | On-Mom | 5A (AC/DC) | 125 V | - | 30 V | Square, Button | SPDT | No Marking | Amber | Process Sealed | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|

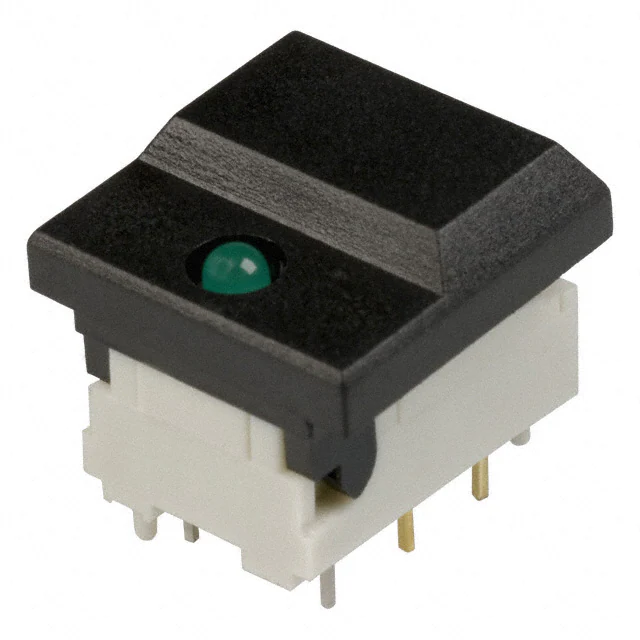

SETL BK GN 7.62 AU EESWITCH PUSH SPDT 0.01A 24V |
106 | - |
|
数据表 |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | On-On | 10mA (DC) | - | - | 24 V | Square, Button | SPDT | No Marking | Black | - | LED, Green | -25°C ~ 85°C | - | - | PC Pin |
|
W22DPB-ERFG-01/1022MM DPB EXTRD-B FLSHGN-T NCNO |
192 | - |
|
数据表 |
22 | Bag | Active | Panel Mount, Rear | Standard | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 72 V | Circular - 22.50mm Dia | 28 V | Round, Button, Dual | DPST-NO/NC | No Marking | Red, Green | - | - | -40°C ~ 55°C | IP66 - Dust Tight, Water Resistant | - | Screw Terminal |
