按钮开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 面板开孔尺寸 | 电压额定值 - 直流 | 执行器类型 | 电路 | 执行器标记 | 颜色 - 执行器/帽 | 特性 | 照明类型，颜色 | 工作温度 | 防护等级 | 照明电压（额定值） | 端接样式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2011G-A-J41ASWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 | - |
|
数据表 |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | Rectangular - 15.00mm x 12.50mm | 28 V | Square, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -10°C ~ 70°C | - | - | Solder Lug |
|
MB2011SB1W03SWITCH PUSHBUTTON SPDT 6A 125V |
129 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Plunger for Cap | SPDT | No Marking | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|

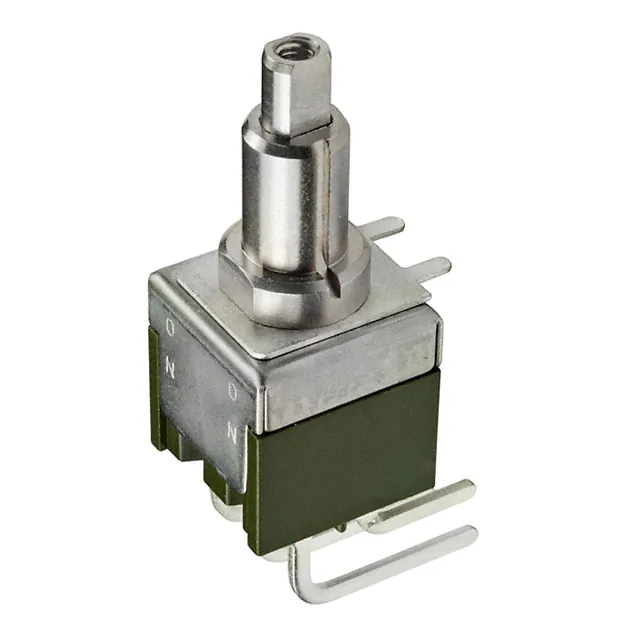

MB2085SS2W30SWITCH PUSHBUTTON DPDT 6A 125V |
473 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | On-On | 6A (AC), 3A (DC) | 125 V | - | 30 V | Plunger for Cap | DPDT | No Marking | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
MB2461A2W30SWITCH PUSHBUTTON DPDT 3A 125V |
11 | - |
|
数据表 |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle | Standard | On-Mom | 3A (AC) | 125 V | - | - | Plunger for Cap | DPDT | No Marking | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
MB2011SB3W01-EASWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | Solder Lug |
|
|
UB15SKG035D-JJSWITCH PUSH SPDT 0.4VA 28V |
0 | - |
|
数据表 |
UB | Tray | Active | Through Hole | Standard, Illuminated | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Square, Button | SPDT | No Marking | Clear | Process Sealed | LED, Amber | -25°C ~ 50°C | - | 2 VDC | PC Pin |
|
|
G3B25AH-XASWITCH PUSH DPDT 0.4VA 28V |
0 | - |
|
数据表 |
G3B | Tray | Active | Surface Mount, Right Angle | Standard | On-Mom | 0.4VA (AC/DC) | 28 V | - | 28 V | Round, Button | DPDT | No Marking | Black | Process Sealed | - | -30°C ~ 85°C | - | - | Gull Wing |
|
CTD-IC591W-W/WCAPACITIVE TOUCH LED IC DISPLAY |
2,259 | - |
|
数据表 |
- | Tube | Active | Through Hole | Capacitive, Illuminated | - | - | - | - | - | Square, Button | - | No Marking | - | - | LED, White | -35°C ~ 85°C | - | 3.2 VDC | PC Pin |
|

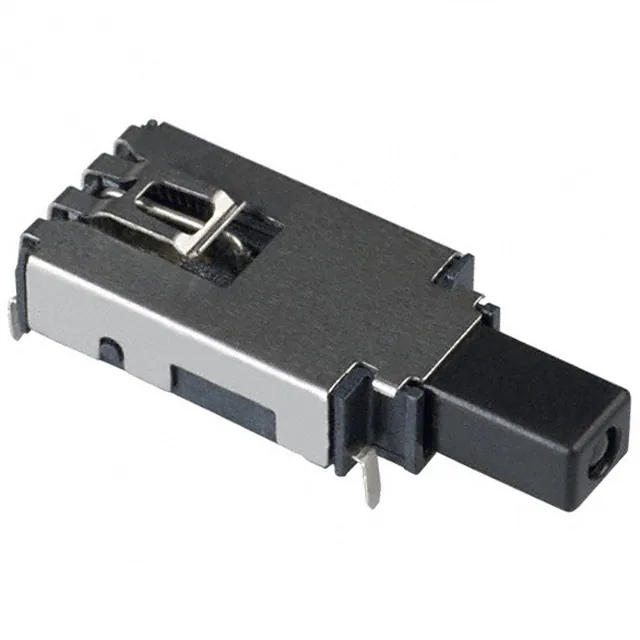

ELUMEETHQ1C12SWITCH PUSH SPDT 0.25A 50V |
157 | - |
|
数据表 |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | On-On | 250mA (DC) | - | - | 50 V | Rectangular, Button | SPDT | No Marking | Black | - | LED, White | -40°C ~ 80°C | - | 2 VDC | PC Pin |
|
|
MB2011SB1W03-CBSWITCH PUSHBUTTON SPDT 6A 125V |
2 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 12.50mm Dia | 30 V | Round, Button | SPDT | No Marking | White | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
MB2011SS4W01-BASWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|

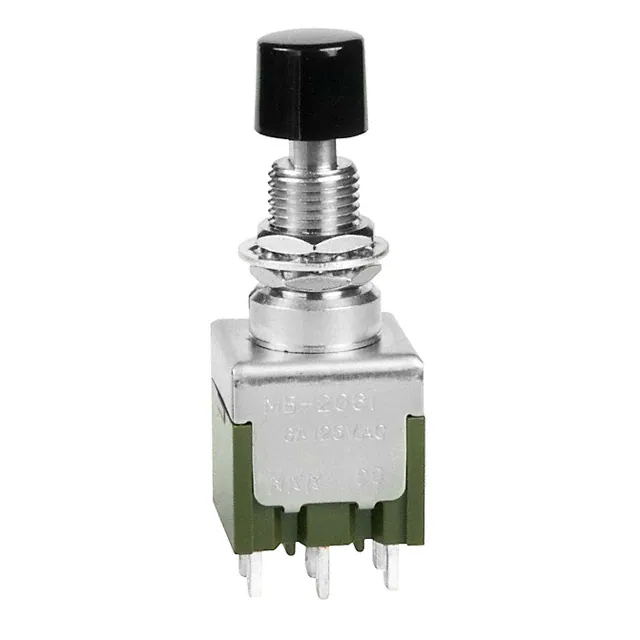

MB2061SS1W01-BASWITCH PUSHBUTTON DPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | DPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
SW19STM322SWITCH PB SOLDER TAG MOM PWR 12V |
134 | - |
|
数据表 |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | On-Mom, Off-Mom | 5A (AC) | 250 V | Circular - 19.00mm Dia | - | Round, Button, Flush | DPST-NO/NC | Power Symbol | Silver | - | LED, Green | -40°C ~ 80°C | IP65 - Dust Tight, Water Resistant | 12 VAC | Solder Lug |
|

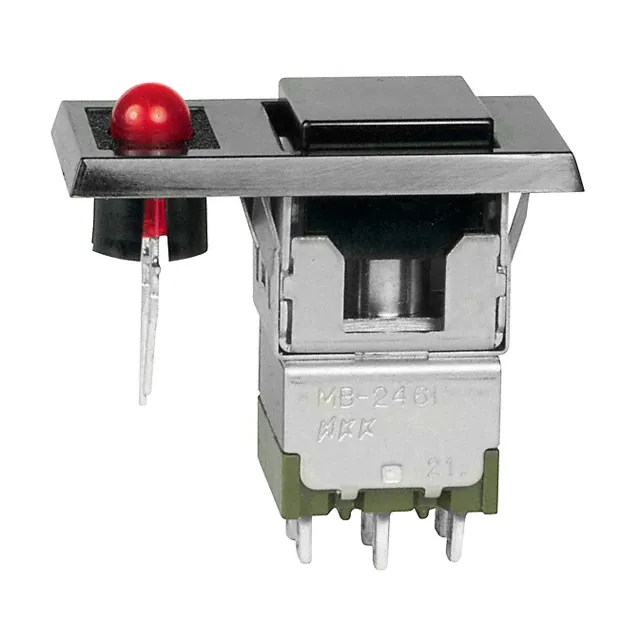

MB2461JW01-A-2A-CSWITCH PUSHBUTTON DPDT 3A 125V |
204 | - |
|
数据表 |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | On-Mom | 3A (AC) | 125 V | Rectangular - 15.00mm x 13.10mm | - | Square, Button | DPDT | No Marking | Black | Epoxy Sealed Terminals | LED, Red | -30°C ~ 85°C | - | 2.8 VDC | Solder Lug |
|
|
MB2011SS1W03-BCSWITCH PUSHBUTTON SPDT 6A 125V |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | PC Pin |
|
|
MB2011SS4W01-CAMINIATURE PUSHBUTTON/MULTI-FUNCT |
0 | - |
|
数据表 |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
MB2011SS4W01-CCMINIATURE PUSHBUTTON/MULTI-FUNCT |
0 | - |
|
数据表 |
MB2000 | Tray | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | No Marking | Red | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - | - | Solder Lug |
|
|
MB2011SS4W01-CFBUSHING MOUNT MINIATURE PUSHBUTT |
0 | - |
|
数据表 |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | On-Mom | 6A (AC), 3A (DC) | 125 V | Circular - 6.50mm Dia | 30 V | Round, Button | SPDT | - | Green | - | - | -30°C ~ 85°C | - | - | Solder Lug |
|
EB2065-A-J32ACSWITCH PUSHBUTTON SPDT 3A 125V |
158 | - |
|
数据表 |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | On-On | 3A (AC) | 125 V | Rectangular - 15.00mm x 12.50mm | - | Square, Button | SPDT | No Marking | Black | Epoxy Sealed Terminals | LED, Red | -10°C ~ 70°C | - | 2.8 VDC | Solder Lug |
|

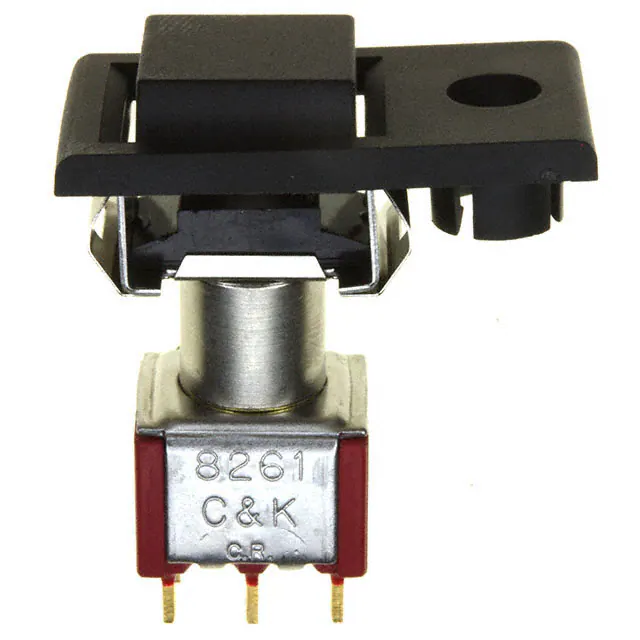

8261J82ZGE22SWITCH PUSHBUTTON DPDT 6A 120V |
157 | - |
|
数据表 |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | On-On | 6A (AC/DC) | 120 V | Rectangular - 15.24mm x 12.70mm | 28 V | Square, Button | DPDT | No Marking | Black | Epoxy Sealed Terminals | - | -30°C ~ 65°C | - | - | Solder Lug |
