直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMR1012S1210W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
33 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 12V | - | - | - | - | 4.5V | 833mA | 10 W | 86.5% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
JTL3048S15DC DC CONVERTER 15V 30W XP Power |
30 | - |
|
数据表 |
JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 75V | 15V | - | - | - | - | 18V | 2A | 30 W | 90% | 1.6 kV | - | -40°C ~ 75°C | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - |
|
|
JMR1012D1210W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
40 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 12V | -12V | - | - | - | 4.5V | 416mA, 416mA | 10 W | 86.5% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1024D1210W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
40 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 9V | 416mA, 416mA | 10 W | 88% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1048D1210W PCB DIP24 18-75VDC INPUT 4:1 XP Power |
40 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 75V | 12V | -12V | - | - | - | 18V | 416mA, 416mA | 10 W | 88% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1012D1510W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
39 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 15V | -15V | - | - | - | 4.5V | 333mA, 333mA | 10 W | 87% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1024D1510W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
35 | - |
|
数据表 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 333mA, 333mA | 10 W | 89% | 5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
ISH1515A-TRDC DC CONVERTER 15V 2W XP Power |
0 | - |
|
数据表 |
ISH (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 16.5V | 15V | - | - | - | - | 13.5V | 133mA | 2 W | 83% | 1.5 kV | - | -40°C ~ 105°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | 61000 |
|
|
ISH1515ADC DC CONVERTER 15V 2W XP Power |
0 | - |
|
数据表 |
ISH (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 16.5V | 15V | - | - | - | - | 13.5V | 133mA | 2 W | 83% | 1.5 kV | - | -40°C ~ 105°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | 61000 |
|

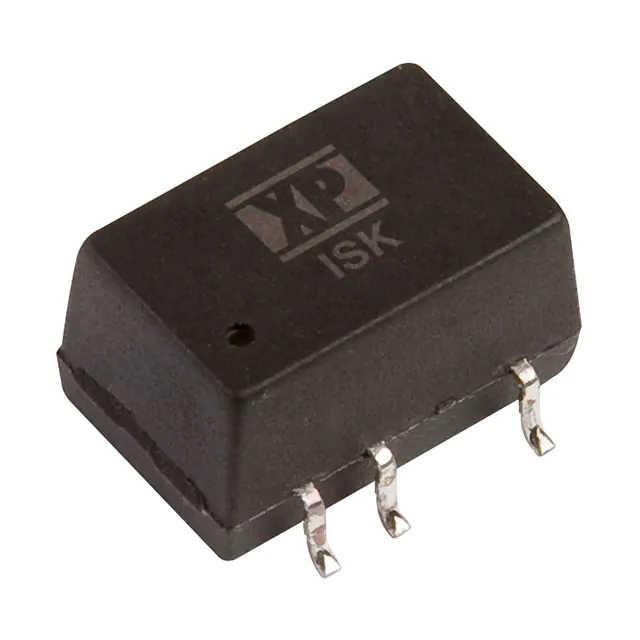

ISK1212ADC DC CONVERTER 12V 250MW XP Power |
0 | - |
|
数据表 |
ISK (0.25W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 21mA | 250 mW | 79% | 1.5 kV | - | -40°C ~ 105°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | - |
